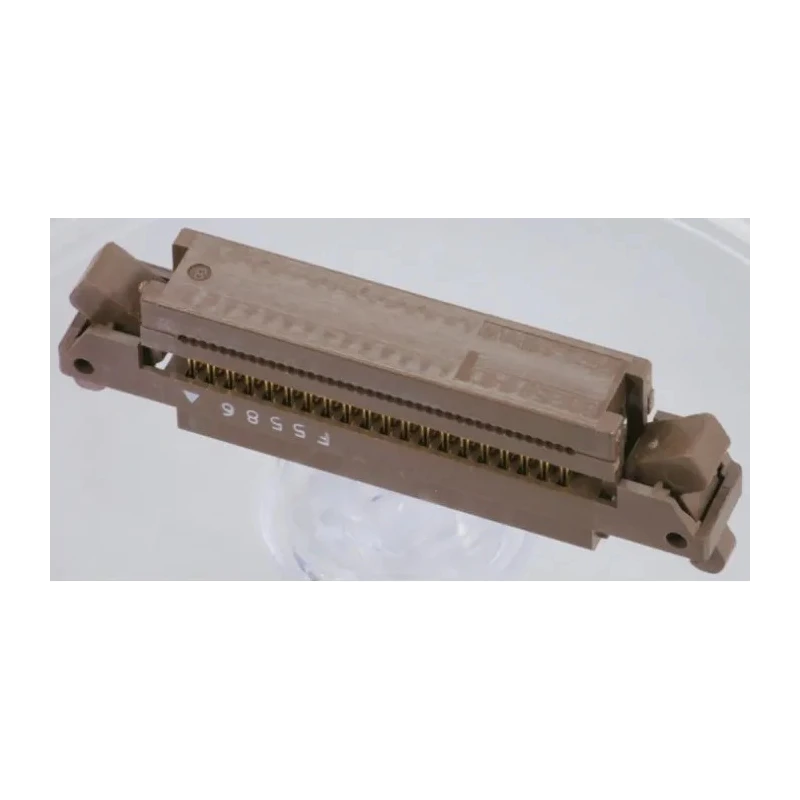

KEL Corporation 8925E Series Right Angle Cable PCB Socket 50-Contact 2 Row 1.27 mm Pitch 300V 500mA IDC 8925E-050-179-F

KEL Corporation 8925E-050-179-F right angle cable PCB socket is a highly reliable 50-contact, 2-row wire-to-board connector featuring a 1.27 mm pitch. Designed specifically for use with 0.635 mm pitch single flat ribbon cable, this IDC socket connector offers a low profile form factor, making it ideal for electronic components and PCB assemblies where space is limited.

The socket features IDC spring contacts, engineered to provide low insertion and withdrawal force while ensuring a secure and robust electrical connection. The built-in eject lock mechanism enhances the user experience by enabling easy single-handed insertion and release while maintaining a secure mating with the corresponding PCB header.

The housing is made from glass filled nylon which provides excellent mechanical strength and resistance to environmental stress. An integrated strain relief offers additional cable support and protection, increasing the longevity and reliability of the cable assembly.

Electrical specifications include a maximum voltage rating of 300V and current of 500mA, suitable for many industrial and electronic applications. The contacts are crafted from copper and plated with gold over nickel, optimizing conductivity and resistance to wear and corrosion. The connector orientation is right angle, facilitating flexible PCB design and cable routing.

This connector series operates within a temperature range from -55°C to 85°C, making it appropriate for use in harsh industrial, commercial, or electronic environments.

These connectors can be used effectively in daisy chain cable configurations and mate with the 8931E Series PCB headers, providing modularity and extendibility for complex wiring systems.

Low profile design. IDC spring contacts for reliable electrical connection. Eject lock mechanism for secure mating and easy release. Strain relief for additional cable support. Rated at 300V voltage and 500mA current. Glass filled nylon housing for strength and durability.

Gold over nickel plated copper contacts for corrosion resistance. Right angle orientation for PCB layout flexibility. Temperature range from -55°C to 85°C.

Ideal for industrial, electronic, manufacturing, and telecommunications applications requiring dependable PCB cable connections. Explore more PCB Sockets and connectors at EnvMart for your project needs.
