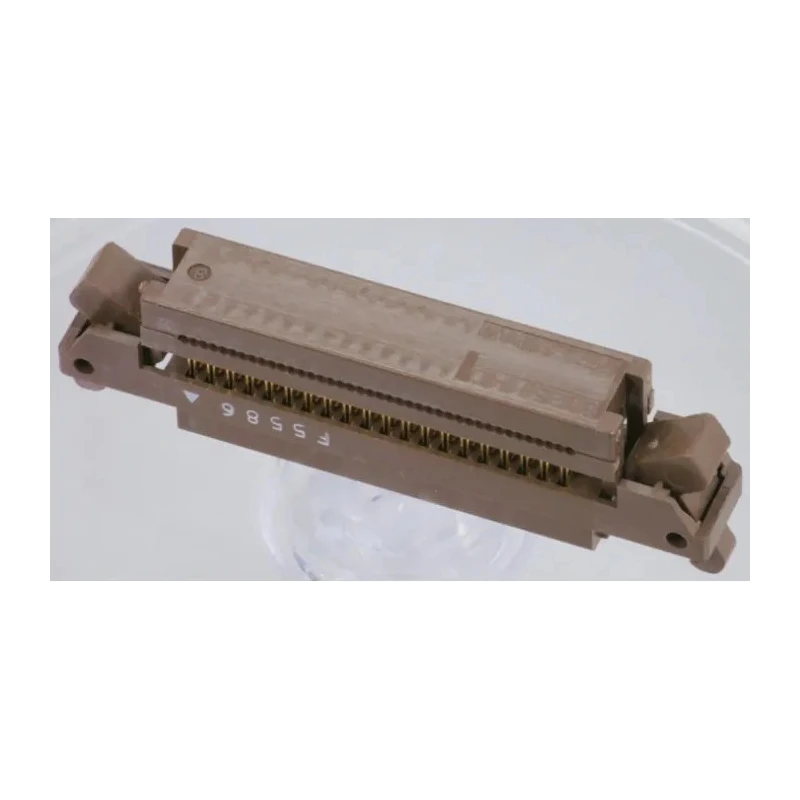

KEL Corporation 8925E Series Right Angle Cable PCB Socket, 60-Contact, 2 Row, 1.27 mm Pitch 8925E-060-179-F
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 300V |
| Brand | KEL Corporation |
| Orientation | Right Angle |
| Current | 500mA |
| Model | 8925E-060-179-F |
| Mount Type | Cable |
| Housing Material | Glass Filled Nylon |
| Contact Material | Copper |
| Series | 8925E |
| Termination Type | IDT |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The low profile design ensures minimal space usage on PCBs.
- IDC spring contacts provide a secure and reliable electrical connection.
- An eject lock mechanism enables secure mating and easy insertion and removal.
- Strain relief offers additional cable protection and support.
- Capable of withstanding operating temperatures from -55°C to 85°C.
- Gold over nickel contact plating enhances corrosion resistance and conductivity.
- Rated for 300 V and 500 mA electrical performance.
- Constructed with glass filled nylon housing for durability.
Product Description
KEL Corporation 8925E-060-179-F Right Angle Cable PCB Socket is a 60-contact, 2-row wire-to-board connector with a 1.27 mm pitch, designed for use with 0.635 mm pitch single flat ribbon cables. It incorporates IDC spring contacts with a spring design that ensures reliable electrical connections and offers low insertion and withdrawal force for ease of assembly.
This connector features a glass filled nylon housing with an eject lock mechanism providing secure mating with compatible connectors and allowing single-handed insertion and release. The included strain relief protects and supports the cable, enhancing the durability of cable assemblies.
Designed for electrical applications that require right angle cable orientation, this connector operates safely within a temperature range of -55°C to 85°C and supports 300 V and 500 mA current ratings. The female copper contacts are plated with gold over nickel to improve conductivity and resistance to corrosion.
The KEL 8925E series connectors are ideal for creating daisy chain cable assemblies and mate with the 8931E series PCB headers, making them suitable for industrial electronics, telecommunications, instrumentation, and control equipment. This component is manufactured in Japan, ensuring high quality and performance.
The low profile design minimizes PCB space usage. IDC spring contacts provide reliable electrical connections. Eject lock mechanism secures connections and allows easy removal. Strain relief supports and protects cable assemblies.
Rated for operation between -55°C and 85°C. Gold over nickel plating resists corrosion and enhances conductivity. Designed for 300 V and 500 mA electrical ratings. Housing constructed from durable glass filled nylon. Right angle cable orientation for space-efficient cable routing.
Compatible with 8931E series PCB headers for flexible assembly design. Explore more electronic components and PCB connectors on EnvMart for your manufacturing and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEL Corporation 8925E-060-179-F connector can operate safely at a maximum temperature of 85°C.
This model is rated for a voltage of 300 V.
The 8925E-060-179-F features 60 contacts.
The pitch size of this connector is 1.27 mm.
It is constructed with a glass filled nylon housing and features female copper contacts that are plated with gold over nickel.
The KEL 8925E-060-179-F is rated for a current of 500 mA.
Yes, this connector is designed for creating daisy chain cable assemblies and mates with the 8931E series PCB headers.
This model utilizes an IDC (Insulation Displacement Connector) termination type.
The connector is designed for right angle cable orientation, allowing for space-efficient routing.
The minimum operating temperature for this model is -55°C.
This connector is suitable for industrial electronics, telecommunications, instrumentation, and control equipment.
The KEL Corporation 8925E-060-179-F is manufactured in Japan.
