Samtec SSA Series Straight Through Hole PCB Socket 32-Contact 1 Row 2.54 mm Pitch SSA-132-W-T

Free Delivery in India | Lowest Global Shipping Charges

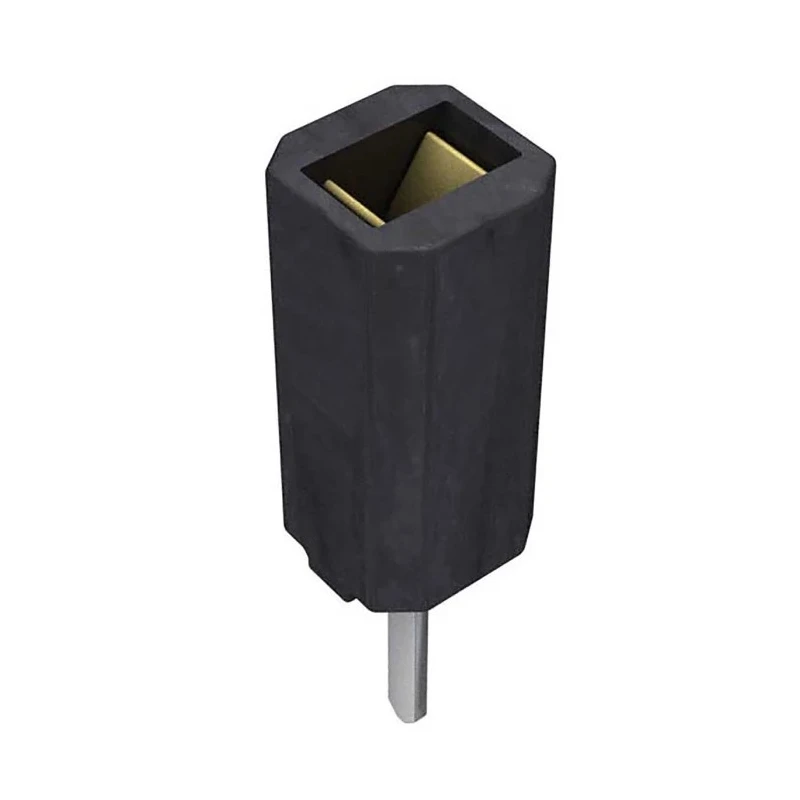

Samtec SSA Series Straight Through Hole PCB Socket 32-Contact 1 Row 2.54 mm Pitch SSA-132-W-T

Name: Samtec SSA Series Straight Through Hole PCB Socket 32-Contact 1 Row 2.54 mm Pitch SSA-132-W-T
Brand: Samtec
SKU: 401381
Price: 4.84 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	SSA-132-W-T
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Phosphor Bronze
Series	SSA
Termination Type	Through Hole
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	32
Contact Gender	Female
Connector System	Board-to-Board
Lead-free solderable	wave only
Heat deflection temp	215°C @ 264psi (1.8MPa)

Key Features

Features 32 female phosphor bronze contacts with tin plating for reliable connectivity.
Designed for board-to-board connector systems with a 2.54 mm pitch.
Constructed with black polyester housing material for durability and UL 94V-O flammability rating.
Suitable for minimum operating temperatures of -55°C and maximum temperatures up to 105°C.
Termination type is through-hole, supporting wave soldering (lead-free solderable).
Heat deflection temperature rated at 215°C under 264 psi pressure.
Offers straight orientation and single-row configuration for easy PCB implementation.
Complies with RoHS standards for environmental compliance.

Product Description

Samtec SSA-132-W-T series Straight Through Hole PCB Socket is a cost-effective, high-quality board-to-board connector designed for electronic assembly. The product features 32 female contacts arranged in a single row with a standard 2.54 mm pitch, suitable for diverse PCB applications.

The socket employs a robust black polyester housing rated to UL 94V-O flammability standards, ensuring safe operation even under elevated temperatures. Its phosphor bronze contacts with tin plating provide excellent conductivity and corrosion resistance. The termination is through-hole type, compatible with wave soldering processes and lead-free soldering requirements.

Operating temperature range spans from -55°C to 105°C, making it suitable for demanding industrial and commercial electronics environments. The heat deflection temperature is 215°C at 264 psi, ensuring dimensional stability during manufacturing and usage. This SSA series socket is RoHS compliant, supporting environmentally responsible manufacturing.

Ideal for electronics manufacturing, industrial automation, HVAC systems, and other applications requiring reliable board-to-board connections. Its straight orientation and compact single-row design facilitate efficient PCB layout and assembly.

32 female phosphor bronze contacts with tin plating for durability and conductivity. Black polyester housing providing UL 94V-O flame resistance. 2.54 mm pitch in a single-row, through-hole mount configuration. Wave solderable with lead-free solder process.

Operating temperature from -55°C to 105°C for versatile use cases. RoHS certified environmentally compliant product. Heat deflection temperature of 215°C at 264 psi ensures reliability. Suitable for electronic components, industrial controls, and PCB assemblies.
