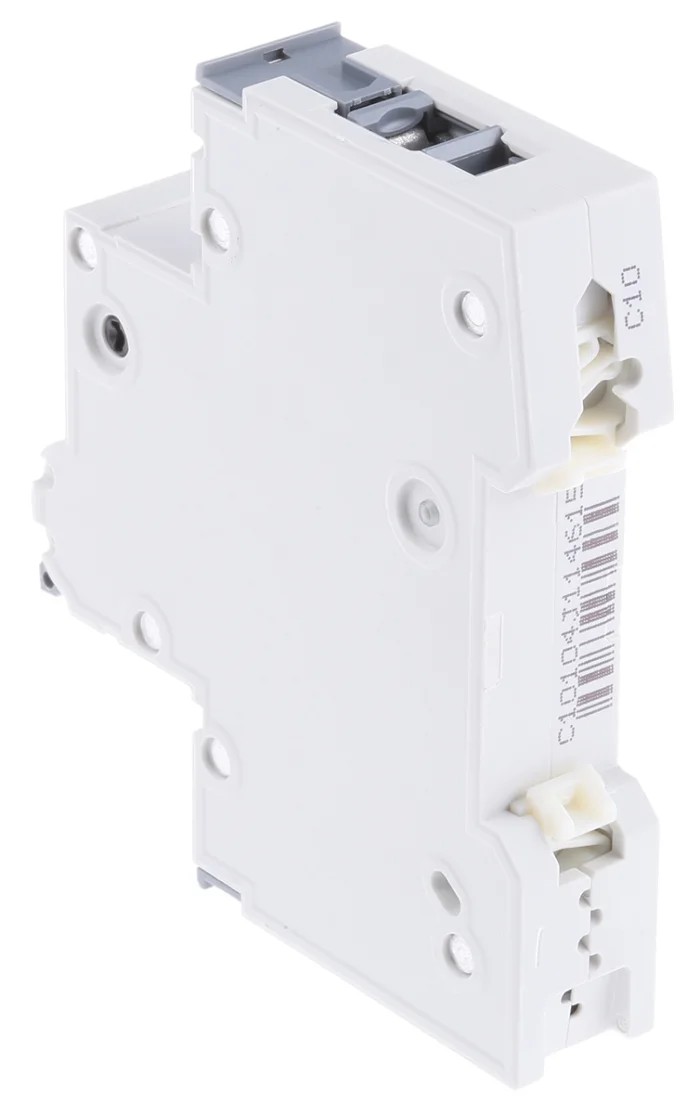

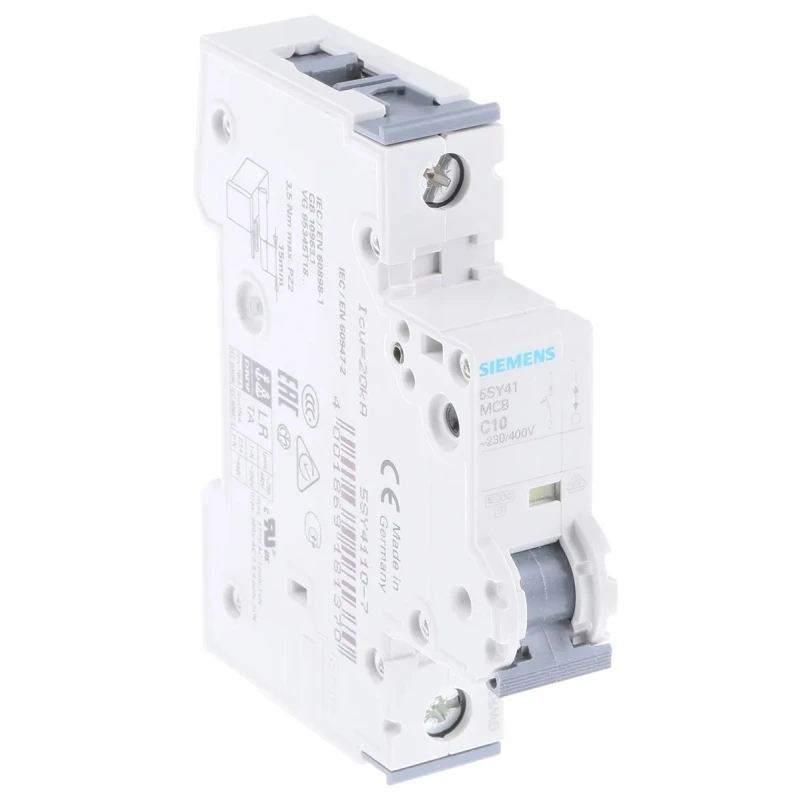

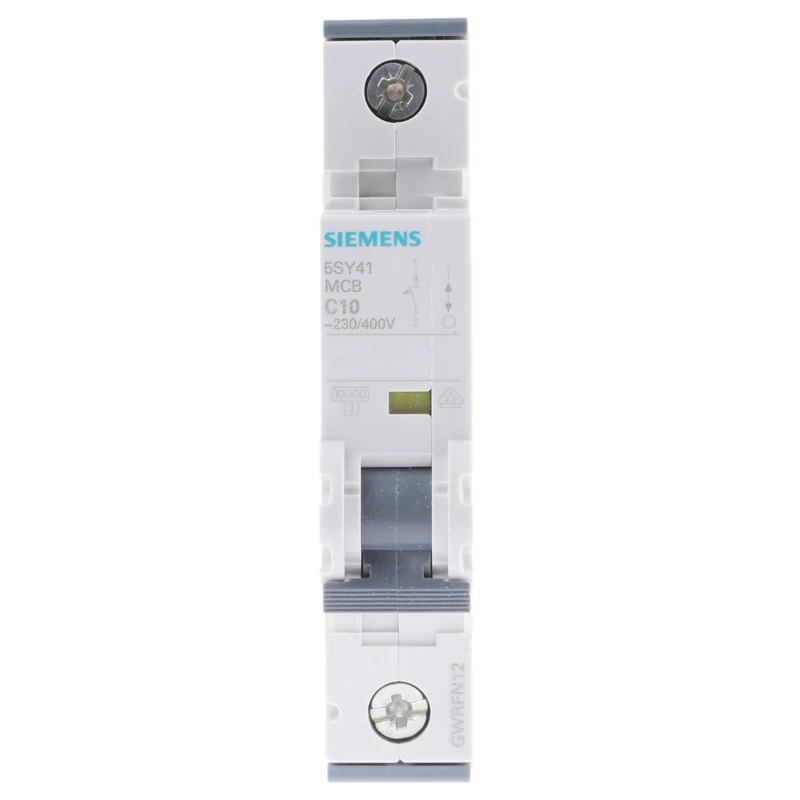

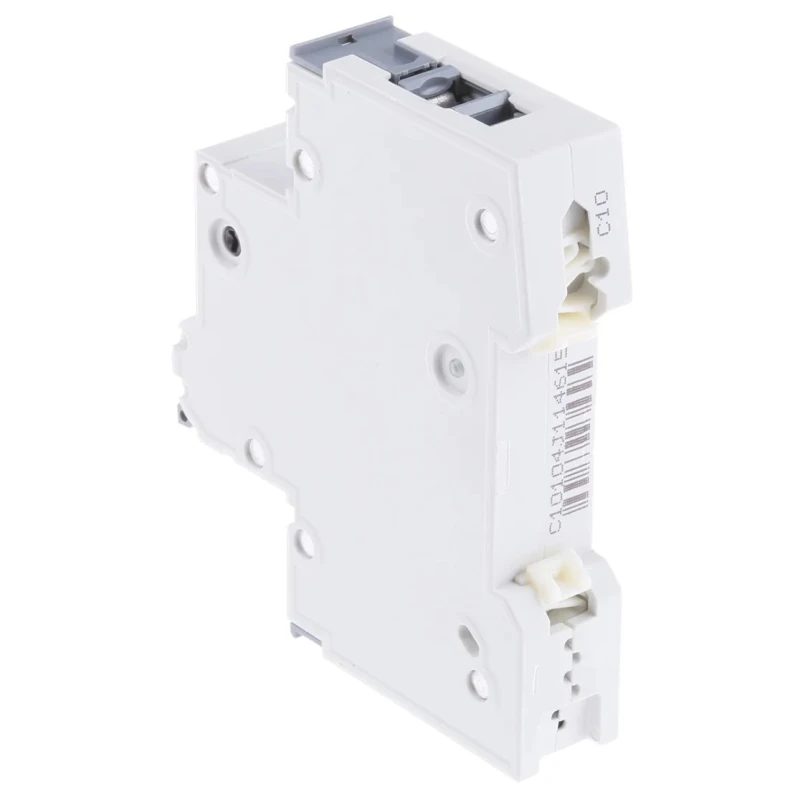

Merlin Gerin SENTRON Miniature Circuit Breaker, 1-Pole, 10A, Type C, 400V AC, 72V DC, 10 kA Breaking Capacity 5SY4110-7

Siemens 5SY4110-7 SENTRON Miniature Circuit Breaker is a high quality 1-pole protective device rated at 10A, with Type C tripping characteristic. It is engineered for industrial and commercial electrical systems operating at 400 volts AC and 72 volts DC, providing robust protection against overloads and short circuits.

Its compact form factor with dimensions 17.5mm (width) x 90mm (height) x 76mm (depth) allows convenient installation on DIN rails, optimizing space in electrical panels. The screw terminal type connection ensures secure and durable wiring.

This device features a 10 kA breaking capacity, allowing it to safely interrupt and isolate fault currents, minimizing damage to electrical infrastructure. With a Type C tripping curve, it tolerates tolerable surge currents, ideal for circuits with moderate inrush currents.

The breaker has an ingress protection rating of IP20, providing safety against contact with objects larger than 12 mm, suitable for indoor electrical environments. It operates effectively within ambient temperatures ranging from -25°C to +55°C, making it reliable under various climate conditions.

Siemens SENTRON MCB offers an energy-efficient design with minimal power loss of only 1.1 watts, helping reduce operating costs. The breaker supports an extended operational lifecycle rated at 20,000 switching cycles, ensuring dependable long-term service.

Compliant with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards, this MCB assures high safety and performance levels in electrical installations. Manufactured in Germany, it demonstrates Siemens’ commitment to quality and durability.

Operates at 400V AC and 72V DC supporting diverse electrical applications. High breaking capacity of 10 kA ensures safe interruption of fault currents. Type C tripping characteristic accommodates regulated surges. Compact DIN Rail mount design with IP20 protection.

Reliable screw terminal connections for installation durability. Extended product life with 20,000 switching cycles. Minimal power loss for efficient operation. Meets IEC, EN and UL safety standards. Constructed in Germany for quality assurance.

This Siemens Miniature Circuit Breaker is ideal for protecting industrial, commercial, and residential electrical circuits from overcurrent damage. Explore a wide range of circuit protection solutions in EnvMart’s Electronics & Electricals category for reliable and efficient system safety.
