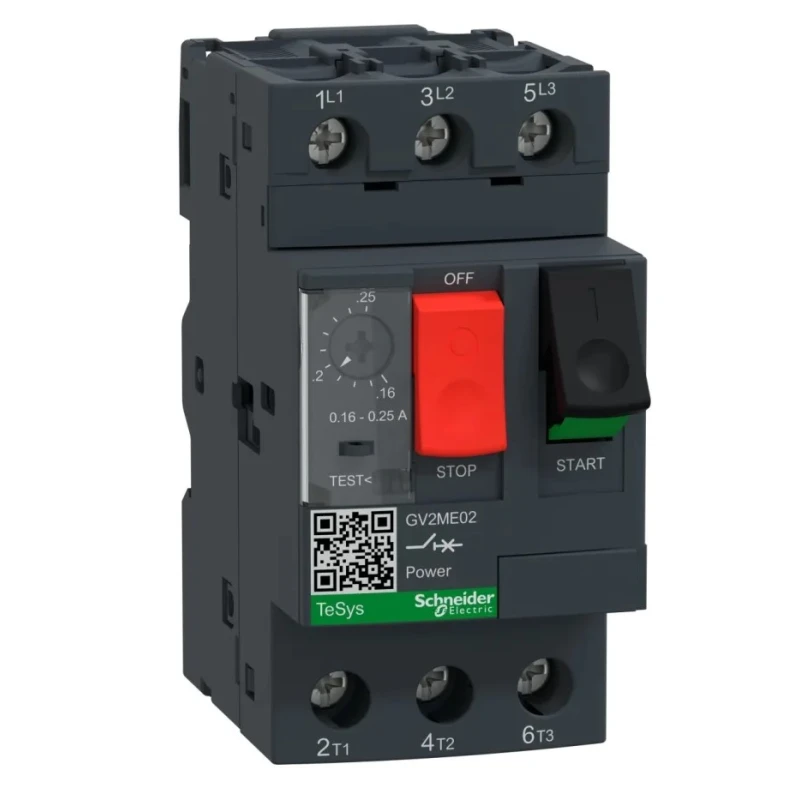

Telemecanique Motor Protection Circuit Breaker 160-250mA Thermal Magnetic 690V 3 Poles IP20 GV2ME02

Schneider Electric GV2ME02 Motor Protection Circuit Breaker is a high-quality 3-pole thermal magnetic circuit breaker designed to protect three-phase motors with a rated supply voltage of 690V and current range from 160mA to 250mA. This device is engineered to provide robust motor protection in various industrial settings such as pumps, fans, textile machinery, and agricultural equipment.

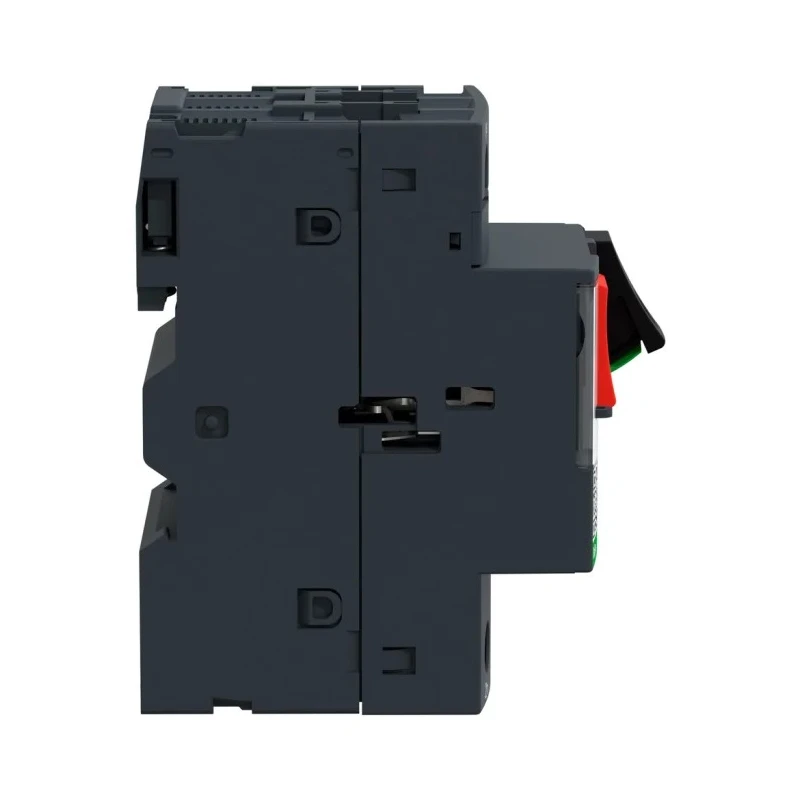

The compact dimensions of 89mm height, 45mm width, and 78.5mm depth enable the GV2ME02 to be easily integrated into crowded electrical panels. Its IP20 rated enclosure safeguards operators by preventing contact with live parts and blocks intrusion of objects larger than 12.5mm. The breaker operates reliably within a temperature range from -20°C up to 60°C, ensuring durability in demanding conditions.

Thermal magnetic sensing technology provides accurate current protection through a thermal setting range of 0.16 to 0.25A and magnetic tripping at nine times the nominal current, delivering high breaking capacity up to 100kA at 400V. Screw clamp terminals ensure secure and stable wiring connections. The front-facing start and stop push-buttons offer ease of control and quick power cutoff during emergencies, tested for over 100,000 AC-3 operating cycles for long-term reliability.

This motor protection circuit breaker meets a wide array of standards and approvals including ATEX, BV, CCC, CSA, DNV GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4-1, IECEE CB, LROS, REACH/RoHS, RINA, and UL, making it suitable for diverse global industrial applications. It is also Green Premium compliant, emphasizing environmentally responsible design and manufacturing.

Designed for disassembly, the GV2ME02 supports sustainability goals by facilitating easier repair, recycling, and resource recovery. This motor protection device is ideal for installation in sectors like industrial automation, manufacturing plants, water treatment, and heavy machinery protection.

The package does not specify additional accessories but includes the Motor Protection Circuit Breaker ready for installation. The breaker supports a supply voltage of 690V AC for high-voltage industrial systems. It features a 3-pole design optimized for 3-phase motors.

Thermal magnetic sensing provides precise circuit protection and response. Compact dimensions of 89mm (H) × 45mm (W) × 78.5mm (D) fit neatly into control panels. IP20 rated housing ensures touch-proof protection against objects larger than 12.5mm.

Operating temperature range is from -20°C to 60°C for diverse environments. Equipped with front-facing start and stop push-buttons for quick and safe operation. It is certified under multiple international standards including IEC, UL, CSA, and ATEX.

Designed for disassembly to support sustainability and easier maintenance. Explore more motor protection components and circuit breakers at EnvMart for reliable industrial automation and control solutions.
