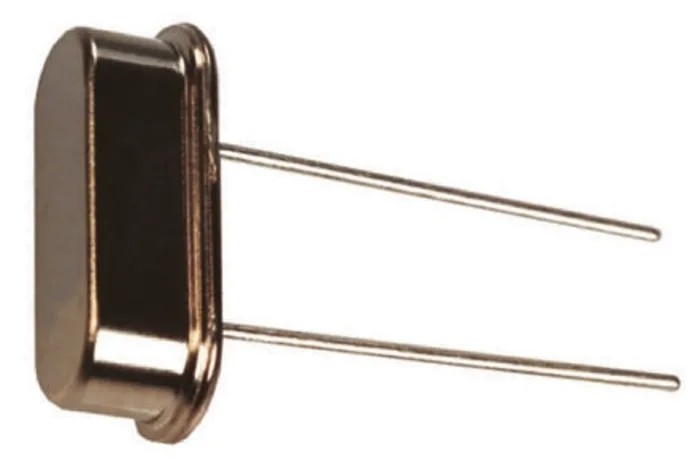

MERCURY 12 MHz Crystal ±30 ppm HC-49-US Through Hole 2-Pin 10.7 mm Length 4.3 mm Width 3.5 mm Height HUS-12.000-18-30/50/4085

MERCURY HUS-12.000-18-30/50/4085 12 MHz Crystal HC-49-US is a high precision crystal unit designed for electronic components in power and connectors applications. With a frequency of 12 MHz and a frequency tolerance of ±30 ppm, this crystal ensures reliable and stable oscillations required for delicate circuit timing operations.

This through hole mounted crystal features a 2-pin configuration with a compact package size of 10.7 mm length, 4.3 mm width, and 3.5 mm height making it suitable for PCB designs where space constraints are critical. Its load capacitance is rated at 18pF, providing optimal electrical characteristics for oscillators.

The crystal operates over a wide temperature range from -40°C to 85°C with a series resistance of 40 ohms, maintaining signal integrity and longevity under varying environmental conditions. RoHS compliance guarantees that this component meets stringent environmental and safety regulations.

Commonly used in industrial, laboratory, manufacturing, and electronic control systems, this crystal provides accurate frequency references vital for communication devices, measurement instruments, and timing circuits.

This crystal unit has a standard frequency of 12 MHz for stable oscillator function. Load capacitance of 18pF ensures consistent performance in electronic circuits. HC-49-US package provides mechanical protection and ease of installation.

Temperature range from -40°C to 85°C supports diverse operating environments. Series resistance of 40Ω contributes to signal quality and efficiency. Through hole mount type ensures secure PCB placement and reliability. 2-pin configuration simplifies connection in oscillator assemblies.
