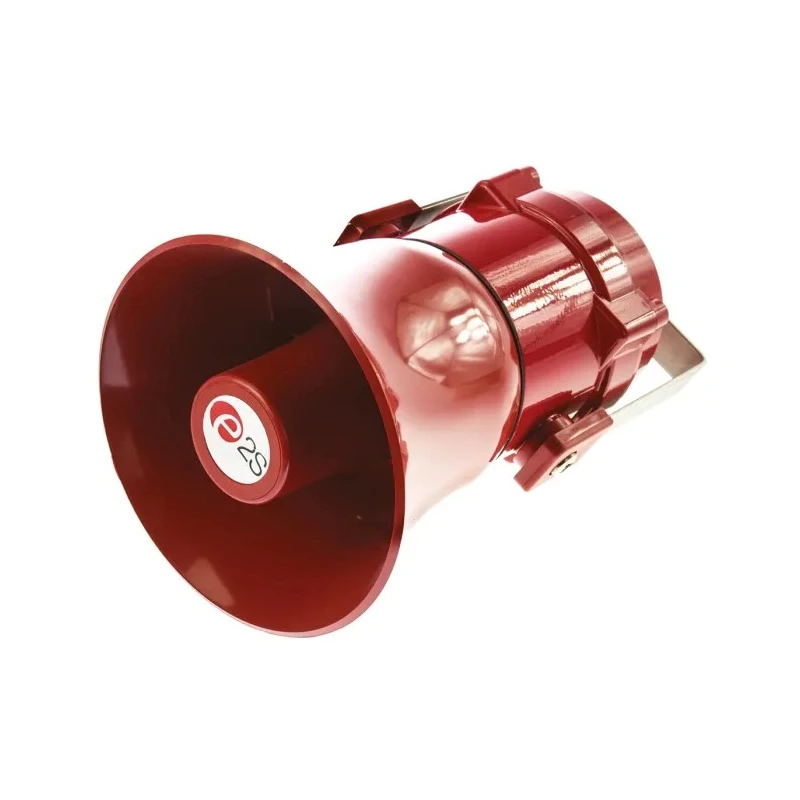

e2s BEXS110 Series Electronic Sounder Surface 230V AC 117 dB Multi-Tone LM6 Marine Grade Aluminium BEXS110DFAC115AB1A1R
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 181mm |
| Brand | e2s |
| Model | BEXS110DFAC115AB1A1R |
| IP Rating | IP67 |
| Mount Type | Surface |
| Housing Material | Marine Grade Aluminium |
| Series | BEXS110 |
| Maximum Operating Temperature | 70°C |
| Current Type | AC |
| Current consumption | 110A |
| Minimum Operating Temperature | -50°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | EAC, CE, NF, VdS |
| Maximum Supply Voltage | 230V ac |
| Housing Colour | Red |
| Tone Type | Multi-Tone |
| Minimum Sound Level | 72dB |
| Sound Level at 1m | 117dB |
| Maximum Sound Level | 110dB |
| Number of Tones | 32 |
| Base Length | 181mm |
| VdS certificate | G206011 |
| TR-CU Ex EAC certificate | RU C-GB.AA71.B.00109 |
| INMETRO certificate | 10-IEx-0009 |
| e2s BExBG05 Series Red Beacon 48V ac Strobe Bracket, Xenon Bulb, IP67Brand | e2s |
| CPD certificate | 0786-CPD-20225 |
| Marine Equipment Directive (MED) Certificate | MEDB00001BU |
| Hazardous area 32 tone sounder,115VacBrand | NEUTRAL |
Key Features
- Constructed with corrosion-resistant marine grade LM6 aluminium enclosure.
- Offers 32 alarm tones with 3 selectable alarm stages for versatile signaling.
- Rated for hazardous zones 1, 2, 21, and 22 suitable for industrial use.
- Rated IP67 ingress protection ensuring suitability for harsh environmental conditions.
- Operates from 230 V AC supply with a current consumption of 110 A.
- Operating temperature range from -50°C to +70°C for broad application range.
- Features stainless steel ratchet adjustable mounting bracket for 360° positioning.
- Complies with multiple certifications including ATEX, IECEx, VdS, and INMETRO.
Product Description
e2s BEXS110DFAC115AB1A1R electronic sounder surface mount is a robust signaling device designed for industrial, hazardous and harsh environment applications. This model operates on 230V AC and provides a powerful sound output of 117 dB(A) measured at 1 meter. It features 32 selectable multi-tone alarm signals, enabling customized alerts across multiple scenarios.
The enclosure is made from marine grade corrosion-proof LM6 aluminium with chromate and powder coat finish, ensuring durability and long service life in demanding industrial environments. The sounder is certified for use in hazardous zones 1, 2, 21, and 22, making it compliant with ATEX and IECEx standards essential for explosion-proof and intrinsically safe operations.

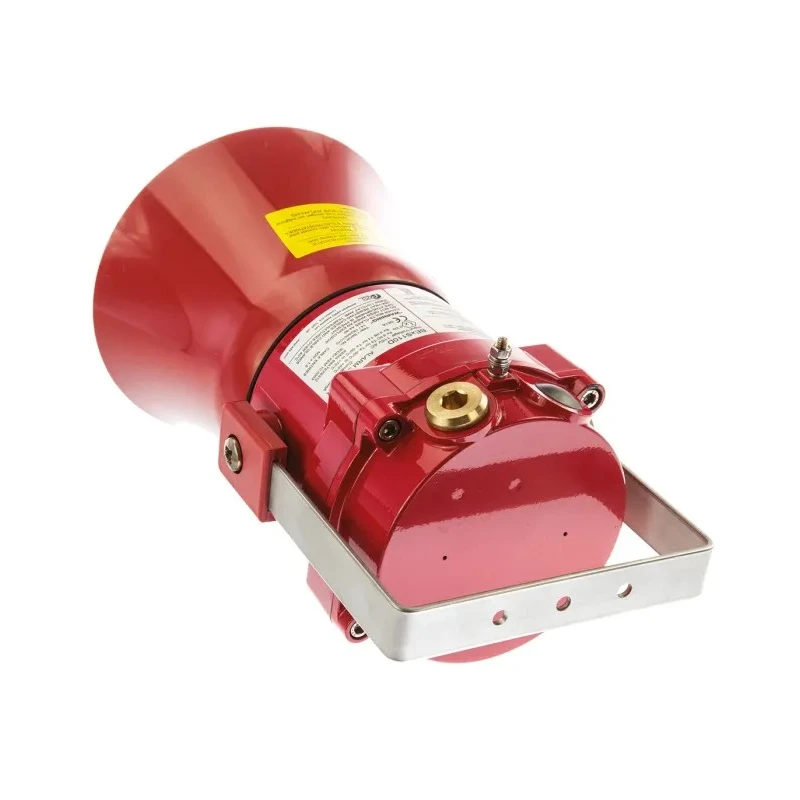

The device boasts an ingress protection rating of IP67 (dust tight and water immersion proof), suitable for outdoor and indoor industrial areas subjected to harsh weather or washdown conditions. It is equipped with a stainless steel ratchet adjustable U bracket for flexible 360-degree mounting options, ensuring optimal installation angles.
Operating temperature range from -50°C to +70°C supports use in cold and hot industrial climates. High output volume and multi-tone functionality enhance audible signaling effectiveness for safety and alerting purposes in manufacturing plants, chemical facilities, oil and gas installations and water treatment plants.
Additional certifications include VdS, EAC, CE, NF, INMETRO, Marine Equipment Directive (MED), and TR-CU Ex EAC to meet regulatory requirements globally. This sounder is ideal for comprehensive automation signalling and hazardous area alarm applications where reliability and compliance are paramount.
Corrosion resistant marine grade LM6 aluminium housing. IP67 rated ingress protection for extreme conditions. 32-tone multi-channel alarm options. Suitable for hazardous zones 1, 2, 21, 22. Stainless steel mounting bracket for secure installation.
Wide operating temperature range from -50°C to +70°C. Complies with ATEX, IECEx, VdS, EAC, CE, and INMETRO certifications. High sound level output 117 dB @ 1m. Applications include industrial automation, hazardous area signaling, and safety alarms.
Explore the range of e2s industrial signalling products for reliable and certified solutions in automation and safety systems.
Explore more products in our Electronic Sounders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a powerful sound output of 117 dB(A) measured at 1 meter.
The operating temperature range is from -50°C to +70°C, allowing it to function in extreme conditions.
This model features a surface mount design with a stainless steel ratchet adjustable U bracket for 360-degree positioning.
It offers 32 selectable multi-tone alarm signals for versatile signaling applications.
It has an IP67 ingress protection rating, making it dust tight and resistant to water immersion.
The current consumption is 110A when operating on a 230V AC supply.
It is certified for use in hazardous zones 1, 2, 21, and 22, compliant with ATEX and IECEx standards.
The housing is constructed from marine grade corrosion-resistant LM6 aluminium, ensuring durability in harsh environments.
It complies with multiple certifications including ATEX, IECEx, VdS, EAC, CE, NF, INMETRO, and Marine Equipment Directive (MED).
The diameter of the sounder is 181mm.
It is suitable for industrial automation, hazardous area signaling, and safety alarms in environments such as manufacturing plants and chemical facilities.
The housing color is red, which is typical for signaling devices to enhance visibility.
