Radiall BNC Series 75 Ω Coaxial Connector Flange Female, Straight Body Solder Termination R142412000

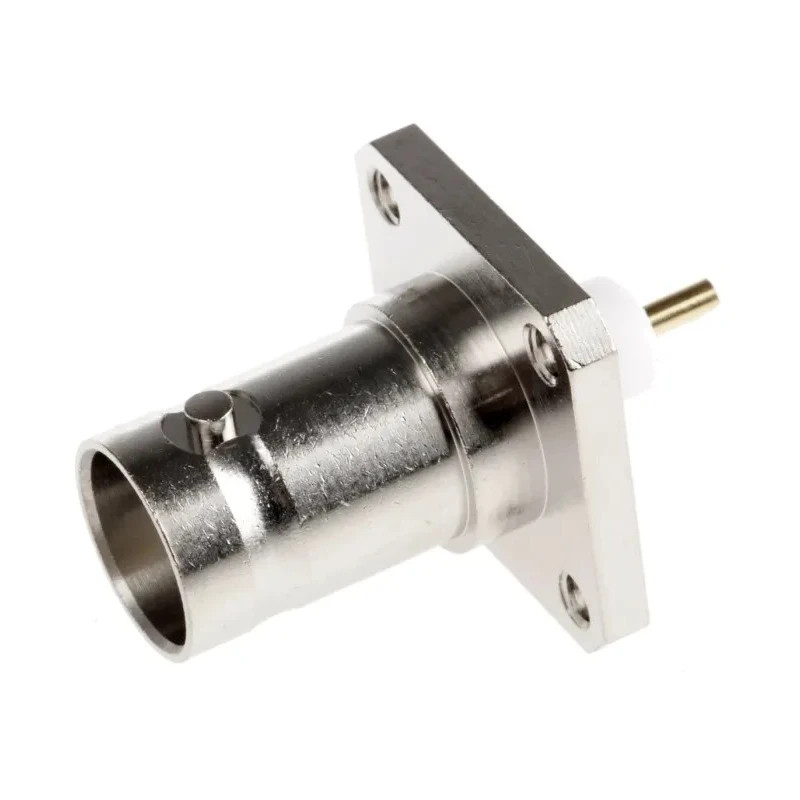

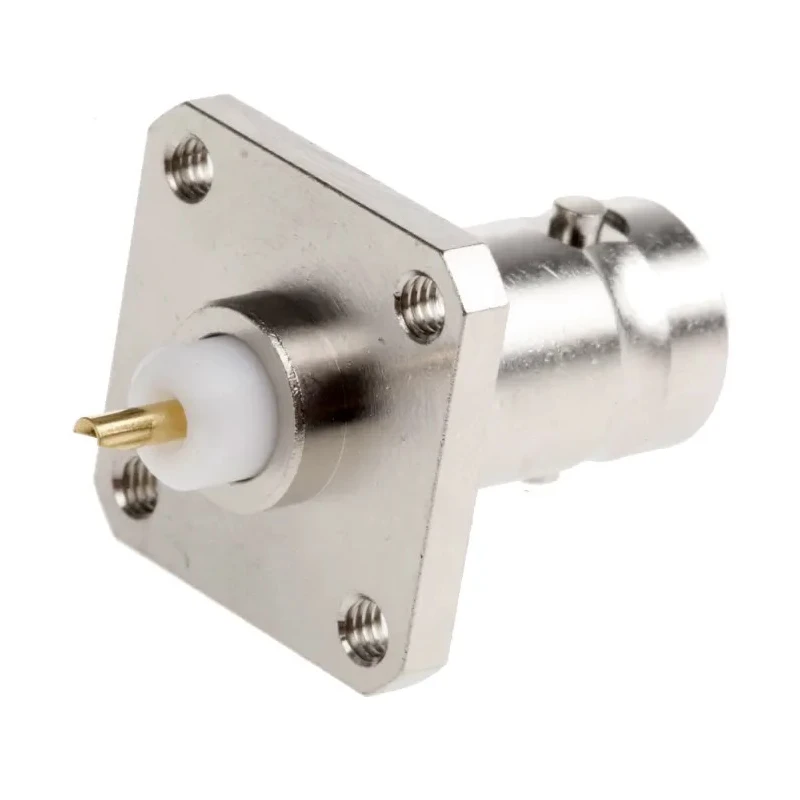

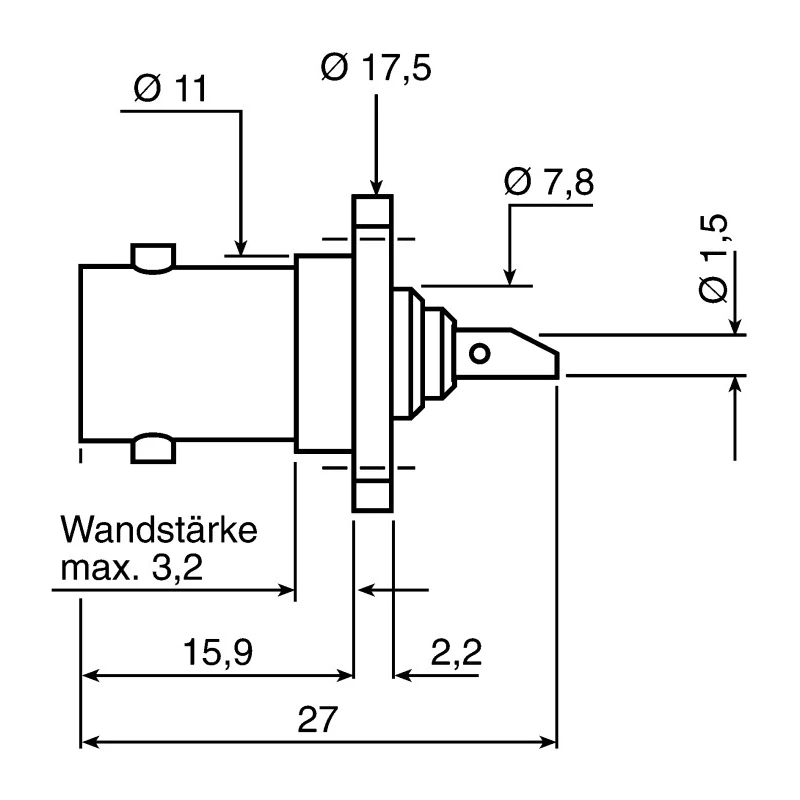

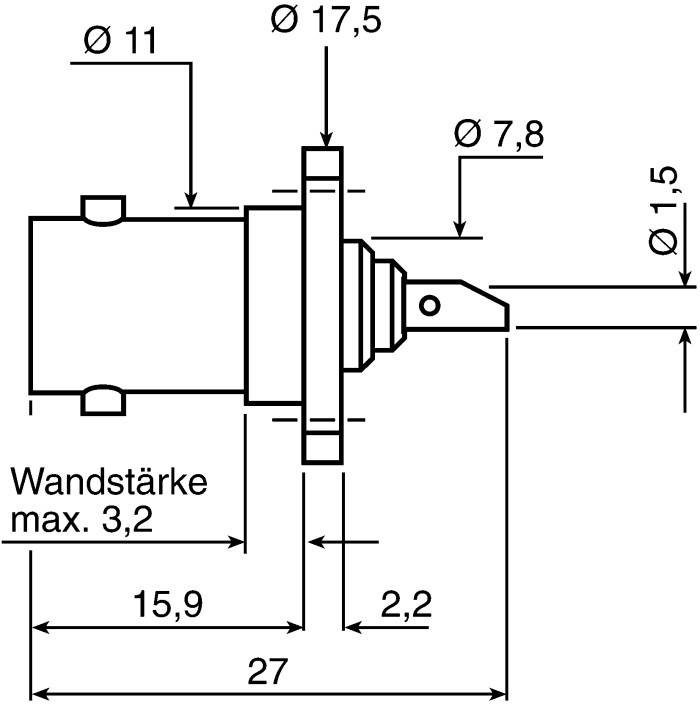

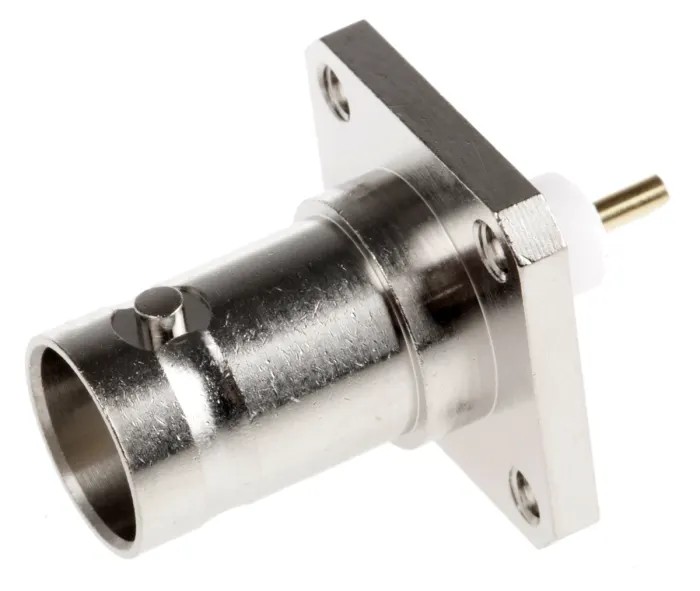

Radiall R142412000 BNC Series Coaxial Connector is a flange mount female connector with a straight body, optimized for RF coaxial applications operating at 75 Ω impedance and frequencies up to 1.5 GHz. This connector features a robust nickel-plated brass body combined with PTFE insulators for sustainability and signal stability in harsh industrial environments.

The contact material is high-quality beryllium copper, plated with gold over nickel for enhanced conductivity and corrosion resistance. Designed for easy solder termination, it provides secure connectivity for panel mount applications on bulkheads.

This BNC flange connector supports a wide operational temperature range from -65°C to 165°C, making it suitable for demanding industrial, telecommunications, and laboratory uses where temperature fluctuations occur.

The product's straight body orientation and female connector gender with normal polarity ensure compatibility with a broad range of coaxial cable assemblies and RF equipment. Its standard size and bulkhead feature facilitate straightforward integration into panels and enclosures.

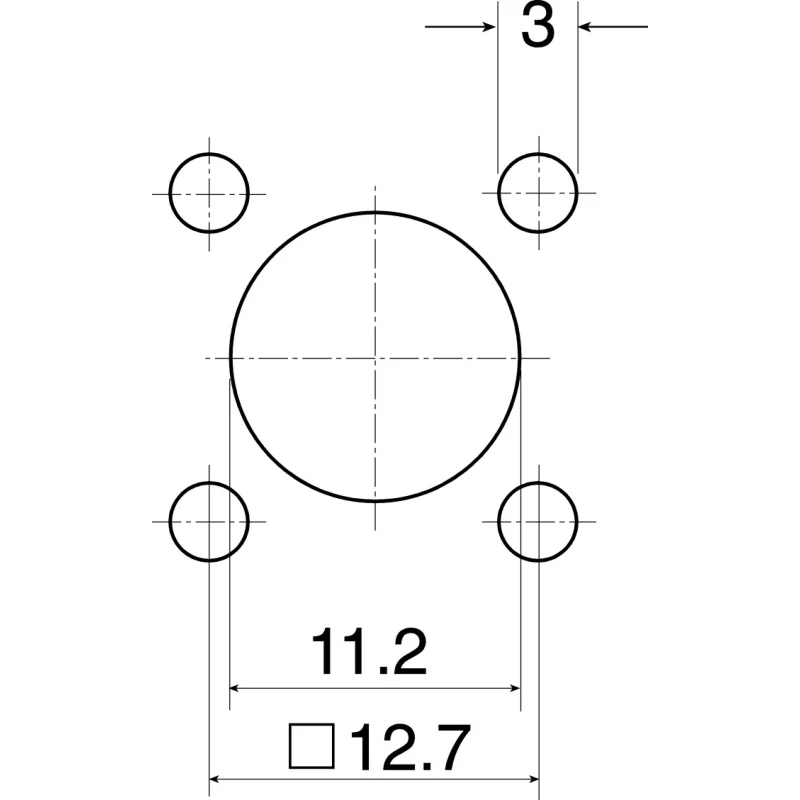

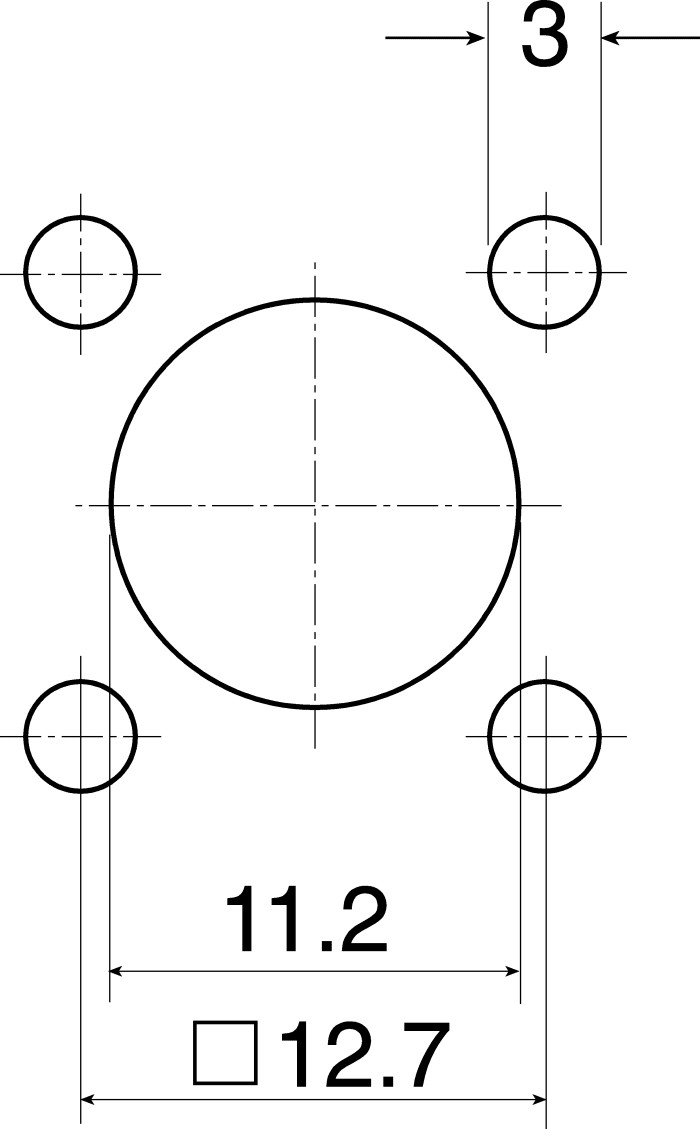

Flange mount type ensures secure bulkhead installation. Operates effectively up to 1.5 GHz frequency. Nickel-plated brass body provides durability and corrosion resistance. Beryllium copper contacts with gold over nickel plating ensure reliable conductivity.

Suitable for operating temperatures from -65°C to 165°C. Standard size with bulkhead mounting capability. Solder termination type facilitates easy assembly. Polarity is normal, female contact gender and connector gender.

Ideal for RF and coaxial applications requiring stable impedance and signal integrity.

This Radiall BNC Coaxial Connector is well-suited for use in industrial, laboratory, telecommunications, audio/video, and manufacturing environments requiring high-frequency signal integrity and robust mechanical assembly. It ensures reliable performance over wide temperature ranges and in demanding electrical systems.
