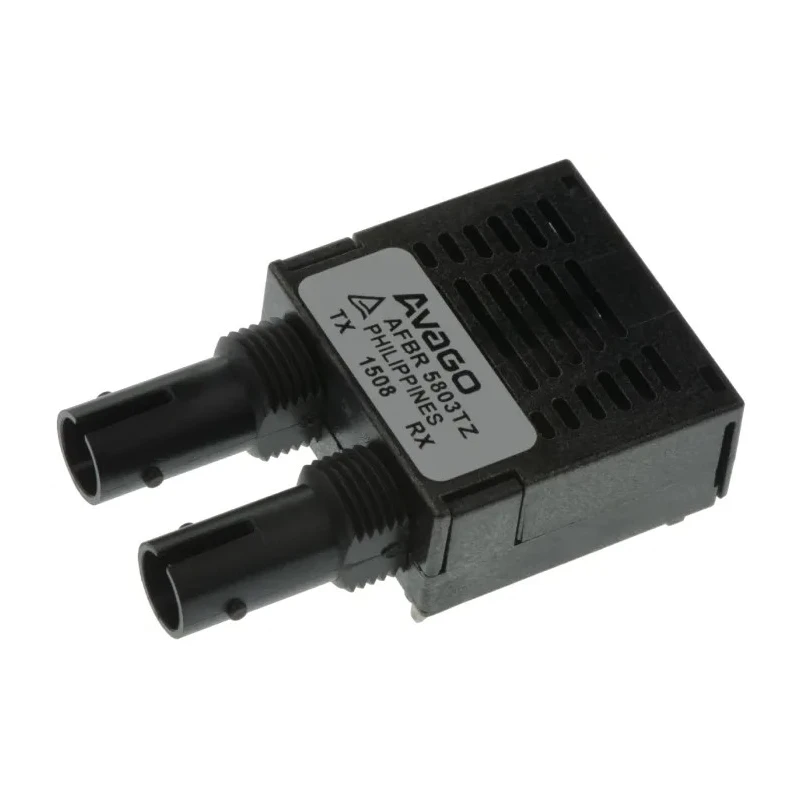

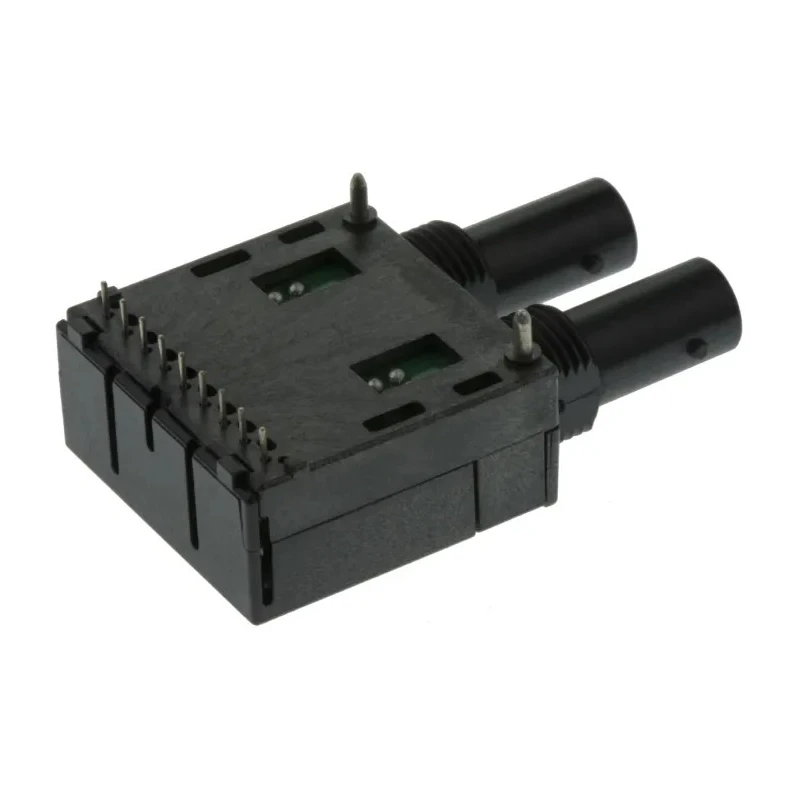

Broadcom Fibre Optic Transceiver ST Connector 100 Mbps 1380 nm 9-Pin AFBR-5803TZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 24.8mm |
| Length | 25.4mm |
| Model | AFBR-5803TZ |
| Connector Type | ST |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | AFBR-5800Z |
| Standards/Approvals | UL, RoHS |
| Number of Pins | 9 |
| Maximum Data Rate | 100Mbps |
| Output Signal Type | Analogue |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 1380nm |
| Transmitter Typical Rise Time | 1.9ns |
| Transmitter Typical Fall Time | 1.6ns |
| Receiver Jitter at Maximum Data Rate | 2.14ns |
| Transmitter Jitter at Maximum Data | 0.6ns |
Key Features
- Features a round ST connector for secure fibre optic connections.
- Designed with 9-pin through-hole mount configuration.
- Supports a maximum data rate of 100 Mbps for efficient communication.
- Includes analogue output signal type ideal for fast Ethernet applications.
- Low jitter performance enhances signal integrity and reduces transmission errors.
- Complies with UL and RoHS standards ensuring safety and environmental compliance.
- Part of the AFBR-5800Z series optimized for fibre optic communication systems.
Product Description
Broadcom AFBR-5803TZ is a high-performance fibre optic transceiver featuring an ST connector designed for fast Ethernet data transmission at 100 Mbps. With a peak sensitivity wavelength of 1380 nm, this transceiver ensures effective optical communication suitable for industrial and commercial networking systems.
Its 9-pin through-hole mount and round connector shape facilitate stable mechanical and electrical connections within fibre optic networks. The transceiver exhibits low transmitter rise and fall times of 1.9 ns and 1.6 ns respectively, along with minimal transmitter jitter of 0.6 ns and receiver jitter at maximum data rate of 2.14 ns, supporting high integrity analogue signal output.
Compact in size, measuring 25.4 mm in length, 12 mm in width, and 24.8 mm in height, the AFBR-5803TZ is optimized for integration into networking hardware where space and reliability are critical.
Round ST connector ensures reliable fibre optic interfacing. 9-pin through-hole mount for secure board installation. 100 Mbps maximum data rate supports fast Ethernet applications. Transmitter rise and fall times of 1.9 ns and 1.6 ns respectively.
Low jitter values guarantee signal quality and reliability. Compact footprint suitable for dense electronic assemblies. UL and RoHS compliant ensuring safety and environmental adherence. Part of the AFBR-5800Z series trusted for fibre optic communication.
This fibre optic transceiver is ideal for use in electronic components manufacturing, telecommunications networking, laboratory equipment, and industrial control systems requiring stable and fast optical data transmission.
Explore more products in the Fibre Optic Transceivers category at EnvMart to find comprehensive solutions for your optical networking needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Broadcom AFBR-5803TZ supports a maximum data rate of 100 Mbps, making it suitable for fast Ethernet applications.
The peak sensitivity wavelength for this transceiver is 1380 nm, which is essential for effective optical communication.
This model features a round ST connector, designed for secure fibre optic connections.
It has a 9-pin through-hole mount configuration, facilitating stable mechanical and electrical connections.
This transceiver measures 25.4 mm in length, 12 mm in width, and 24.8 mm in height, making it compact for integration into networking hardware.
The output signal type is analogue, which is ideal for fast Ethernet applications.
The transmitter has a typical rise time of 1.9 ns and a fall time of 1.6 ns, contributing to its performance in data transmission.
The receiver jitter at maximum data rate is 2.14 ns, which helps ensure signal integrity during transmission.
Yes, it complies with UL and RoHS standards, ensuring safety and environmental compliance.
This transceiver is part of the AFBR-5800Z series, optimized for fibre optic communication systems.
It is suitable for electronic components manufacturing, telecommunications networking, laboratory equipment, and industrial control systems requiring stable optical data transmission.
The country of origin for this model is India.
