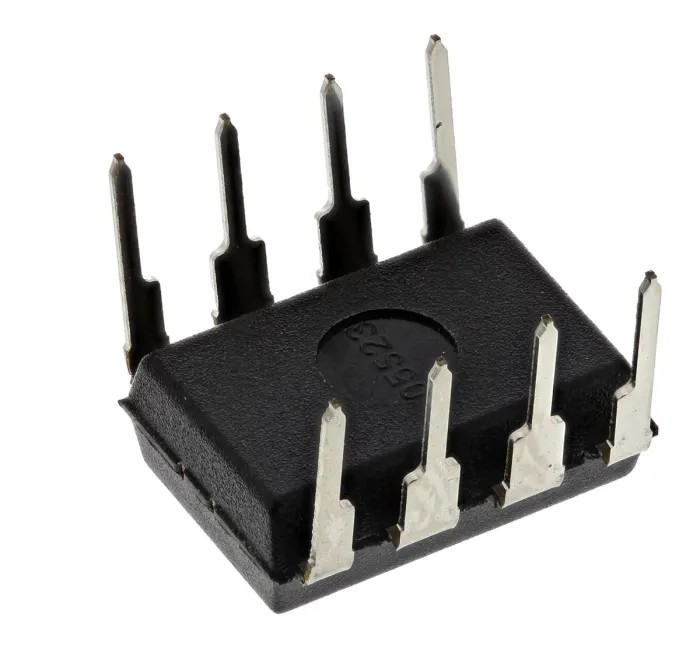

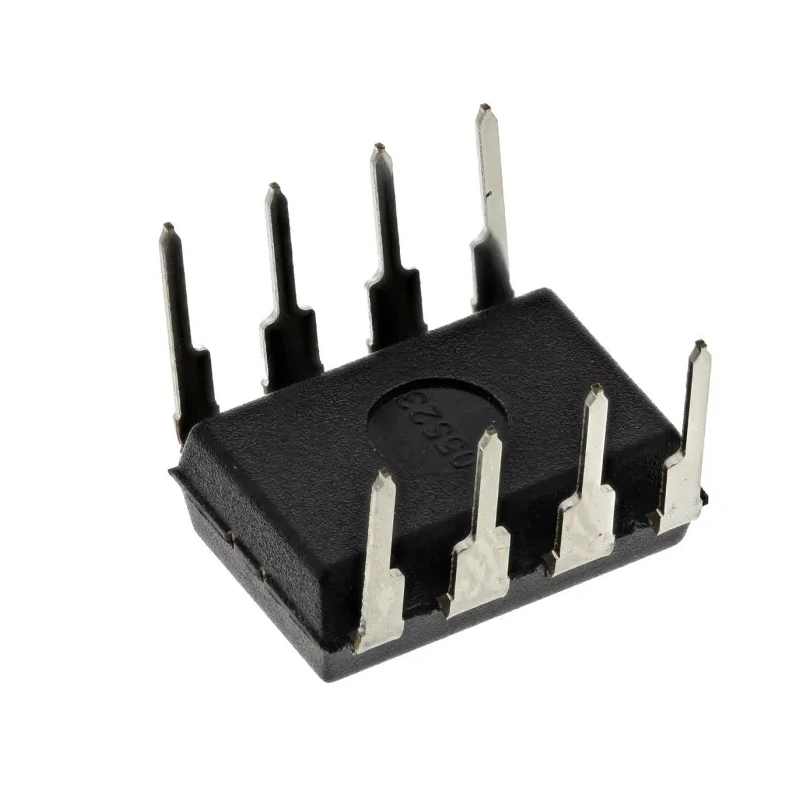

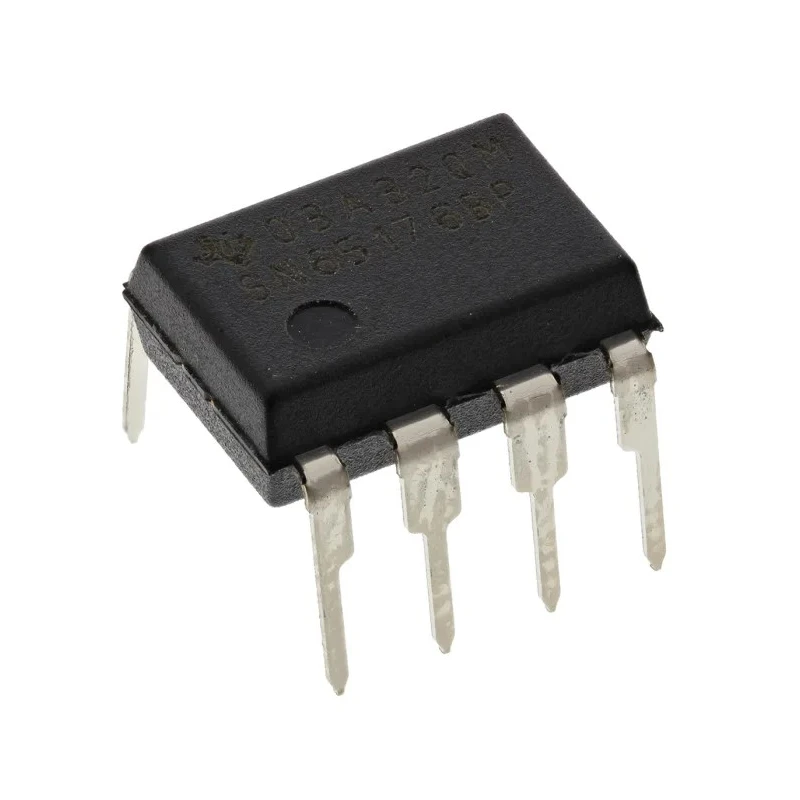

Texas Instruments TTL Line Transceiver IC, Bus Transceiver Function, 1 Channel, Differential Input/Output SN65176BP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 10.16mm |
| Model | SN65176BP |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SNx5176B |
| Input Type | Differential |
| Maximum Operating Temperature | 105°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | TTL |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 70mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates with a supply voltage range of 4.75V to 5.25V.
- Provides one communication channel with differential I/O.
- Non-inverting polarity ensures signal integrity.
- Through-hole mounting for easy PCB integration.
- Supports operating temperatures from -40°C to 105°C, ideal for industrial environments.
- Maximum propagation delay time is 35ns at capacitive load.
- Maximum output currents of ±60mA at high and low levels.
- Low supply current of 70mA for power efficient operation.
Product Description
Texas Instruments SN65176BP is a high-performance line transceiver IC operating in the TTL logic family, designed for robust RS-485 communication bus transceiver applications. It features a single differential channel with non-inverting polarity, packaged in an 8-pin PDIP case suitable for through-hole mount technology.
The device operates reliably across industrial temperature ranges from -40°C to 105°C, making it suitable for demanding environments including industrial automation, instrumentation, and communication equipment. The supply voltage range of 4.75V to 5.25V ensures compatibility with standard 5V systems.
The SN65176BP line transceiver offers low propagation delay time of 35ns at specified capacitive loads, supporting high-speed data transfer with maximum output currents of -60mA (high level) and 60mA (low level). Its compact physical dimensions of length 10.16mm, width 6.6mm and height 5.08mm enable flexible integration into circuit boards.
The device is designed for through-hole mounting that facilitates ease of installation and maintenance. The TTL logic family characteristic ensures standardized interfacing with most digital systems. The SN65176BP is lead-free and RoHS compliant, supporting green manufacturing standards.
Typical industrial applications include serial communication interfaces, data transmission in industrial control systems, automation networks, and bus architectures. The device's robust design supports long cable lengths and noisy environments effectively.
Operates at standard 5V TTL supply voltage. Single-channel differential line transceiver with non-inverting output. Compact 8-pin PDIP package for easy assembly. Industrial temperature range support from -40°C to 105°C. Fast propagation delay time of 35ns for high-speed communication.
Maximum ±60mA output current capability. Low supply current draw of 70mA. Compliant with RoHS environmental standards for sustainable manufacturing. Explore more semiconductor and line transceiver devices on EnvMart for high-quality electronic components tailored for industrial and laboratory applications.
Explore more products in our Bus Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN65176BP operates with a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay time for the SN65176BP is 35ns at specified capacitive loads.
It can provide maximum output currents of ±60mA at high and low levels.
This model supports operating temperatures from -40°C to 105°C, making it suitable for industrial environments.
The SN65176BP features a single communication channel with differential I/O.
The SN65176BP is packaged in an 8-pin PDIP case suitable for through-hole mounting.
It provides a differential output type with non-inverting polarity to ensure signal integrity.
The supply current for this model is 70mA, which supports power-efficient operation.
The dimensions are 10.16mm in length, 6.6mm in width, and 5.08mm in height.
Yes, it is lead-free and RoHS compliant, supporting green manufacturing standards.
Typical applications include serial communication interfaces, data transmission in industrial control systems, and automation networks.
This model supports through-hole mounting, facilitating ease of installation and maintenance.
