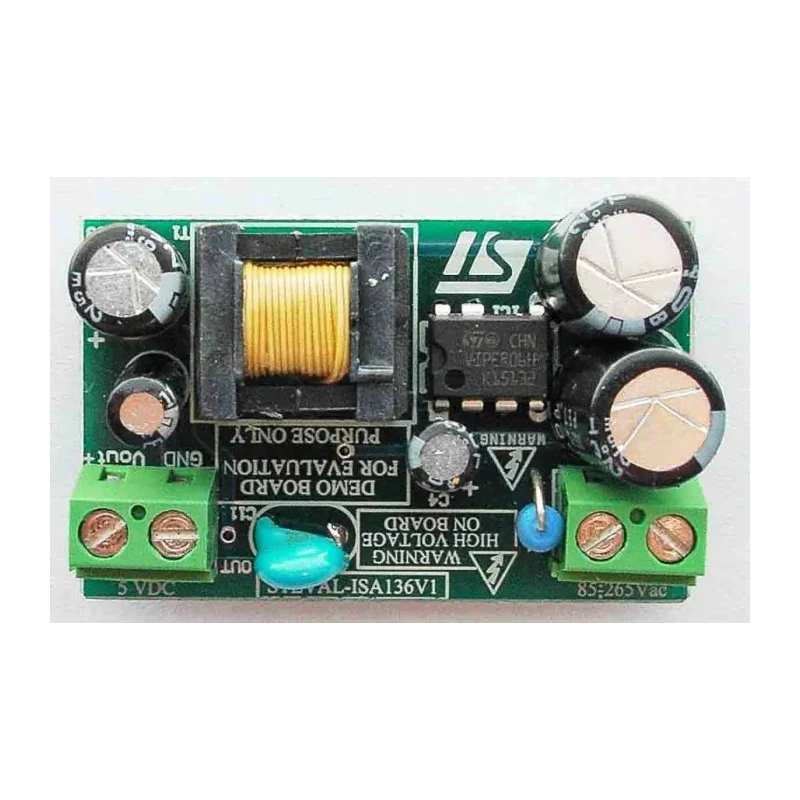

STMicroelectronics Power Management Evaluation Board 5V 0.6A 3W Isolated Flyback, VIPER06HN STEVAL-ISA136V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ISA136V1 |
| For Use With | General-Purpose Applications |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | VIPER06HN |
| Kit Name | Evaluation Board |
Key Features
- Implements a 5V output at 0.6A with isolated flyback topology, offering 3W power capacity.
- Utilizes the VIPER06HN high-voltage converter with integrated PWM controller and 800V avalanche-rugged MOSFET.
- Provides efficient power management with low standby consumption and burst mode operation.
- Operates at a fixed switching frequency of 115 kHz and incorporates frequency jittering for EMI compliance.
- Board features delayed overload, open-loop failure, and hysteretic thermal protection for enhanced reliability.
- Compact design suitable for laboratory, industrial and robotics development environments.
- Certified RoHS compliant for environmentally safe operation.
Product Description
STMicroelectronics STEVAL-ISA136V1 Power Management Evaluation Board for VIPER06HN is a high-efficiency development kit engineered for general-purpose applications requiring robust and reliable isolated power conversion. The board delivers a stable 5V output at up to 0.6A using a 3W isolated flyback topology, making it appropriate for a range of electronic and industrial projects.
At the heart of this evaluation board lies the VIPER06HN IC, a high-voltage converter from the VIPer Plus family featuring a low-voltage PWM controller paired with an 800V avalanche-rugged power MOSFET. The integration provides high performance, compactness and safety for demanding power management environments.
The STEVAL-ISA136V1 board stands out for its small footprint, high efficiency, and exceptionally low consumption in standby and no-load conditions, achieved via burst mode operation. Burst mode minimizes average switching frequency and associated losses, supporting energy-saving goals in laboratory, manufacturing and building automation contexts.
Fixed frequency operation at 115 kHz and frequency jittering ensure the board meets electromagnetic disturbance standards, improving system compatibility and reducing EMI. Advanced safety features, including delayed overload protection, open-loop failure detection, and hysteretic thermal protection, strengthen the board’s operational reliability, making it ideal for test, evaluation, and prototyping phases.
The board is RoHS compliant for safe integration in environmentally conscious designs, compatible with a broad range of industrial, robotics and electronics applications. Its compact design and robust functionality streamline development workflows and enable efficient testing of power management circuits.
Implements an efficient isolated flyback conversion for low-voltage power supply needs. Features integrated PWM control and high-voltage MOSFET for rugged and reliable operation. Designed with burst mode for reduced power consumption under standby and no-load conditions.
Incorporates frequency jittering to help comply with electromagnetic disturbance standards. Safety protections include delayed overload, open-loop failure, and hysteretic thermal protection. Suitable for industrial, laboratory and robotics development environments.
RoHS compliant and ready for integration in environmentally responsible projects. Browse more Power Management Development Kits and STMicroelectronics solutions on EnvMart. Discover advanced boards for electronics, industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board provides a stable output of 5V at a maximum current of 0.6A, delivering a total power capacity of 3W.
It utilizes an isolated flyback topology for efficient power conversion.
The board operates at a fixed switching frequency of 115 kHz.
The board incorporates delayed overload protection, open-loop failure detection, and hysteretic thermal protection to enhance operational reliability.
Yes, it is RoHS compliant, ensuring safe integration into environmentally responsible projects.
It is designed for general-purpose applications in laboratory, industrial, and robotics development environments.
The featured device is the VIPER06HN, a high-voltage converter with an integrated PWM controller.
The STEVAL-ISA136V1 is manufactured in Italy.
Burst mode operation minimizes average switching frequency and associated losses, helping to achieve low standby consumption and energy savings.
Yes, it incorporates frequency jittering to help comply with electromagnetic disturbance standards, improving system compatibility.
The compact design facilitates efficient testing and development workflows for power management circuits in various applications.
It is classified as an Evaluation Board, intended for testing and prototyping phases.
