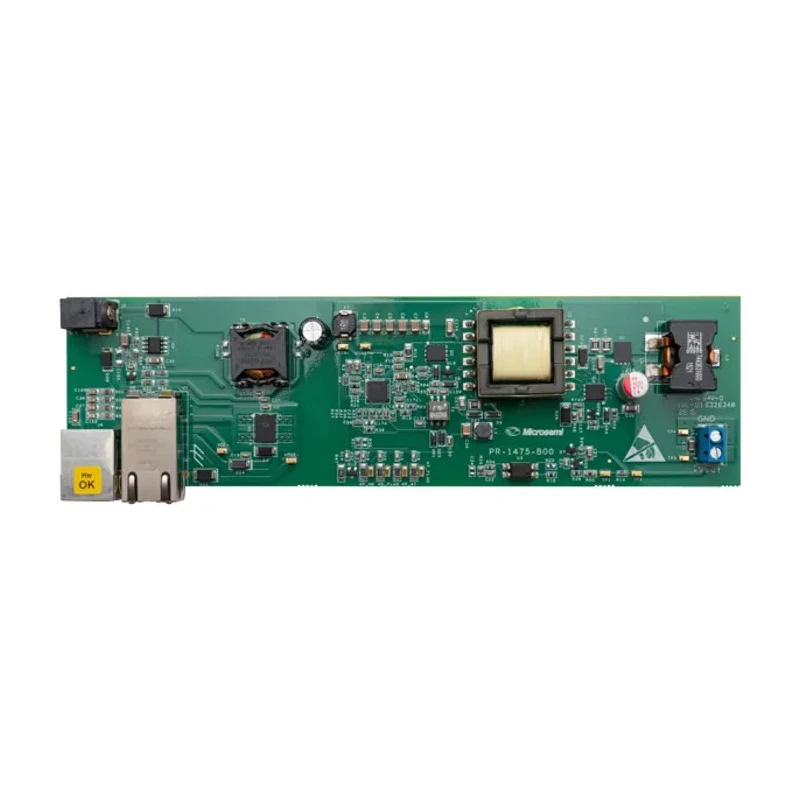

Microchip Power Management Development Kit FWD, PD with PD70211 12V 6A Power Detector Evaluation Board
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PD70211 |
| For Use With | PD70211 |
| Standards/Approvals | ISO |
| Kit Classification | Evaluation Board |
| Featured Device | PD70211 |
| Kit Name | FWD, PD with PD70211 12V 6A |
Key Features
- The evaluation board supports the PD70211 controller for power management.
- Supports 12V / 6A output voltage and current rating.
- Compatible with PD70211 for synchronized detection on 4 pairs of Cat5 cable.
- Compliant with IEEE 802.3af/at/Dual-AT/POH power standards.
- Designed with forward topology and wall adapter support.
- Ideal for performance evaluation and implementation of PD applications.
- Supports detection, class, and power supplying phases with PD70211ILQ controller.
- ISO standards compliant ensuring quality and reliability.
Product Description
Microchip PD70211EVB72FW-12 is a Power Management Development Kit evaluation board designed for precise evaluation and development of power detection and delivery applications using the PD70211 controller. It operates at 12 volts and supports a current of 6 amperes, facilitating power delivery with a total wattage of 72W. This board is optimized for use with the PD70211 power detector and offers compliant functionality with IEEE 802.3af, 802.3at, Dual-AT, and Power over HDBaseT (POH) standards.
The evaluation board incorporates a single PD controller, the PD70211ILQ, which manages detection, classification, and power supplying phases across the four pairs of Cat5 cables simultaneously. This synchronous detection enhances the efficiency of power over Ethernet-like applications and supports the current requirements beyond typical IEEE 802.3at Type 2 interfaces.
Featuring a forward topology design, the board provides wall adapter support for flexible use in various development environments. The PD70211ILQ controller greatly increases power delivery capabilities by supporting current on all four pairs of the Ethernet cables, enabling powerful and reliable system testing.
Designed for engineers and developers focusing on power delivery system design, this evaluation board allows for comprehensive testing and prototyping under real-world operating conditions. Its ISO compliance ensures adherence to quality standards expected in industrial and commercial electronics applications.
The evaluation kit supports power control and detection for PD applications based on the PD70211 controller. 12V output voltage and 6A current rating provide up to 72W power supply capabilities. Supports synchronous detection and power delivery over 4 pairs of Cat5 cables.
Complies with IEEE 802.3af/at/Dual-AT/POH standards for high compatibility. Utilizes forward topology with wall adapter power supply support. Ideal for prototyping and testing power delivery designs within electronic and industrial automation setups.
Equipped with PD70211ILQ controller to manage power detection and class phases efficiently. ISO standards compliance guarantees reliable performance in developmental tasks.
This Microchip evaluation board is ideal for use in industrial, electronics manufacturing, automation, telecommunications, and development laboratory environments that require precise power delivery management and testing tools. For professionals engaged in developing power over Ethernet or similar technology, this kit offers a robust platform to validate and refine PD applications.
Explore more power management development tools and components in EnvMart’s comprehensive electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board supports an output voltage of 12V and a current rating of 6A, providing a total power supply capability of 72W.
It complies with IEEE 802.3af, 802.3at, Dual-AT, and Power over HDBaseT (POH) standards, ensuring high compatibility for power delivery applications.
The kit features a forward topology design, which allows for efficient power delivery and management.
The evaluation board incorporates the PD70211ILQ controller, which manages detection, classification, and power supplying phases.
It supports synchronous detection across four pairs of Cat5 cables simultaneously, enhancing power delivery efficiency.
The country of origin for this evaluation board is India.
It is designed for prototyping and testing power delivery designs within electronic and industrial automation setups, as well as telecommunications.
Yes, the board is designed with wall adapter support for flexible use in various development environments.
This kit is classified as an Evaluation Board, specifically designed for power management development.
The PD70211 controller features capabilities for detection, class management, and power supplying phases, optimizing power delivery applications.
Yes, it is ISO standards compliant, ensuring quality and reliability in its performance for developmental tasks.
The total wattage capability of this evaluation board is 72W, making it suitable for various power delivery applications.
