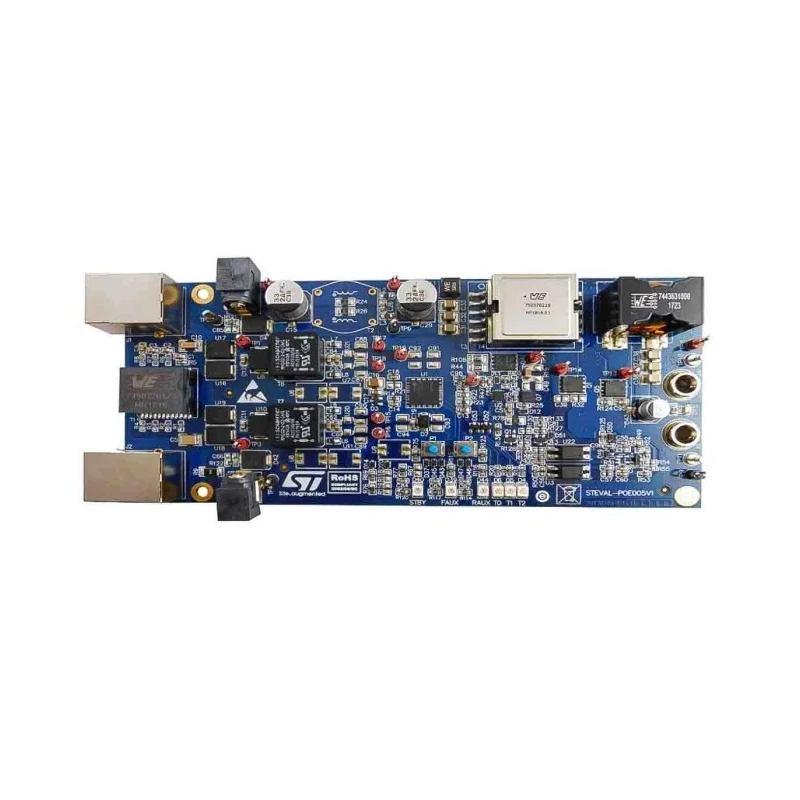

STMicroelectronics Power Management Development Kit Evaluation Board for PM8805, 12V 8A, PoE-PD Interface STEVAL-POE005V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-POE005V1 |
| For Use With | Building Safety and Security or Surveillance |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | PM8805 |
| Kit Name | Evaluation Board |
Key Features
- The evaluation board integrates the PM8805 PoE-powered device interface suitable for medium-to-high power PoE and PoE+ applications.
- It features a DC-DC active clamp forward converter driven by the PM8804 PWM controller for efficient 48 V conversion.
- The kit supports programmable switching frequency and soft start/turn off functions for robust power management.
- RoHS compliant and manufactured in Italy ensuring high-quality standards.
- Ideal for designers working on building safety, security systems, and surveillance equipment.
- Compact evaluation board format facilitates easy integration and testing in power management designs.
Product Description
STMicroelectronics STEVAL-POE005V1 is a Power Management Development Kit evaluation board designed for efficient power conversion in building safety, security, and surveillance applications. This evaluation board implements a 12 V, 8 A converter that utilizes a PoE-PD interface based on the PM8805 system in package device, enabling high efficiency and reliable power delivery in medium-to-high power PoE and PoE+ environments.
The DC-DC active clamp forward converter is driven by the PM8804 PWM controller, offering a programmable oscillator to adjust switching frequency according to application needs. It includes advanced features such as adjustable slope compensation, dual complementary low-side drivers with programmable dead time, programmable soft start and turn off, and current sense blanking time for enhanced stability and protection.
This evaluation board kit simplifies the development and testing process for engineers designing power management systems for security and surveillance products, meeting RoHS standards and delivering quality with its Italian manufacturing origin.
The evaluation board integrates the PM8805 PoE-powered device interface with two active bridges for effective power delivery. The smart 48 V DC-DC converter ensures optimal energy conversion with programmable and protection features.
Supports various high efficiency 2P and 4P PoE applications including PoE+ for broad application scope. Designed for quick evaluation, prototyping, and verification of power management strategies in safety and security systems.
Kit includes the evaluation board with essential components ready for immediate testing.
Use this STMicroelectronics STEVAL-POE005V1 evaluation board in industrial, building automation, surveillance system development, and other commercial power management scenarios. Discover more power management solutions by exploring the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board has a maximum output of 12 V and 8 A, making it suitable for medium-to-high power PoE and PoE+ applications.
It is designed for use in building safety, security systems, and surveillance applications, facilitating efficient power management in these areas.
The board implements a DC-DC active clamp forward converter driven by the PM8804 PWM controller for efficient 48 V conversion.
The PM8805 device interface integrates two active bridges for effective power delivery, supporting various PoE applications including PoE+.
This evaluation board is RoHS compliant, ensuring it meets environmental safety standards.
The kit includes the evaluation board with essential components ready for immediate testing, simplifying the development process.
Yes, it features a programmable oscillator that allows users to adjust the switching frequency according to their application needs.
The evaluation board is manufactured in Italy, ensuring high-quality standards.
The PM8804 PWM controller drives the DC-DC active clamp forward converter, enhancing efficiency in power conversion.
Yes, it includes programmable soft start and turn off functions for robust power management.
It supports various high efficiency 2P and 4P PoE applications, including PoE+ for a broad application scope.
Its compact evaluation board format allows for easy integration and testing in power management designs, making it user-friendly for engineers.
