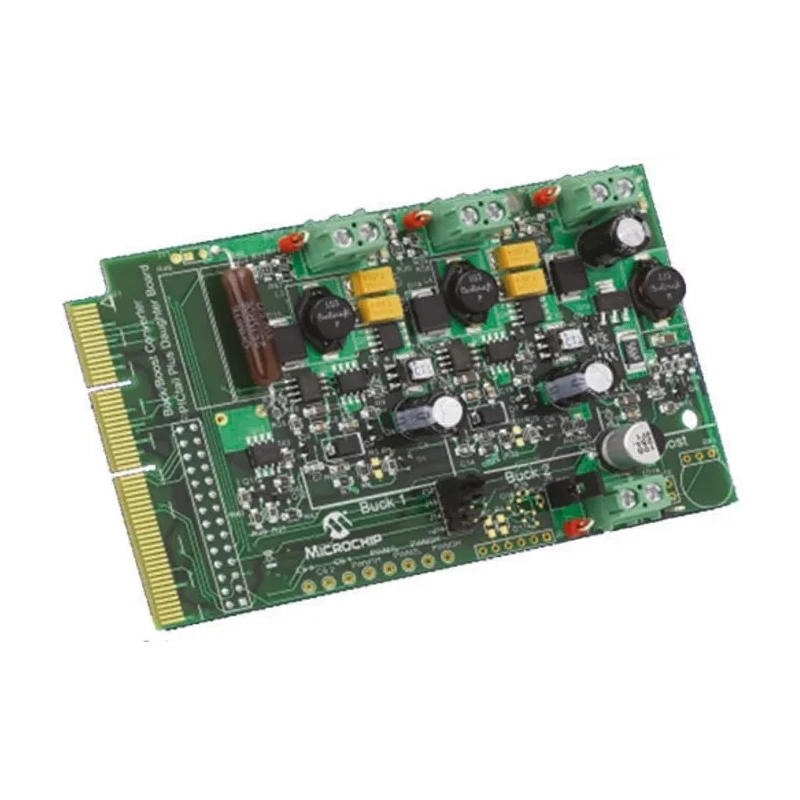

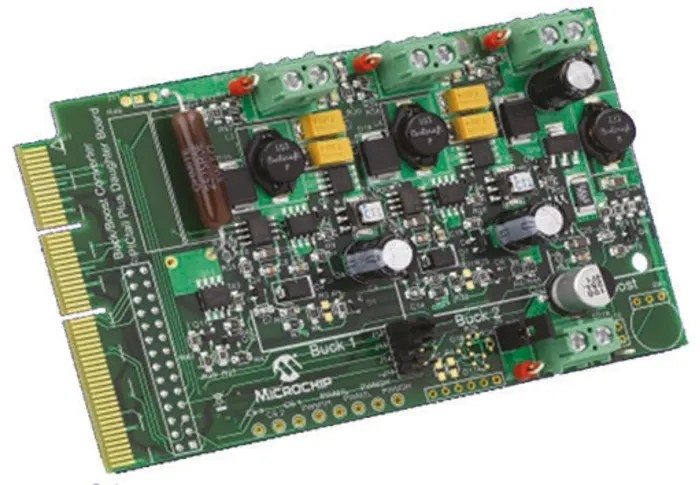

Microchip PICtail Plus Buck Converter Power Management Development Kit for dsPIC33F
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Model | dsPIC33F |
| For Use With | DM300027, Explorer 16 |
| Standards/Approvals | ISO |
| Kit Classification | Evaluation Board |
| Featured Device | dsPIC33F |
| Kit Name | PICtail Plus |
| Explorer 16 | use MA330020, dsPIC33FJ16GS504 44pin to 100pin Plug-In Module |
| 16-bit 28pin Starter Development board | use dsPIC33F16GS502-I/PT device |
Key Features
- This kit supports integration with DM300027 Explorer 16 and 16-bit 28-pin Starter Development boards.
- Operates on an input voltage range of +9V to +15V DC.
- Features two synchronous buck converter power stages and one boost converter power stage.
- Provides 5V output at 3A, 3.3V outputs at 3A each, and 20V boost output at 0.75A.
- Includes PMBus communication interface for configurable power management.
- Offers a 5Ω/5W switchable resistive load expandable for testing.
- Compatible with Mindi Power Design and Simulator Tool for design optimization.
- Supports parallel operation of two buck converters with fault indication and protection features.
Product Description
Microchip AC164133 PICtail Plus Buck Converter is a power management development kit tailored for dsPIC33F digital signal controllers, designed to facilitate cost-effective and efficient control of power supply topologies and power conversion applications.
This PICtail Plus daughter board interfaces seamlessly with the Explorer 16 development board (DM300027) and 16-bit 28-pin Starter Development board, making it suitable for developers working with dsPIC33F devices.
The device operates within an input voltage range of +9V to +15V DC, featuring two synchronous buck converter power stages and one boost converter power stage for versatile output capabilities.
It delivers a full load operation on 3.3V and 5V buck outputs at 3A each, along with a 20V boost output at 0.75A, either individually or simultaneously, suitable for complex power needs.
The development kit includes a PMBus communication interface connector for power monitoring and management, alongside a 5Ω/5W switchable resistive load that is expandable to support comprehensive testing scenarios.
Developers can leverage the Mindi Power Design and Simulator Tool to simulate and optimize their power designs efficiently. Parallel operation of two buck converters is supported, providing enhanced power regulation with multiple fault indication and protection mechanisms.
This evaluation board adheres to ISO standards and is manufactured in the United States, ensuring quality and reliability for industrial, laboratory, and educational development applications.
This kit facilitates rapid prototyping for digital power conversion using dsPIC33F controllers. Interfaces with MA330020 (dsPIC33FJ16GS504) 44-pin to 100-pin plug-in modules on Explorer 16 boards. Compatible with dsPIC33F16GS502-I/PT devices on 16-bit 28-pin starter boards.
Designed for power applications in robotics, power supply design, and motor control development. Explore the extensive range of Power Management Development Kits and electronic components at EnvMart to support your advanced engineering projects.
