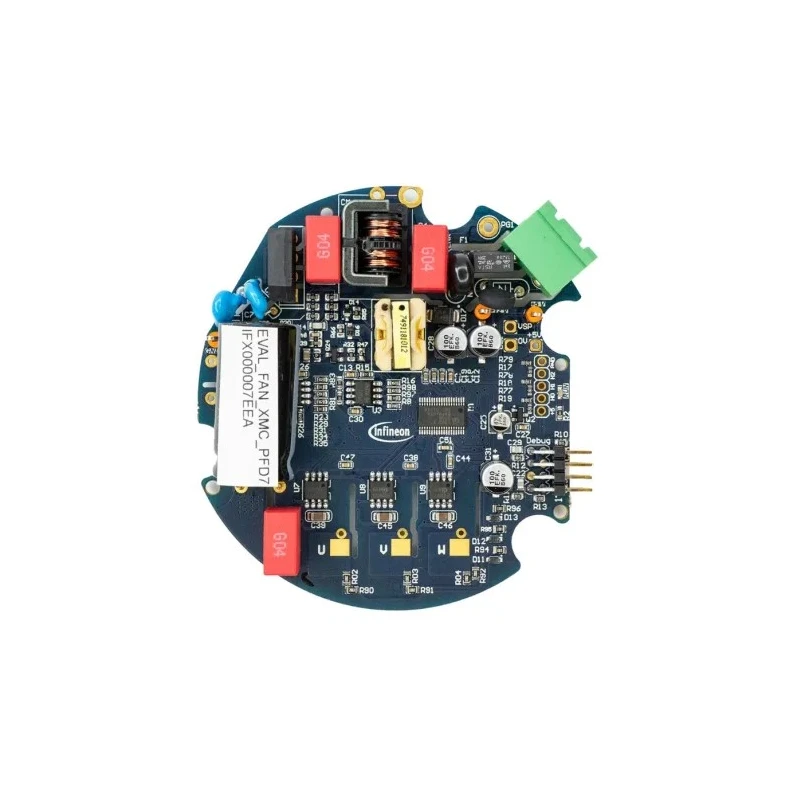

Infineon Motor Drive Evaluation Board , 85 - 265V AC Input, 100W, for CoolMOS PFD7, 2ED28073J06F EVALFANXMCPFD7TOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | EVALFANXMCPFD7TOBO1 |
| Topology | 3-Phase - 2 Level |
| Featured Device | 2ED28073J06F, BAT54-03W, BSS138N, BSS314PE, ICE5QR4770AG, IFX1763XEJV50, IPN60R2K0PFD7S, XMC1302-T038X0200 |
| Important note | The XMC™ Link does not come with this evaluation board, and must be ordered separately |
| Board Type | Evaluation Board |
| Family | CoolMOS™ PFD7 |
| Frequency min max | 6 kHz 20 kHz |
| Pout | 100 W |
| Qualification | Standard |
| Supply Voltage min max | 85 V 265 V |
Key Features
- Supports sensorless BLDC and PMSM motor control with field-oriented control algorithm.
- Operates on 85 - 265V AC input with output power up to 100W.
- Features Infineon's latest CoolMOS PFD7 super junction MOSFETs for improved efficiency and reduced switching losses.
- Allows switching frequency adjustments from 6kHz to 20kHz and supports two-phase or three-phase modulation.
- Includes graphical user interface for easy configuration and monitoring.
- Board incorporates devices such as 2ED28073J06F, BAT54-03W, BSS138N, BSS314PE, ICE5QR4770AG, IFX1763XEJV50, IPN60R2K0PFD7S, and XMC1302-T038X0200.
- Ideal for development in home appliances, IoT, pumps, refrigerators, and washing machines.
- Compact design with dimensions of 87mm x 87mm x 25mm for convenient integration.
Product Description
Infineon EVALFANXMCPFD7TOBO1 is a high-performance motor drive evaluation board engineered for efficient BLDC and PMSM motor control. Powered by Infineon's CoolMOS PFD7 super junction MOSFET series, this board is optimized for hard-switching circuits with industry-leading reverse recovery time, enhancing efficiency while allowing BOM reduction and heatsink-free operation.
The board is capable of sensorless field-oriented control (FOC) and comes equipped with advanced high-voltage MOSFETs suitable for hard commutation topologies, such as B6 inverter architectures. Users can adjust the switching frequency between 6kHz and 20kHz as well as select between two-phase or three-phase modulation, providing flexibility for various motor drive requirements.
It features a graphical user interface (GUI) which ensures intuitive configuration and ease of monitoring. Components onboard include devices such as 2ED28073J06F, BAT54-03W, BSS138N, BSS314PE, ICE5QR4770AG, IFX1763XEJV50, IPN60R2K0PFD7S, and XMC1302-T038X0200, delivering robust performance and reliability for industrial development.
Supports both alternating current (AC) and direct current (DC) input over the range of 85 - 265V. Delivers up to 100W output power, suitable for a wide array of motor control applications. Evaluation board measures 87mm x 87mm x 25mm, offering compact integration in setups.
Does not include XMC™ Link debug probe, which must be ordered separately for interfacing with XMC microcontrollers.
This evaluation board is ideal for industrial, laboratory, home appliance, IoT, pump, refrigerator, washing machine, and motor control drive development, making it a valuable tool for engineers and manufacturers building high-efficiency motor systems.
Explore Infineon's Power Management Development Kit and motor control solutions on EnvMart for more advanced tools and industry-leading technologies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board operates on an input voltage range of 85 - 265V AC.
It delivers a maximum output power of up to 100W.
The board allows switching frequency adjustments from 6kHz to 20kHz.
It supports sensorless BLDC and PMSM motor control with a field-oriented control algorithm.
The dimensions of the board are 87mm x 87mm x 25mm.
It employs a 3-Phase - 2 Level topology for motor control applications.
The board incorporates devices such as 2ED28073J06F, BAT54-03W, BSS138N, BSS314PE, ICE5QR4770AG, IFX1763XEJV50, IPN60R2K0PFD7S, and XMC1302-T038X0200.
Yes, it features a graphical user interface (GUI) for intuitive configuration and monitoring.
The XMC™ Link debug probe must be ordered separately, as it does not come with the evaluation board.
The country of origin for the evaluation board is India.
It is ideal for development in home appliances, IoT, pumps, refrigerators, and washing machines.
