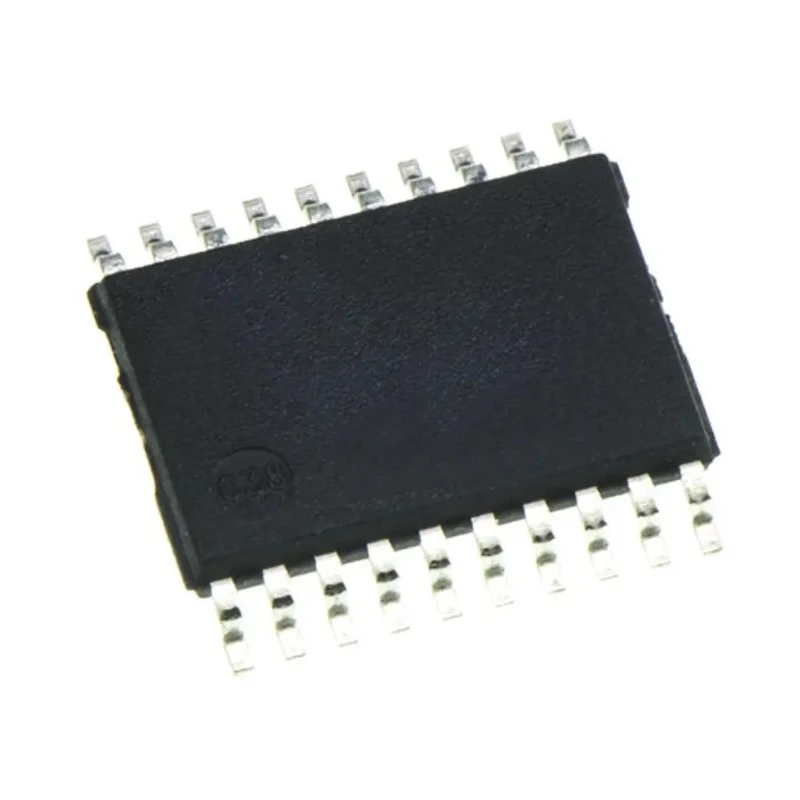

Toshiba 8-Bit Inverting CMOS TTL Bus Transceiver 20-Pin TSSOP 4.5-5.5V 74VHCT540AFT

Toshiba 74VHCT540AFT is a high speed 8-bit inverting bus transceiver designed for advanced digital logic systems requiring efficient data buffering and signal conversion. Built with silicon gate C2MOS technology, this device combines high speed operation characteristic of bipolar Schottky TTL with very low power consumption inherent to CMOS designs.

Operating across a power supply voltage range of 4.5V to 5.5V, the transceiver supports both CMOS and TTL logic levels which makes it versatile for interfacing between different voltage domains. Its package is a 20-pin small outline TSSOP facilitating space-saving surface mount assembly on PCBs.

The component features a maximum propagation delay of 10.5 nanoseconds (at specified load capacitance), ensuring fast data transfer rates suitable for bus interface applications. Balanced propagation delays (tPLH approximately equal to tPHL) and low noise characteristics improve signal integrity for sensitive digital communication systems.

Designed with wide industrial temperature tolerance from -40 to 125 degrees Celsius and featuring automotive standard AEC-Q100 certification, the device is appropriate for use in demanding automotive, industrial, and consumer electronic environments. Power-down protection on inputs and outputs adds robustness against voltage mismatch scenarios such as battery backup or hot board insertion.

Its pin and function arrangement maintains compatibility with the classic 74 series 245 bus transceiver chips. Operates at supply voltages from 4.5V to 5.5V. Utilizes silicon gate 2-micron CMOS process technology. Compatible inputs with TTL voltage levels.

Provides balanced propagation delays and low noise operation. Complies with automotive AEC-Q100 qualification. Encapsulated in 20-pin TSSOP surface mount package. Supports wide temperature range suitable for industrial applications.

Offers power-down protection on inputs and outputs. Enables level shifting between 3.3 V and 5 V domains. Explore Toshiba semiconductor components and bus transceiver ICs in the Electronics & Electricals category at EnvMart for reliable, high-performance digital logic solutions.
