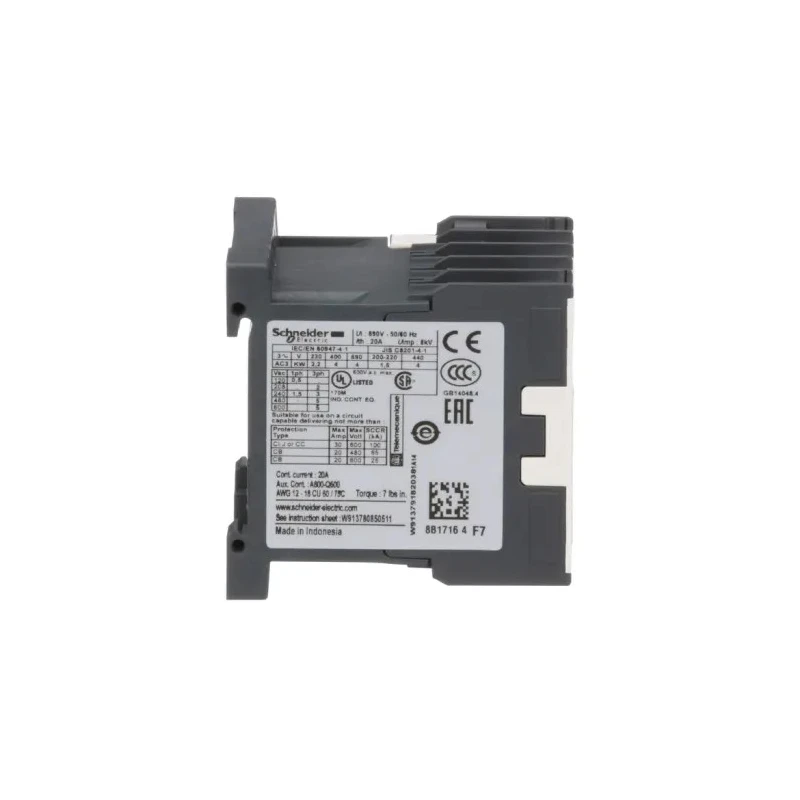

Schneider Electric TeSys K 3-Pole 9A, 4 kW Contactor with 110V AC Coil LC1K0910F7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LC1K0910F7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- The contactor supports a contact current of 9A and power rating of 4 kW at 110V AC.
- Three poles with normally open contacts provide versatile control options.
- Auxiliary contact provides additional circuit control for signalling or interlocking.
- DIN rail mountable with compact dimensions for efficient panel integration.
- Wide operating temperature range ensures suitability for varied industrial environments.
- Screw terminal connections offer dependable electrical contact stability.
- Conforms with major international safety and environmental standards.
- Manufactured in France with an environmentally conscientious design.
Product Description
Schneider Electric LC1K0910F7 is a 3-pole TeSys K series contactor equipped with a 110V AC coil, rated for 9A operational current and 4 kW power at 110V AC. It is engineered for motor control and resistive load management in industrial, automation, and electrical control systems.
This compact contactor measures 58 mm in length, 45 mm in width, and 57 mm in depth, making it ideal for DIN rail mounting in control panels. Its screw terminal type ensures reliable and secure electrical connections.
The device operates effectively under ambient temperatures ranging from -25°C to +50°C, providing dependable performance in diverse environmental conditions. With a contact voltage rating of 690V AC and a configuration of 3 normally open main contacts alongside 1 normally open auxiliary contact, this contactor enhances flexibility in control circuit design.
Certified to internationally recognized standards such as UL, RoHS, IEC, EAC, CSA, and CCC, it meets high safety and quality benchmarks. Originating from France, the Schneider Electric LC1K0910F7 emphasizes sustainability through its design for disassembly and environmental compliance.
The contactor supports a contact current of 9A and power rating of 4 kW at 110V AC. Three poles with normally open contacts provide versatile control options. Auxiliary contact provides additional circuit control for signalling or interlocking.
DIN rail mountable with compact dimensions for efficient panel integration. Wide operating temperature range ensures suitability for varied industrial environments. Screw terminal connections offer dependable electrical contact stability.
Conforms with major international safety and environmental standards. Manufactured in France with an environmentally conscientious design.
This contactor is suited for use in motor control, automation processes, and management of resistive loads within industrial electrical systems. It is ideal for integration within control panels requiring reliable switching devices capable of handling specified electrical loads. The product category includes contactors essential for industrial automation and electrical distribution applications.
Explore further industrial automation and control gear products for comprehensive electrical system solutions at EnvMart.
Explore more products in our Automation & Control Gear category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a power rating of 4 kW at 110V AC.
It supports a contact current of 9A.
This model measures 58 mm in length, 45 mm in width, and 57 mm in depth.
It features 3 poles with normally open contacts.
The coil voltage is 110V AC.
The contactor operates effectively between -25°C and +50°C.
It is designed for DIN rail mounting.
It conforms to UL, RoHS, IEC, EAC, CSA, and CCC standards.
The contact voltage rating is 690V AC.
It uses screw terminal connections for reliable electrical contact stability.
Yes, it includes 1 normally open auxiliary contact for additional circuit control.
This contactor is suited for motor control and management of resistive loads within industrial electrical systems.
