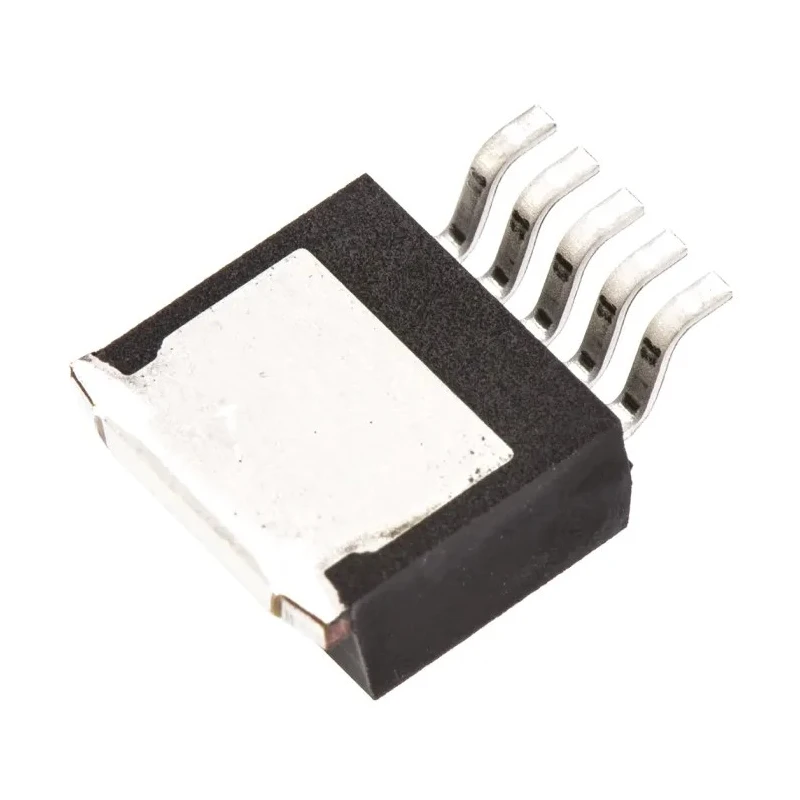

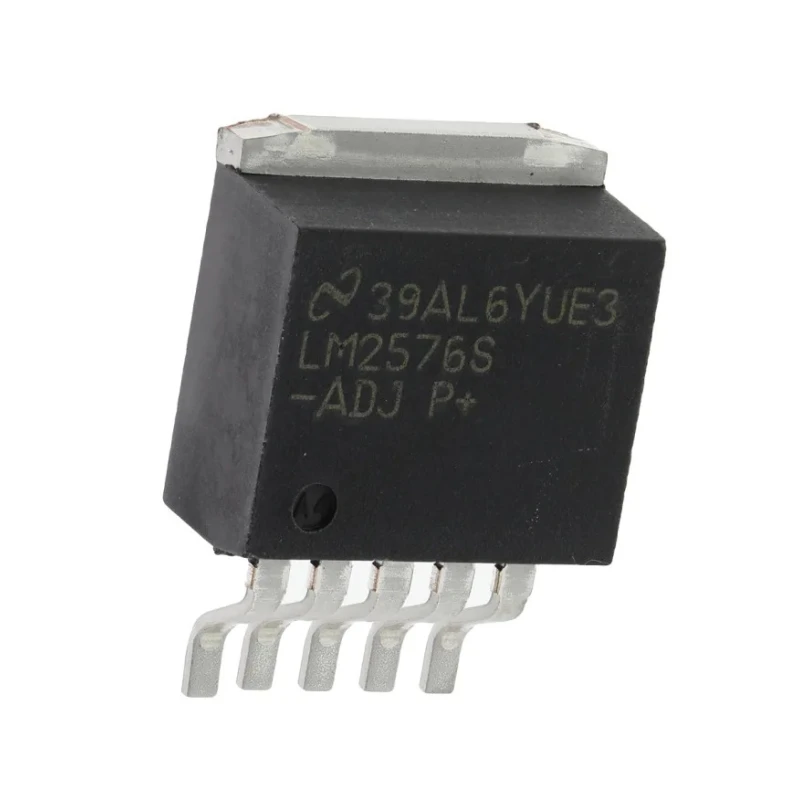

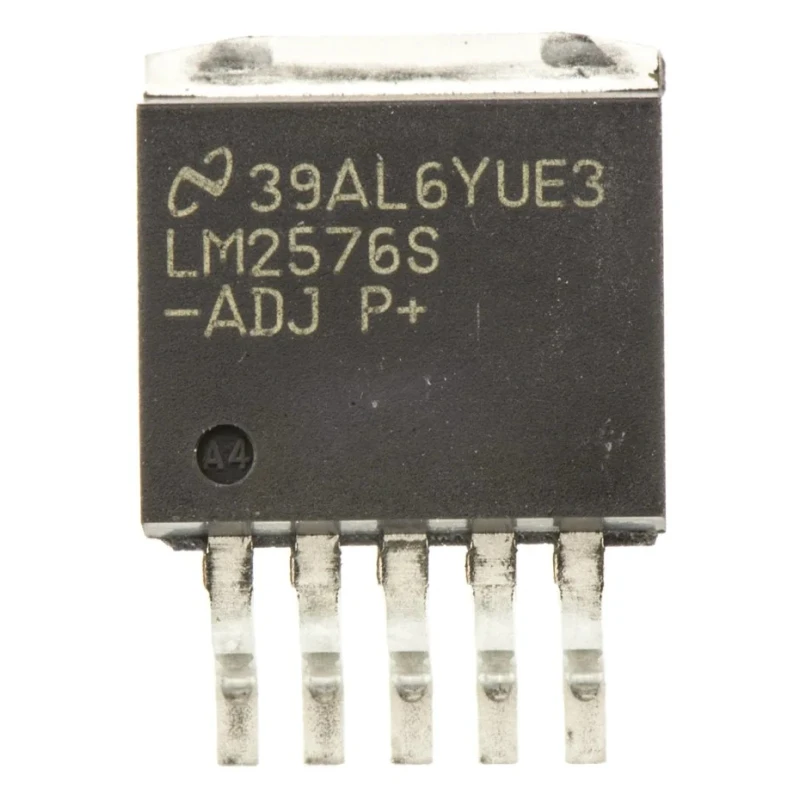

Texas Instruments Buck Converter Surface Mount TO-263 Package 37V Output Voltage 3A Output Current LM2576S-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 37V |
| Brand | Texas Instruments |
| Efficiency | 77% |
| Length | 10.16mm |
| Model | LM2576S-ADJ/NOPB |
| Depth | 4.57mm |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM2576 |
| Output Current | 3A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 150mV |
| Maximum Input Voltage | 40V |
| Standards/Approvals | RoHS, JEDEC |
| Minimum Input Voltage | 4V |
| Number of Pins | 5 |
| Output Voltage 1 | 37V |
| Output Voltage 2 | 1.23V |
| Stepdown switching regulator,LM2576S-ADJBrand | National Semiconductor |
Key Features
- Operates with a wide input voltage range from 4V to 40V.
- Provides a stable adjustable output voltage with 1.23V minimum.
- High efficiency of approximately 77% to reduce power loss.
- Designed with 5 pins for surface mounting on printed circuit boards.
- Ripple and noise limited to 150mV for clean output voltage.
- Operates safely in temperatures from -40°C up to 125°C maximum.
- Complies with RoHS and JEDEC industrial standards.
- Single output configuration for flexible design applications.
Product Description
Texas Instruments LM2576S-ADJ/NOPB is a surface mount buck converter designed for efficient step-down DC voltage regulation applications. It delivers a stable, adjustable output voltage up to 37V with a maximum current of 3A, making it ideal for powering electronic circuits requiring reliable power conversion.
This device operates over a wide input voltage range of 4V to 40V, ensuring compatibility with diverse power sources. It features high efficiency of approximately 77%, minimizing energy loss and heat generation during operation. Ripple and noise are tightly controlled at 150mV to maintain signal integrity for sensitive electronics.
The LM2576S-ADJ/NOPB is housed in a compact TO-263 package measuring 10.16mm in length, 8.64mm in width, and 4.57mm in depth with 5 pins for surface mounting on printed circuit boards, facilitating space-efficient designs. It supports operation under extreme temperatures from -40°C to 125°C, making it suitable for industrial and commercial environments.
Conforming to RoHS and JEDEC standards, this regulator offers environmental compliance and industry reliability. It belongs to the LM2576 series SIMPLE SWITCHER® family from Texas Instruments, well known for ease of use and flexibility in voltage regulation tasks.
Common usage areas include electronic power supply systems, embedded device power regulation, industrial control systems, and other applications requiring a dependable voltage step-down solution.
Operates with a wide input voltage range from 4V to 40V. Provides a stable adjustable output voltage with 1.23V minimum. High efficiency of approximately 77% to reduce power loss. Compact TO-263 package dimensions: 10.16mm length, 8.64mm width, and 4.57mm depth.
Designed with 5 pins for surface mounting on printed circuit boards. Ripple and noise limited to 150mV for clean output voltage. Operates safely in temperatures from -40°C up to 125°C maximum. Complies with RoHS and JEDEC industrial standards.
Single output configuration for flexible design applications. Part of Texas Instruments LM2576 series SIMPLE SWITCHER® step-down regulators. Explore more power management components and switching regulators in the Electronics & Electricals category on EnvMart for robust and efficient designs.
Explore more products in our Voltage Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable adjustable output voltage with a minimum of 1.23V and can go up to 37V.
The maximum output current for this unit is 3A.
It operates over a wide input voltage range from 4V to 40V.
It has a high efficiency of approximately 77%, which helps reduce power loss.
The TO-263 package measures 10.16mm in length, 8.64mm in width, and 4.57mm in depth.
Ripple and noise are limited to 150mV, ensuring a clean output voltage.
This unit operates safely in temperatures from -40°C to 125°C.
It is designed with 5 pins for surface mounting on printed circuit boards.
It complies with RoHS and JEDEC industrial standards.
Common usage areas include electronic power supply systems, embedded device power regulation, and industrial control systems.
This model is part of the LM2576 series SIMPLE SWITCHER® family from Texas Instruments.
Yes, it is designed to operate under extreme temperatures, making it suitable for industrial and commercial environments.
