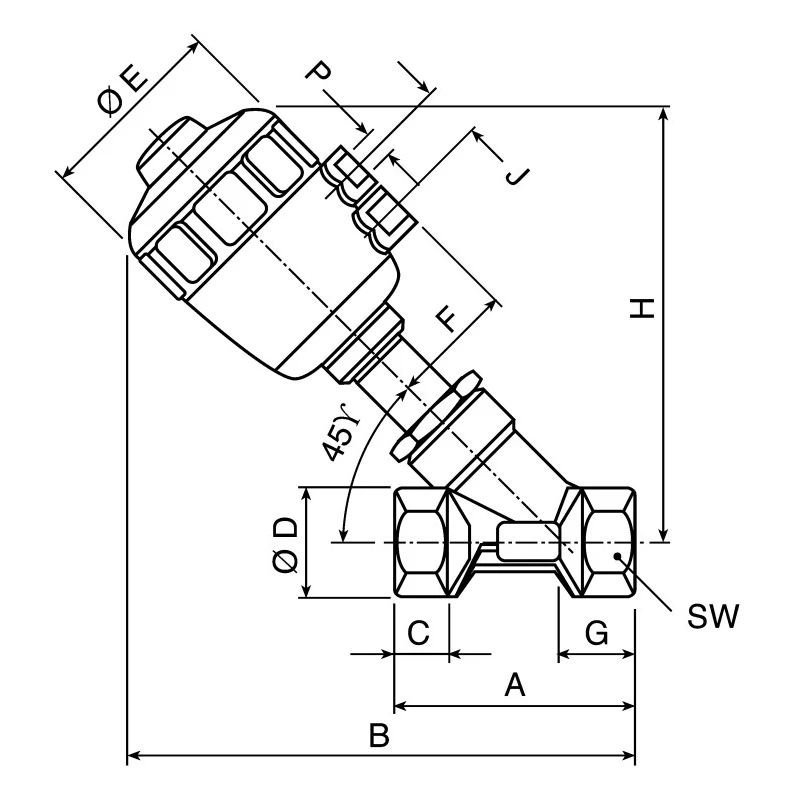

Burkert Angle Type Pneumatic Actuated Valve Stainless Steel Body 16 Bar 3/4 Inch 178687

Burkert 178687 is a high-quality angle type pneumatic actuated valve designed to manage fluid control in industrial applications requiring pressures up to 16 bar. This stainless steel valve features a two-way, two-port design with an angle seat configuration, allowing efficient flow control and reduced wear.

The valve is engineered with a polyamide actuator casing and uses PTFE material for sealing, ensuring long-lasting chemical resistance and reliable operation. It has a default normally open position with spring return, ideal for applications needing fail-safe open functionality. The threaded inlet and outlet ports, both sized at 3/4 inch, conform to standard G thread specifications for easy integration into piping systems.

This valve operates effectively within ambient temperatures ranging from -10°C to +60°C, and media temperatures from -10°C up to +180°C, suitable for neutral gases, air, steam, water, and oil. Self-adjusting spindle packing glands and wiper seals with intermediate relief reduce maintenance requirements and improve leak tightness.

The compact design of the valve supports high flow rates, making it suitable for diverse industrial uses including manufacturing process control, HVAC systems, water treatment, and pneumatic fluid power applications. Its stainless steel body offers durability and resistance to corrosion in demanding environments.

Please note, valves with flow direction above the seat are primarily designed for gases and steam and have conditional suitability for liquids due to potential water hammer risks. This product is manufactured in Germany, ensuring adherence to high-quality industrial standards.

Constructed from stainless steel for durability and corrosion resistance. Maximum operating pressure of 16 bar for robust industrial use. Flow direction configured for optimal performance in gases and steam. Polyamide actuator casing and PTFE seal material ensure chemical resistance.

Threaded inlet and outlet connections sized 3/4 inch with G thread standard. Operating ambient temperatures from -10°C to +60°C with media up to +180°C. Default normally open position with spring return for fail-safe operation.

Self-adjusting spindle packing glands and wiper seal provide improved sealing. Suitable for neutral gases, air, steam, water, and oil applications. Browse the Industrial Valves category on EnvMart for more Pneumatic Actuated Valves and related equipment.
