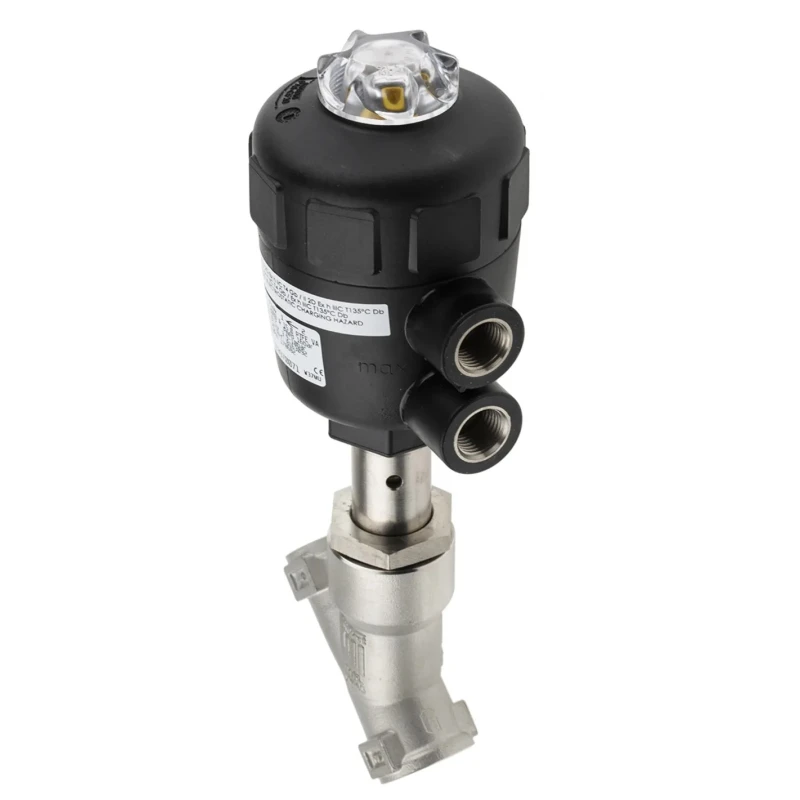

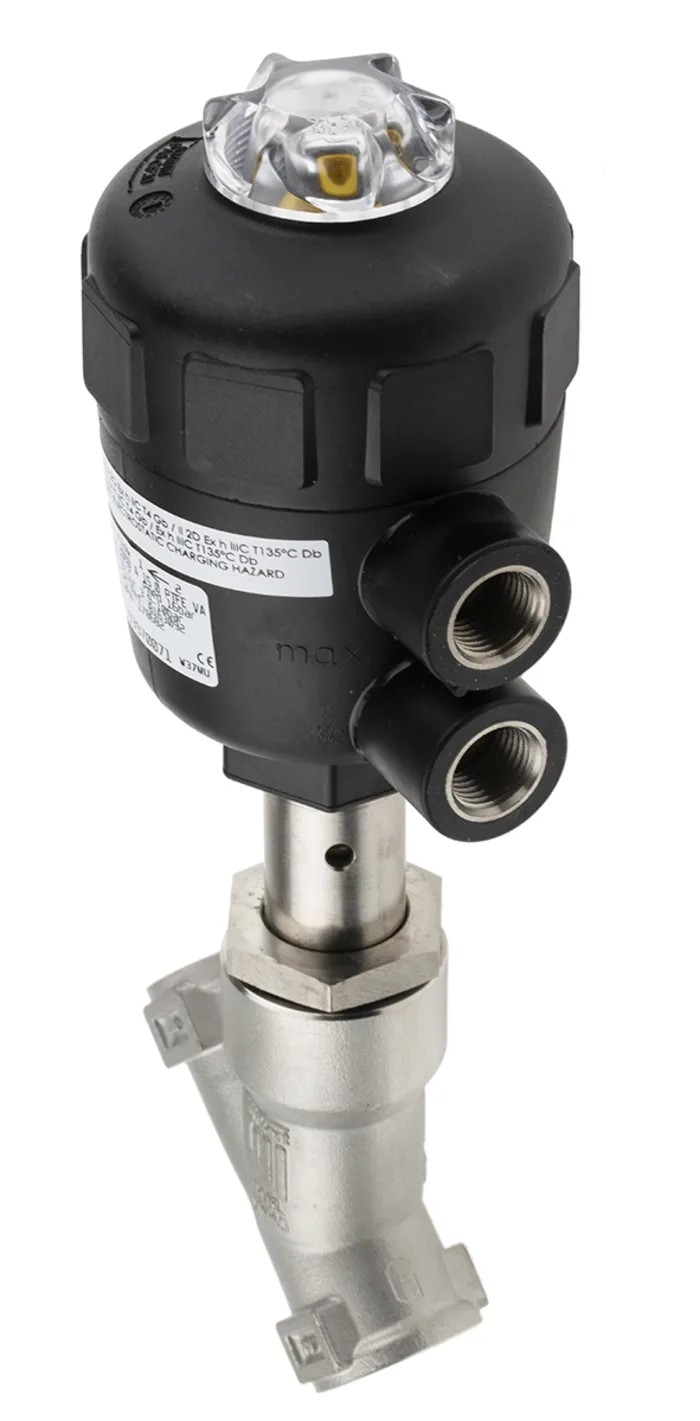

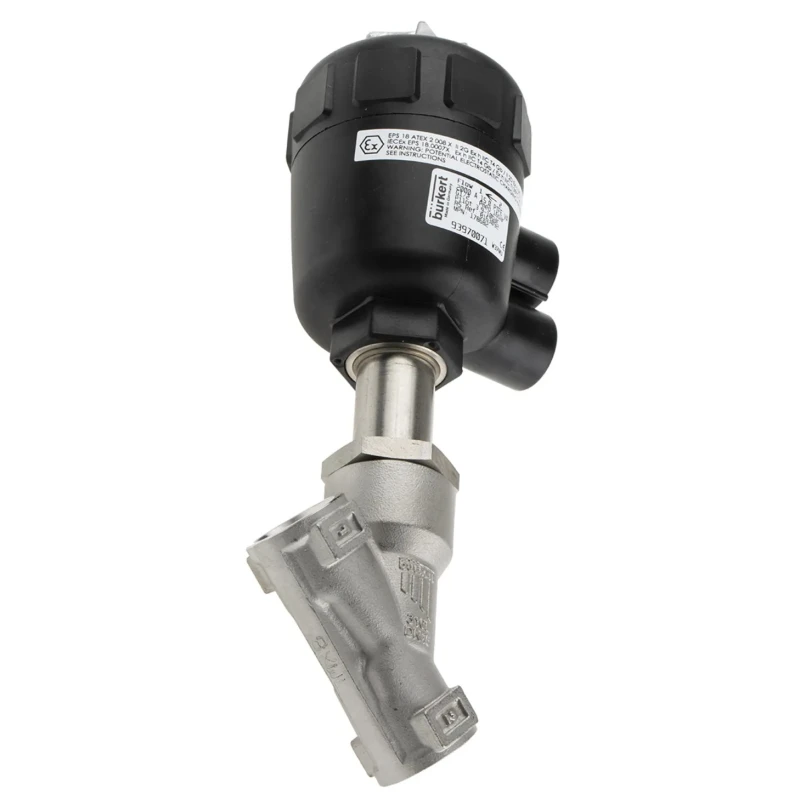

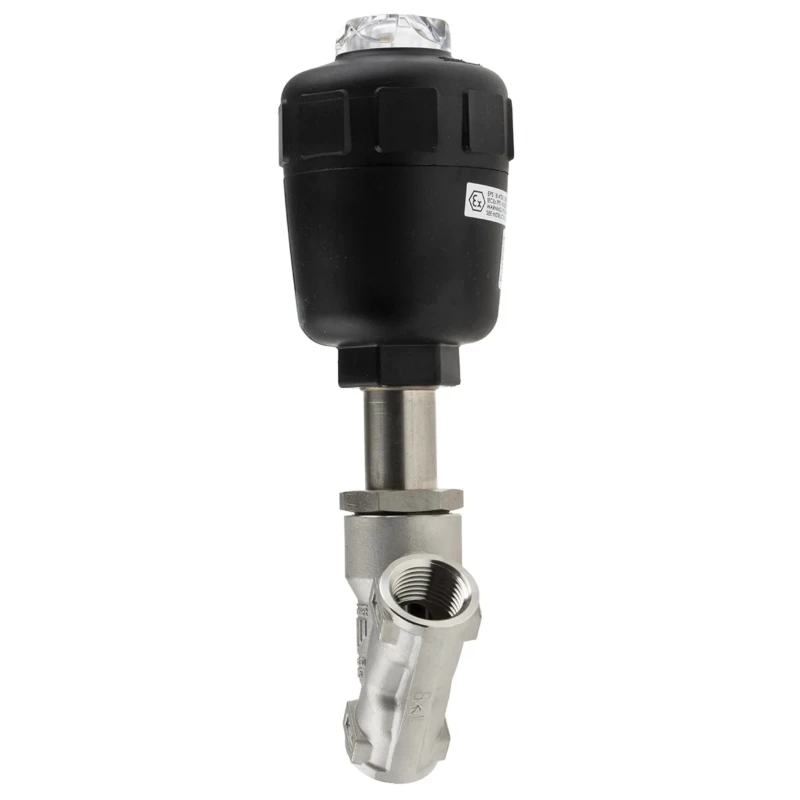

Burkert Pneumatic Angle Seat Valve Stainless Steel 16 bar 1/2 in 178682
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Model | 178682 |
| Valve Type | Angle |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Stainless Steel |
| Inlet Port Size | 1/2 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
| Burkert Angle Seat type Pneumatic Operated Process Valve, G 1/2in, 16 barBrand | Burkert |
Key Features
- The valve features a durable stainless steel construction for corrosion resistance.
- It has a normally closed (NC) valve position operated by a spring return mechanism.
- The valve includes threaded inlet and outlet connections with G thread standard.
- Operating temperature ranges from -10°C to 60°C ensuring stable performance.
- Designed for precise liquid flow control with a 2/2-way configuration and under-seat flow design.
- Compact polyamide actuator casing with PTFE seal material enhances durability and reliability.
- Equipped with live loaded packing and an N-seal piston actuator for minimized leakage.
- Engineered to resist water hammer effects for safe industrial operation.
Product Description
Burkert 178682 pneumatic angle seat valve is a high-performance valve designed for efficient control in industrial fluid power and pipeline systems. Constructed from sturdy stainless steel, the valve withstands a maximum operating pressure of 16 bar and provides reliable operation with its normally closed (NC) configuration and spring return mechanism.
This 1/2 inch valve features threaded inlet and outlet connections with a G standard thread, suitable for seamless integration in pipeline systems. The valve supports a 2/2-way flow with an under-seat flow characteristic optimized for liquids, ensuring accurate flow regulation and minimal dead volume.
Operating temperature ranges from -10°C up to 60°C, making this valve viable for cold and moderately warm environments. Its polyamide actuator casing combined with PTFE sealing material enhances mechanical durability and chemical resistance, ensuring long-term operational stability.
Designed with live loaded spindle packing glands and an N-seal piston actuator, the valve ensures tight sealing to prevent leaks. Additionally, the valve incorporates anti-water hammer technology to mitigate hydraulic shocks during operation.
Widely used in industrial automation, HVAC, water treatment, and manufacturing processes, this Burkert valve offers robust and reliable pneumatic control for a variety of fluid handling applications.
The valve's compact design achieves a flow rate of 4.2 m³/h, supporting efficient throughput. Engineered for ambient temperature compatibility ranging from -10°C to 60°C. Constructed with high-grade stainless steel for corrosion resistance and durability.
Live loaded packing and N-seal piston actuator ensure minimal maintenance and leakage. Spring return type with normally closed position for safe default operation. Threaded G standard connections simplify installation into existing systems.
Anti-water hammer design prevents system damage caused by hydraulic shocks. Manufactured in Germany with rigorous quality standards ensuring product reliability. Set contents: 1 Pneumatic angle seat valve with 1/2 in threaded inlet and outlet ports, model number 178682.
Explore the full range of industrial Pneumatic Actuated Valves and fittings at EnvMart for your mechanical and fluid control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Burkert Pneumatic Angle Seat Valve is 16 bar.
This valve operates effectively within a temperature range of -10°C to 60°C.
It is an angle seat valve with a normally closed (NC) configuration operated by a spring return mechanism.
The valve features threaded inlet and outlet connections with a G thread standard.
The valve is constructed from stainless steel, ensuring corrosion resistance and durability.
It incorporates anti-water hammer technology to mitigate hydraulic shocks during operation.
The valve achieves a flow rate of 4.2 m³/h, supporting efficient throughput.
It features a compact polyamide actuator casing with a PTFE seal material for enhanced durability and reliability.
The default valve position is normally closed (NC).
This valve is manufactured in Germany, adhering to rigorous quality standards.
It is widely used in industrial automation, HVAC, water treatment, and manufacturing processes.
The valve is equipped with live loaded packing and an N-seal piston actuator to minimize leakage.
