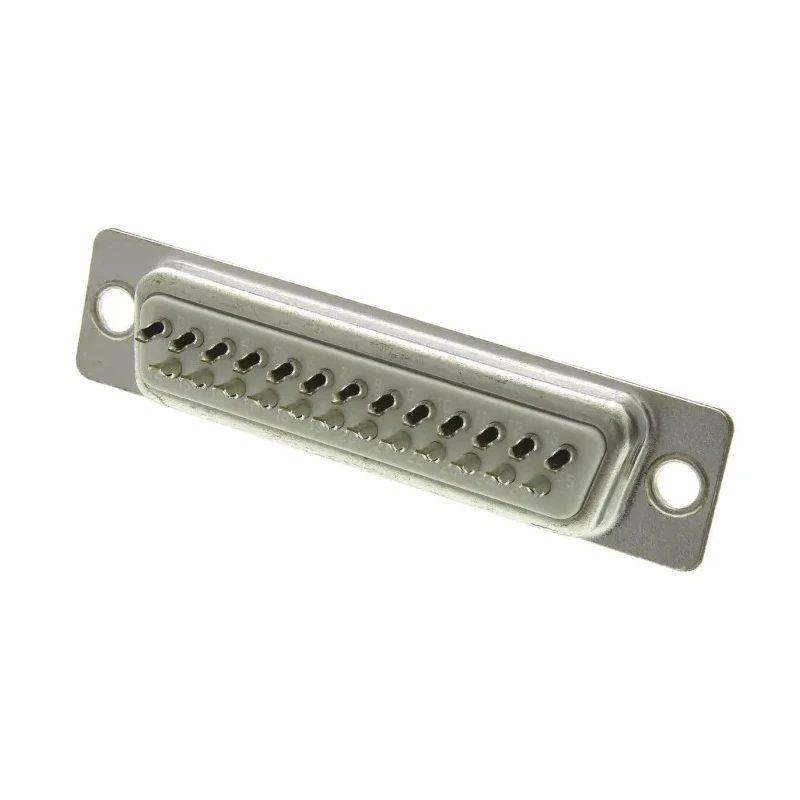

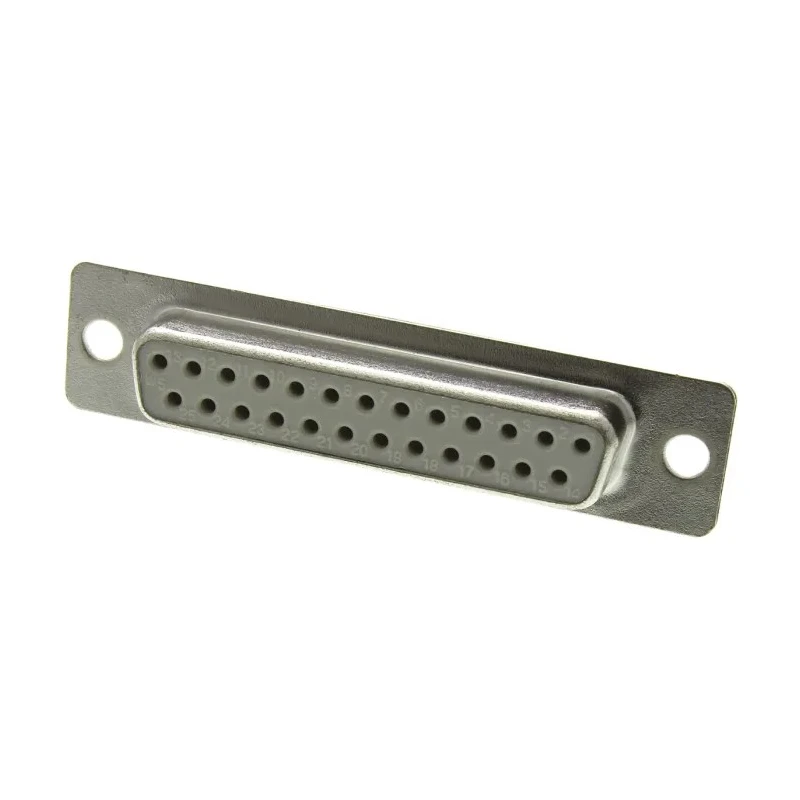

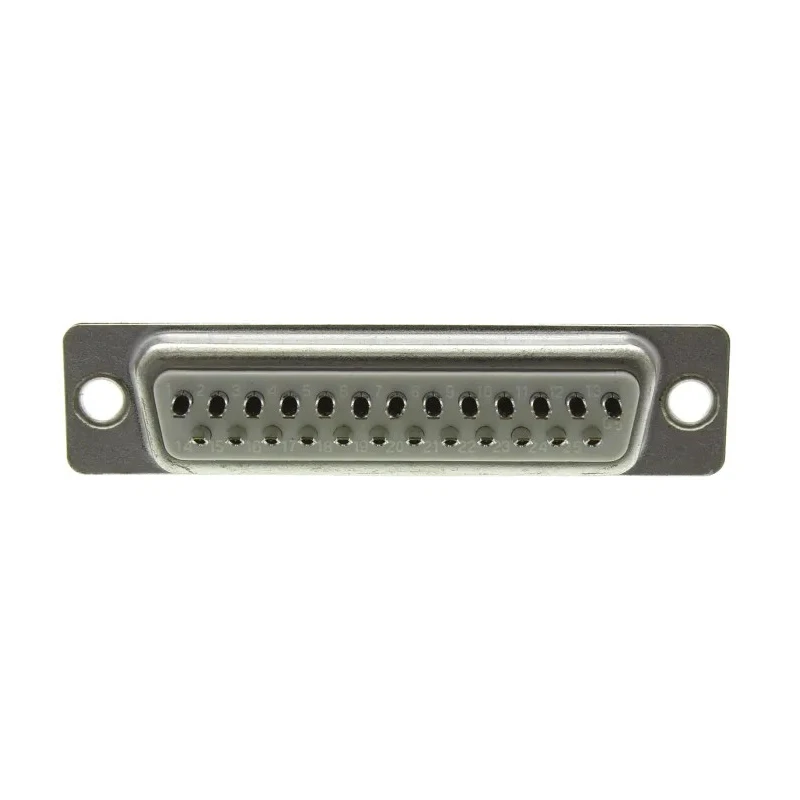

ASSMANN WSW 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 25 LL/Z

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 25 LL/Z

Name: ASSMANN WSW 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 25 LL/Z
Brand: ASSMANN WSW
SKU: 208237
Price: 1.02 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DF 25 LL/Z
Mount Type	Panel Mount
Housing Material	Metal
Contact Material	Phosphor Bronze
Series	A-DF
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	B

Key Features

This connector features a metal housing for enhanced durability and electromagnetic shielding.
It supports a current rating of 3A and a voltage rating up to 500V.
The contacts are gold plated phosphor bronze for excellent conductivity and corrosion resistance.
Operating temperature ranges from -55°C to 105°C suitable for varied environments.
Termination type is solder, ensuring secure and stable electrical joints.
It includes a 3.05 mm mounting flange hole on each side for firm panel attachment.
Connector is of female contact gender with a D-Sub shell size B.
Ideal for industrial, electronic, communication, and control applications.

Product Description

ASSMANN WSW A-DF 25 LL/Z is a high-quality 25 way straight 2.77 mm pitch panel mount D-Sub connector with a robust metal housing and solder termination. It is engineered to deliver reliable electrical performance in industrial and electronic applications requiring panel mounting connectors with 3A current and 500V voltage ratings.

Constructed with phosphor bronze contacts plated in gold flash, this connector ensures long-lasting conductivity and resistance to corrosion. The connector features a female contact configuration with a D-Sub shell size B, suitable for versatile interfacing needs.

Its operating temperature range from -55°C up to 105°C allows use in harsh environments including industrial controls, communications systems, laboratory equipment, and manufacturing processes.

The mounting is facilitated by two 3.05 mm holes on each flange side, allowing secure installation into panels for durable mechanical and electrical integration.

This connector series is noted for precise 2.77 mm pitch spacing between contacts, ensuring compatibility with a wide range of electronics and ensuring stable connections in demanding use cases.

Metal housing provides excellent shielding and mechanical strength. Gold plated phosphor bronze contacts guarantee reliable conductivity and corrosion resistance. Panel mount design with mounting flanges for stable installation.

Rated for 3A current and 500V voltage for industrial applications. Wide operating temperature range from -55°C to 105°C for flexibility in harsh conditions. Solder termination type for secure electrical connection. Female contact gender with D-Sub Shell size B for compatibility.

Manufactured in China by ASSMANN WSW ensuring quality standards. These connectors are suited for use in electronic, industrial automation, communication equipment, and control panel assembly projects, where durability and performance matter.
