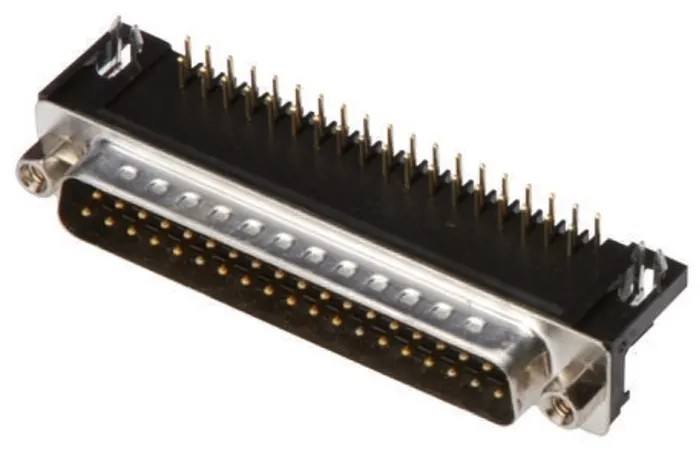

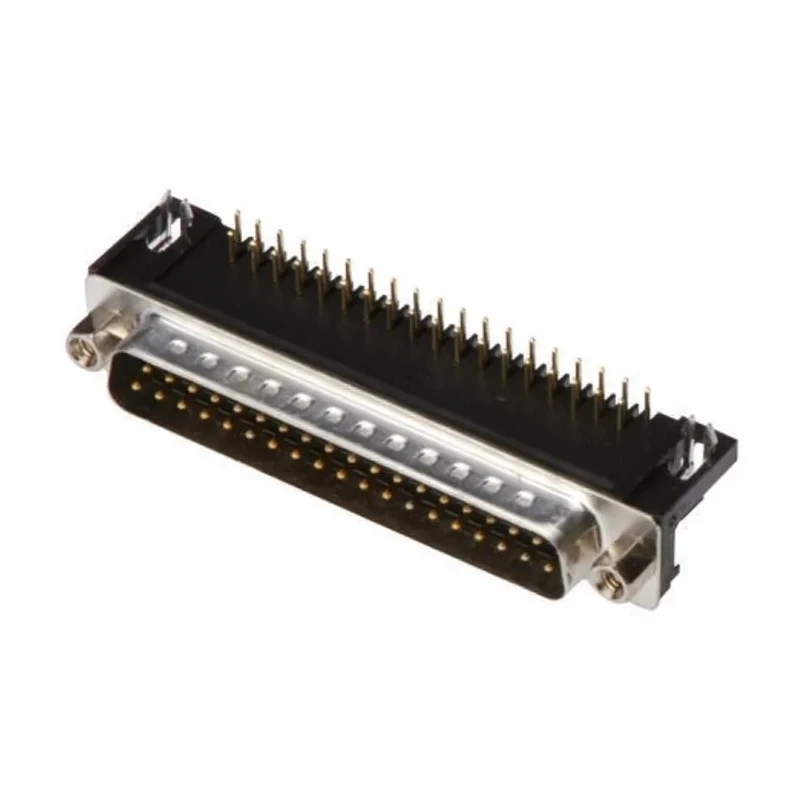

ASSMANN WSW D-Sub Connector 25 Contacts Right Angle Through Hole 2.77 mm Pitch 4 to 40 UNC Screw Lock A-DS 25 A/KG-T1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | A-DS 25 A/KG-T1 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | A-DS |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.77mm |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
Key Features
- The connector supports a current rating of 3A for stable electrical performance.
- It features a right-angle orientation suitable for PCB mounting.
- Housing is made from durable polybutylene terephthalate ensuring stability.
- Contacts are brass with gold and nickel plating enhancing conductivity and corrosion resistance.
- The pitch between contacts is 2.77 mm, supporting precise mating.
- Operating temperature range is from -40°C to 105°C for versatile environmental endurance.
- Mounting hardware includes a 4 to 40 UNC screw lock system for secure connections.
- Contact gender is male with solder termination for reliable soldering to PCBs.
Product Description
ASSMANN WSW A-DS 25 A/KG-T1 D-Sub Connector is a high-quality electronic connector designed for right-angle through-hole PCB mounting applications. It features 25 contacts arranged with a 2.77 mm pitch, providing precise and reliable connections within electronic circuitry and industrial equipment.
The robust polybutylene terephthalate housing offers durability and resistance to mechanical stress and temperature variations, with operational limits from -40°C to 105°C. Brass contacts plated with gold and nickel ensure excellent conductivity and long-term corrosion resistance, critical for stable signal and power transmission.
Rated for a current of 3A and voltage of 250V, this connector suits demanding electronic and industrial environments including power supply connectors, automation machinery, and instrumentation assemblies requiring secure and precise connections.
The connector includes a 4 to 40 UNC screw lock mounting hardware system to ensure mechanical stability and resistance to vibration or loosening. Male contact gender and solder termination type simplify assembly into printed circuit boards, enhancing production efficiency.
This D-Sub Connector series meets Euro-standard requirements and is manufactured with careful attention to reliability and industrial compliance. Made in China, it is ideal for electronics manufacturing, industrial electrical hardware, and power connection applications.
Reliable 25-contact layout with 2.77 mm pitch for precise connections. Durable polybutylene terephthalate housing withstanding wide temperature ranges. Brass contacts plated with gold and nickel for excellent conductivity and corrosion resistance.
Right angle orientation suited for through-hole PCB mounting use cases. 4 to 40 UNC screw lock mounting hardware for secure fastening. Supports 3A current and 250V voltage ratings for versatile applications. Male contact gender with solder termination for dependable PCB integration.
Ideal for electronics, control systems, power connectors, and industrial automation. Explore more connectors and electronic components in the Electronics & Electricals category on EnvMart, where precise industrial solutions meet demanding application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of 250V, making it suitable for various electronic and industrial applications.
The pitch between the contacts is 2.77 mm, which allows for precise mating during connections.
The housing is made from polybutylene terephthalate, while the contacts are brass plated with gold and nickel for enhanced conductivity and corrosion resistance.
The operating temperature range is from -40°C to 105°C, enabling it to function in various environmental conditions.
This model features a solder termination type, which simplifies the assembly process onto printed circuit boards.
It is designed for through-hole mounting and includes a 4 to 40 UNC screw lock mounting hardware system to ensure secure connections.
The connector has a male contact gender, which is standard for many electronic applications.
This D-Sub connector features 25 contacts, providing multiple connection points for electronic circuits.
The connector has a right-angle orientation, which is suitable for PCB mounting in tight spaces.
The connector is manufactured in China, adhering to industrial standards and requirements.
