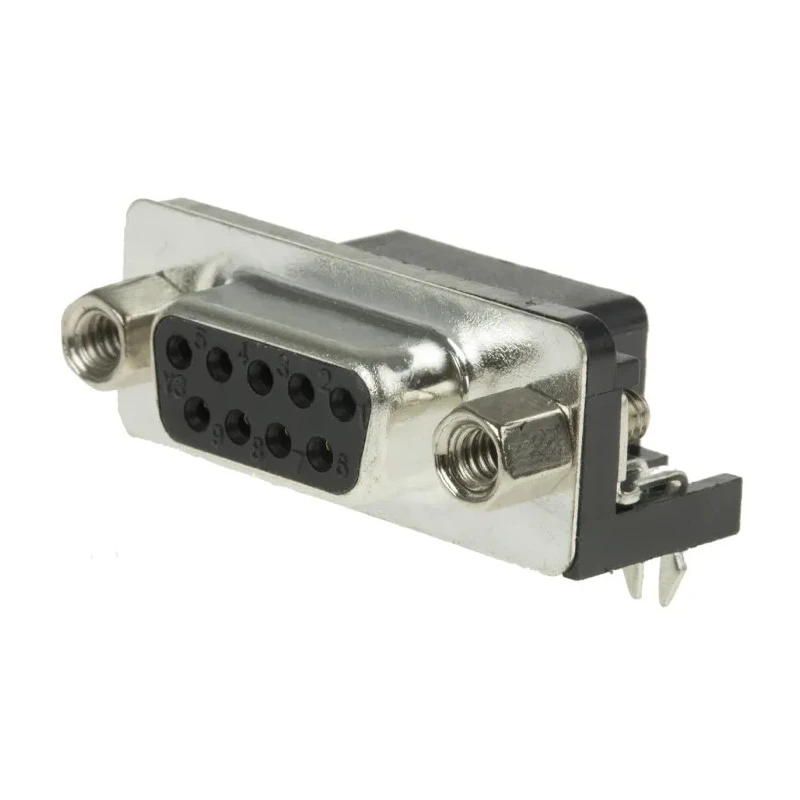

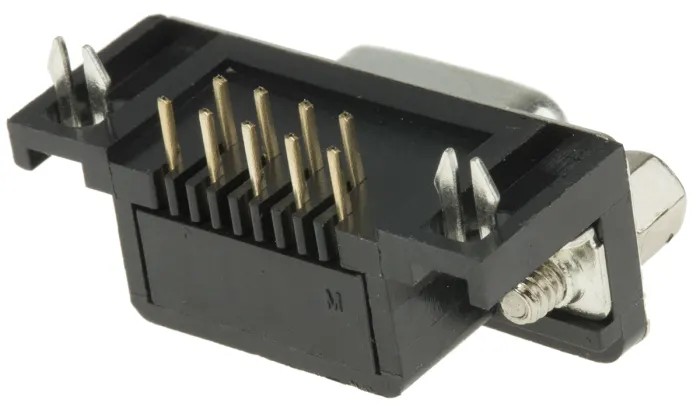

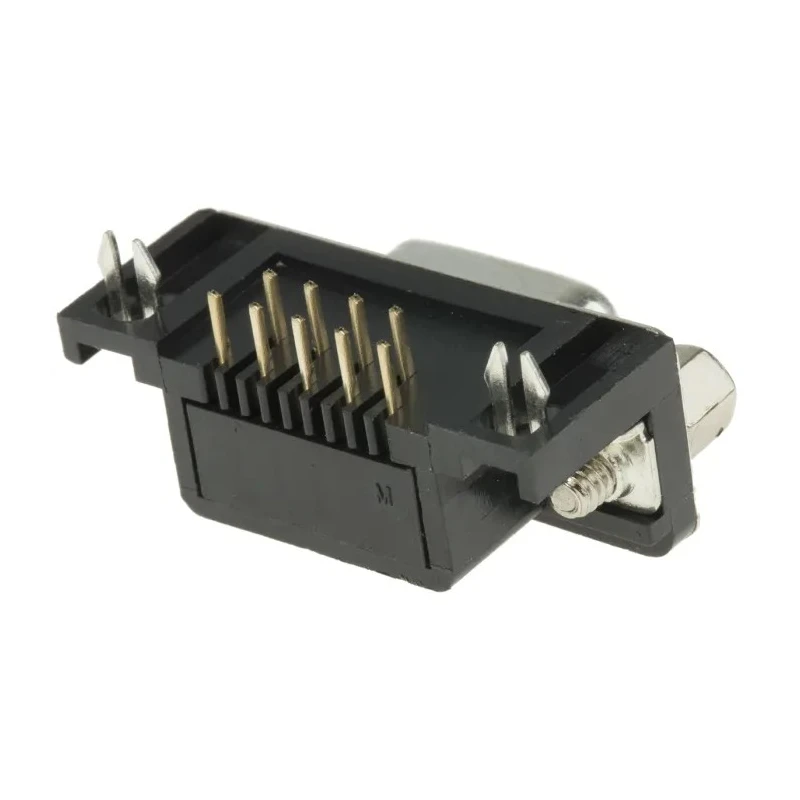

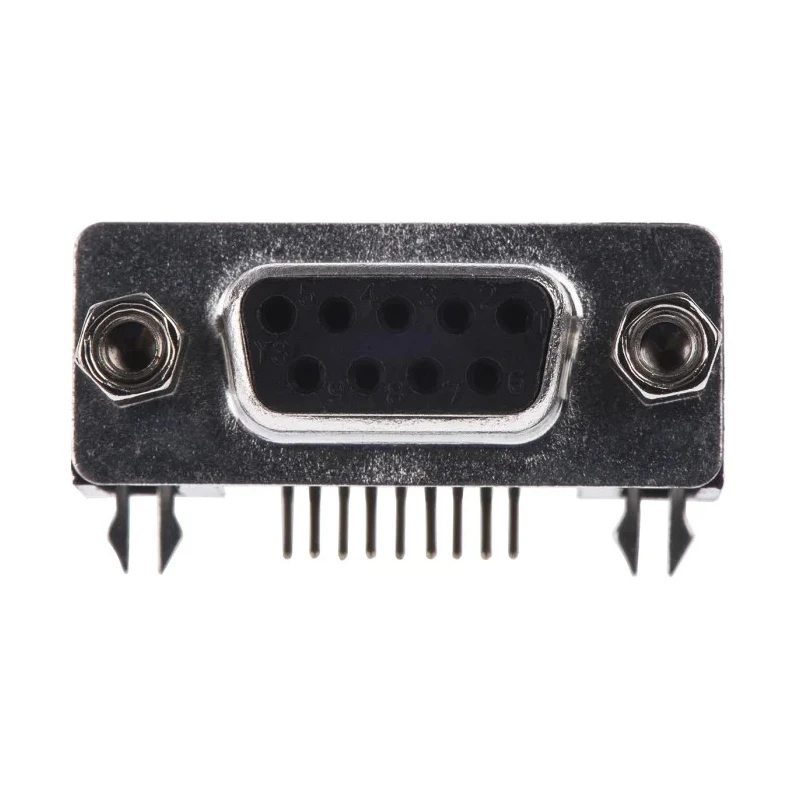

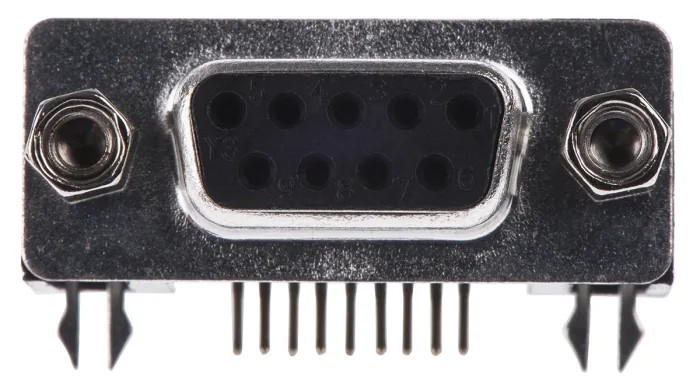

RS PRO D-Sub Right Angle 9 Way Through Hole Connector 2.77 mm Pitch 250V A-DF 09 A/KG-T2

ASSMANN WSW A-DF 09 A/KG-T2 is a 9 way right angle D-Sub connector featuring a 2.77 mm pitch and designed for through hole PCB mounting. It operates with a maximum current of 3A and voltage rating of 250V, making it suitable for various electronic and industrial applications requiring reliable connection interfaces.

The connector utilizes a polybutylene terephthalate housing which enhances mechanical strength and thermal stability, supporting an operating temperature range from -40°C to 105°C. Brass contacts with gold and nickel plating provide excellent conductivity and long-lasting corrosion resistance, ensuring consistent signal integrity in demanding environments.

It comes equipped with 4 to 40 UNC screw lock mounting hardware allowing secure attachment to PCBs, which is essential for systems subjected to vibration or mechanical stress. The right angle orientation optimizes PCB layout and space constraints while the solder termination ensures a robust and durable electrical connection.

This female connector belongs to the A-DF series with a DF-9 shell size, widely used in electronics manufacturing for data and signal transmission. Its design complies with USA standards for D-Sub connectors and facilitates easy integration into industrial, laboratory, manufacturing, and communication equipment setups.

Durable polybutylene terephthalate housing improves electrical insulation and mechanical endurance. Brass contacts plated with gold and nickel guarantee high conductivity and corrosion resistance. 4 to 40 UNC screw lock mechanism provides secure mounting to printed circuit boards.

Rated for 3A current and a voltage of 250V for dependable operation. Wide operational temperatures ranging from -40°C to 105°C suitable for harsh environments. Solder termination enables reliable and stable electrical joints.

Right angle orientation allows efficient PCB space utilization. Female connector gender compliant with D-Sub interface standards. Packaged ready for insertion improving production efficiency in industrial manufacturing.

This ASSMANN WSW D-Sub Connector is ideal for use in electronics, industrial equipment, and communication devices requiring rugged and high-quality interconnect solutions. Explore more connectors and related components in our Electronics & Electricals section to optimize your system designs.
