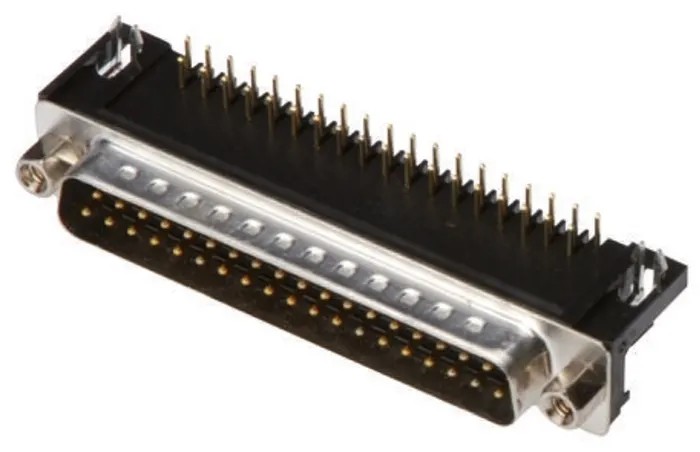

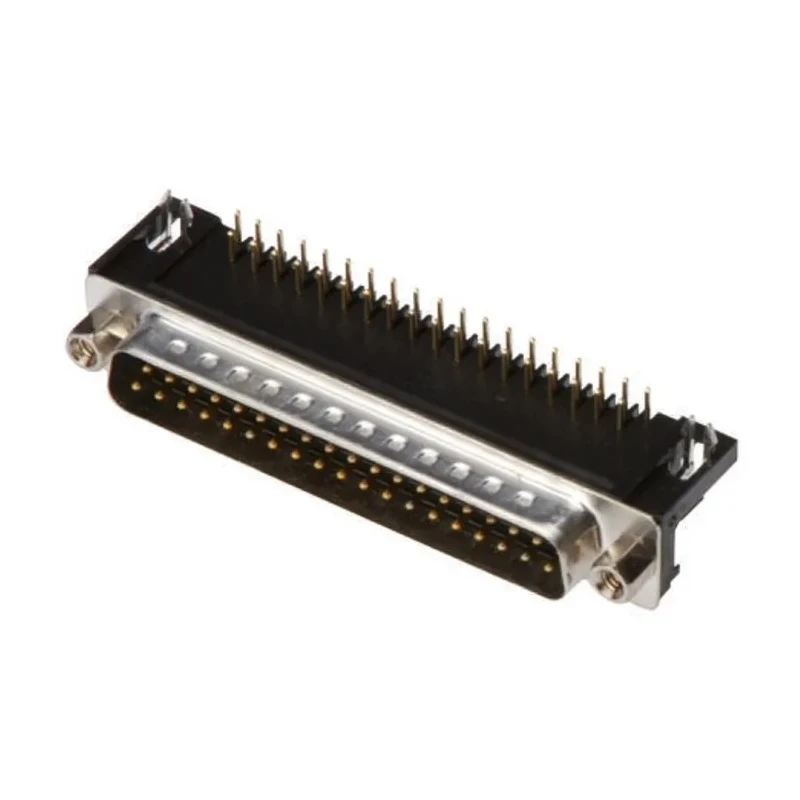

ASSMANN WSW 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T2

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T2

Name: ASSMANN WSW 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T2
Brand: ASSMANN WSW
SKU: 126001



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	A-DS 25 A/KG-T2
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold, Nickel
Number of Contacts	25
Contact Gender	Male
Connector Type D	D-Sub

Key Features

The connector supports 25 contacts with a 2.77 mm pitch for precise electronic connections.
Features a right angle orientation facilitating compact PCB layout and assembly.
Constructed with brass contacts plated with gold and nickel for enhanced conductivity and corrosion resistance.
The housing is made of durable Polybutylene Terephthalate ensuring electrical insulation and mechanical stability.
Rated for 250V voltage and 3A current, suitable for standard electronic component applications.
Operable in temperatures from -40°C to 105°C for reliable industrial performance.
Termination type is solder, ensuring secure and stable connections.
Includes 4 to 40 UNC screw lock mounting hardware for secure fixture in devices.

Product Description

ASSMANN WSW A-DS 25 A/KG-T2 is a 25 Way Right Angle D-Sub Connector with a 2.77 mm pitch, designed for through-hole PCB mounting applications. It features a durable Polybutylene Terephthalate housing and brass contacts plated with gold and nickel, ensuring excellent electrical performance and longevity. The connector supports a maximum current of 3A and voltage rating of up to 250V, making it suitable for a variety of electronic and industrial uses.

This connector operates reliably across a temperature range of -40°C to 105°C, enabling performance in demanding environmental conditions. The right angle orientation helps optimize PCB space and layout efficiency. Termination is performed by soldering, providing a strong mechanical and electrical bond. The included 4 to 40 UNC screw lock hardware ensures secure fastening and stable connections within assemblies.

ASSMANN WSW connectors are widely used in electronic manufacturing, instrumentation, telecommunications, and industrial automation due to their robust construction and reliable electrical characteristics. Their design supports ease of integration into PCB layouts and durable operation under mechanical stress.

The connector supports 25 contacts with a 2.77 mm pitch for precise electronic connections. Features a right angle orientation facilitating compact PCB layout and assembly. Constructed with brass contacts plated with gold and nickel for enhanced conductivity and corrosion resistance.

The housing is made of durable Polybutylene Terephthalate ensuring electrical insulation and mechanical stability. Rated for 250V voltage and 3A current, suitable for standard electronic component applications. Operable in temperatures from -40°C to 105°C for reliable industrial performance.

Termination type is solder, ensuring secure and stable connections. Includes 4 to 40 UNC screw lock mounting hardware for secure fixture in devices. Explore the Electronics & Electricals category at EnvMart for more connectors and components from reputed manufacturers.
