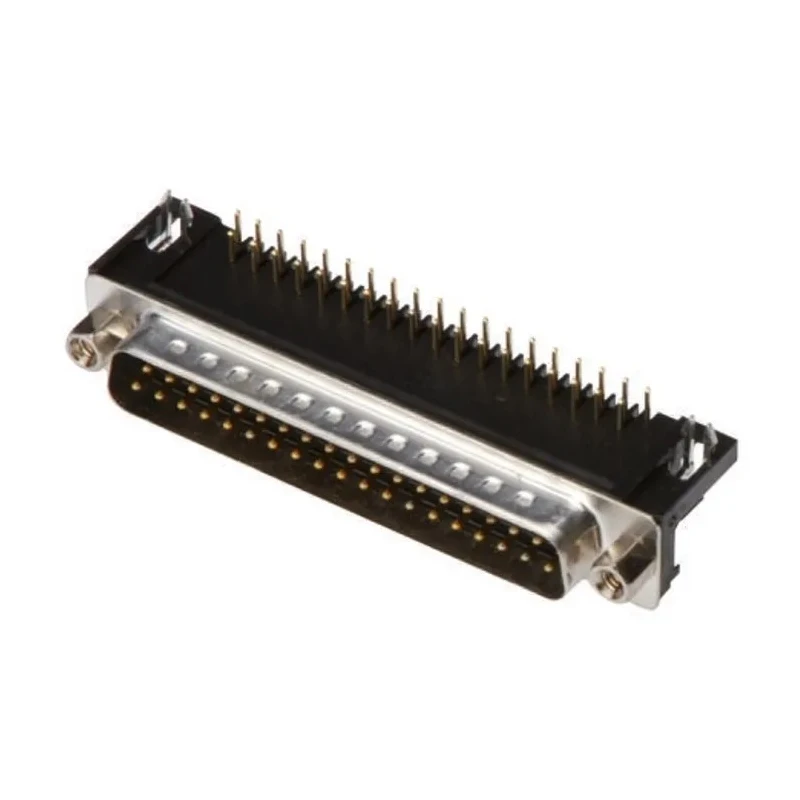

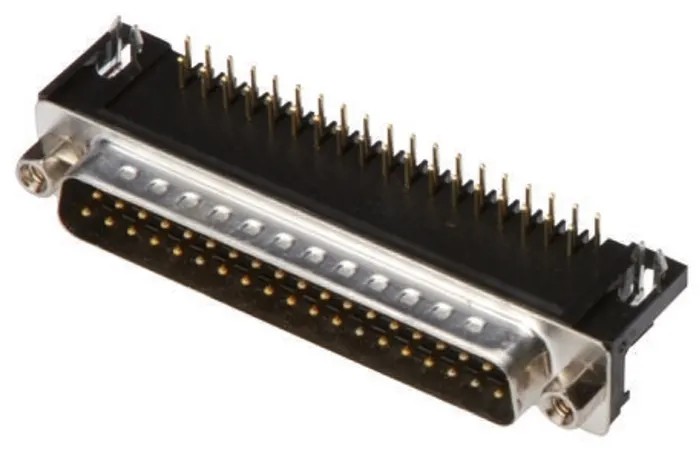

ASSMANN WSW A-DS 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 37 A/KG-T1

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW A-DS 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 37 A/KG-T1

Name: ASSMANN WSW A-DS 37 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 37 A/KG-T1
Brand: ASSMANN WSW
SKU: 126011



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	A-DS 37 A/KG-T1
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Standards/Approvals	UL94V-0, DIN 41652
Contact Plating	Nickel, Gold
Number of Contacts	37
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	15

Key Features

Constructed with polybutylene terephthalate housing for durability.
Features brass contacts plated with nickel and gold for reliable connectivity.
Operates at a voltage rating of 250V and supports a current of 3A.
Equipped with 4 to 40 UNC screw lock mounting hardware for secure assembly.
Designed for right angle orientation with a male connector gender.
Operating temperature range from -40°C to 105°C ensures suitability in varying environments.
Termination type is crimp for efficient wire connection.
Meets UL94V-0 and DIN 41652 standards for safety and performance.

Product Description

ASSMANN WSW A-DS 37 A/KG-T1 is a high-quality 37-way right angle D-Sub connector engineered for through-hole PCB mounting applications. This connector features a precise 2.77 mm pitch and robust polybutylene terephthalate plastic housing, ensuring both electrical insulation and mechanical stability.

Brass contacts with nickel and gold plating provide excellent conductivity and resistance to corrosion, making the connector suitable for demanding industrial environments. With a current rating of 3A and voltage rating of 250V, it supports reliable signal transmission.

The connector's right angle orientation allows for effective space management on PCBs, while the 4 to 40 UNC screw lock mounting hardware secures the connector firmly during operation. The termination method is crimp, enabling dependable wire connections.

This product operates efficiently in a wide temperature range from -40°C to 105°C, making it adaptable for various industrial, manufacturing, and electronic applications. It complies with UL94V-0 flammability standards and DIN 41652 specifications, underscoring its safety and industrial compliance.

Its male connector gender and size 15 shell align with the Euro-standard D-Sub connectors, making it compatible with numerous mating components in computing and communication industries.

Durable polybutylene terephthalate housing ensures longevity and insulation. Nickel and gold-plated brass contacts optimize electrical performance and corrosion resistance. 4 to 40 UNC screw lock hardware enhances mechanical stability and security.

Wide temperature range is suitable for diverse environmental conditions. Meets UL94V-0 and DIN 41652 standards for safety and quality assurance. Right angle orientation facilitates efficient PCB layout design. Crimp termination supports reliable and easy wire connections.

Suitable for industrial, electronic manufacturing, and telecommunications applications. Explore the comprehensive range of D-Sub Connectors at EnvMart for your precision electronic connection needs.
