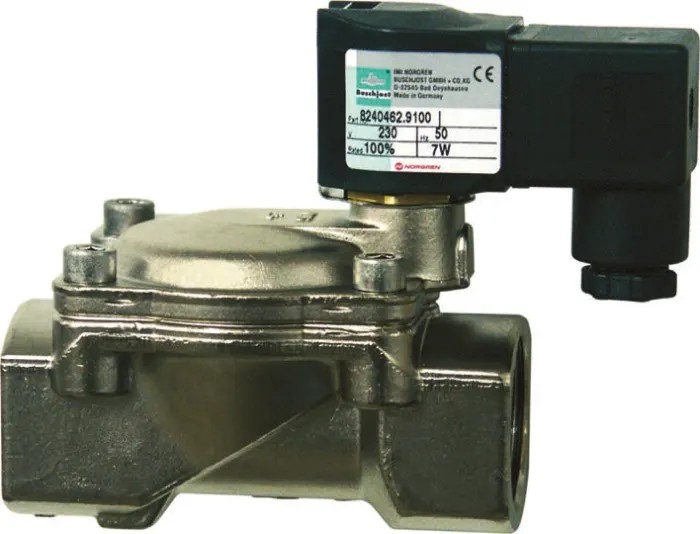

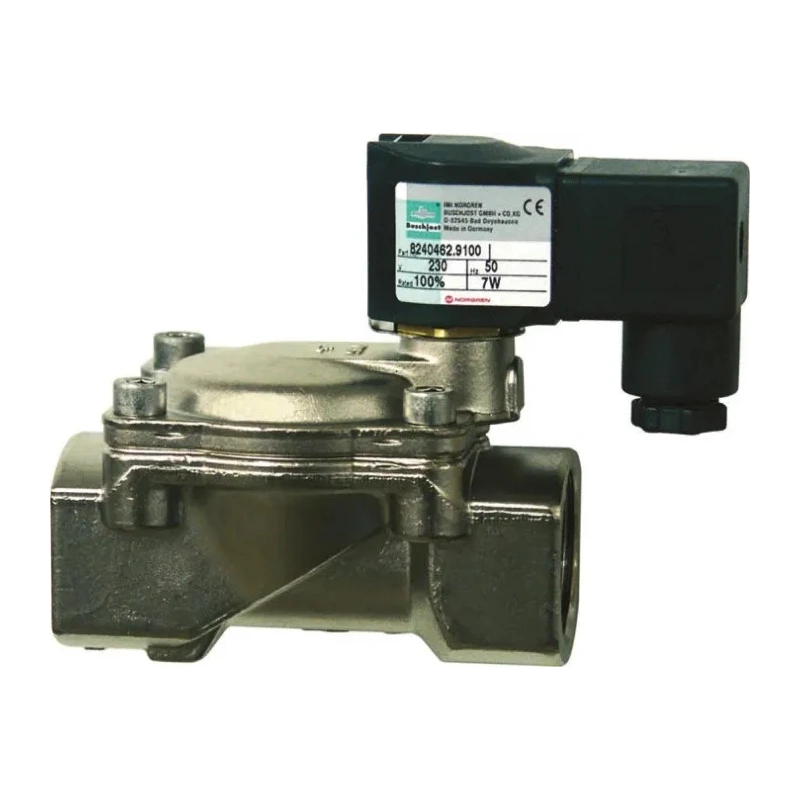

Buschjost Brass 2-Port Solenoid Valve NC G1/4, 230V AC, Orifice 8mm, Series 82400 8240000.9101.23050

Buschjost 8240000.9101.23050 is a 2-port normally closed solenoid valve engineered from strong brass with dimension G1/4 for both inlet and outlet ports. Operating at 230V AC, it is ideally suited for controlling neutral gaseous and liquid fluids such as air and water.

The valve has a compact and functional design that supports high flow rates with an orifice diameter of 8mm and a flow factor Kv of 1.9 m³/h. It integrates servo assist technology that ensures reliable valve actuation. The valve is built for operating temperatures from -10°C up to 50°C and can handle maximum compatible pressures matching G1/4 standards.

This solenoid valve complies with multiple industrial standards including CSA, EN 983, EN 292, EN 60529 IP 65, EN 60204-1, and DIN 40050, ensuring robust performance and durability. Additionally, it holds hazardous area certification Class EEx m II T4, making it suitable for use in potentially explosive environments.

The click-on design of the solenoid allows for tool-free replacement and maintenance, enhancing ease of use and minimizing downtime. Due to its reliable and sturdy construction, this valve is suitable for applications in industrial automation, HVAC systems, manufacturing processes, water treatment, and pneumatic systems.

For handling contaminated fluids, it is recommended to use a strainer in the pipeline system. Optional mounting positions are available; however, vertical installation with the solenoid on top is ideal.

The product is made in Germany, reflecting high quality manufacturing standards. The valve features a durable brass body suitable for air and water applications. It has an orifice diameter of 8mm allowing a flow factor Kv of 1.9 m³/h.

The default valve position is normally closed ensuring fluid control on power loss. Threaded inlet and outlet connections with G1/4 port size enable easy integration. Suitable for operating temperatures from -10°C to 50°C.

The valve operates at maximum pressure compatible with G1/4 port size standards. Its compact, functional design includes servo assist for reliable valve operation. Designed to meet CSA, EN 983, EN 292, IP65, and other industrial standards.

Hazardous area certified as Class EEx m II T4 for safety in explosive atmospheres. The valve offers a click-on solenoid feature for easy interchange without tools. Explore more Solenoid Valves and industrial valves at EnvMart for quality and reliability.
