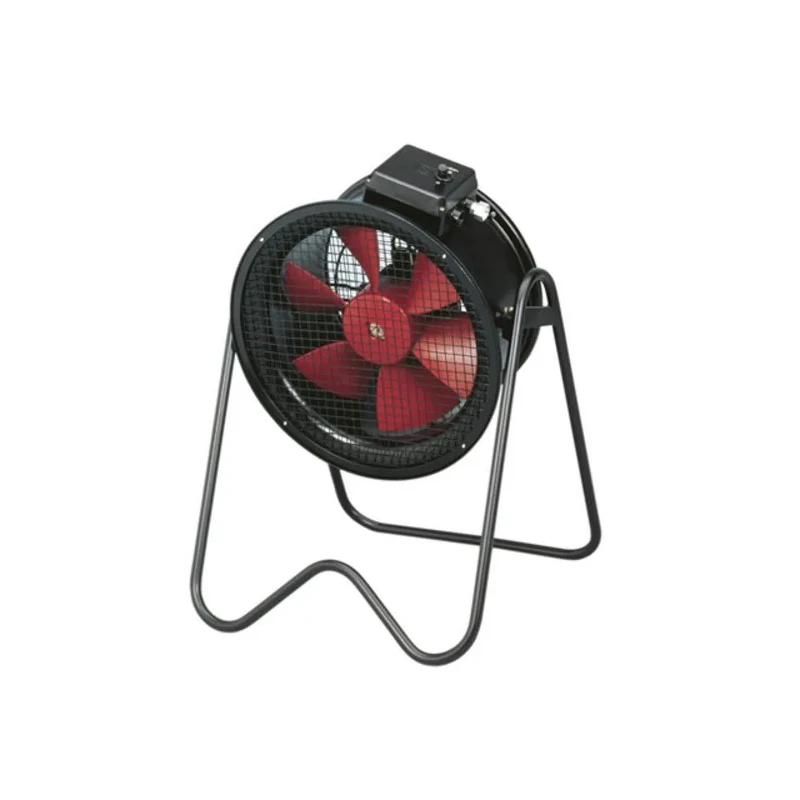

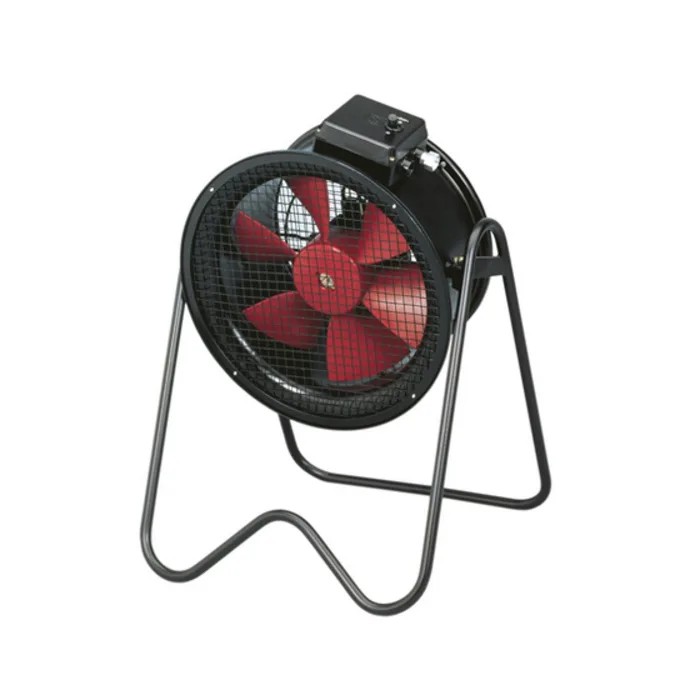

Soler&Palau Floor Fan 315 mm Blade Diameter 2250 m³/h Air Flow 3 Speed 230V Type C Plug 010358 -PBB:4-315

Soler&Palau 010358 -PBB:4-315 Floor Fan is a high-performance industrial cooling fan designed to deliver an air flow of 2250 m³/h. It features a 315 mm blade diameter, making it suitable for effective ventilation and cooling tasks in industrial, manufacturing, commercial, HVAC, and agricultural environments.

The fan casing is constructed from heavy gauge rolled sheet steel with a motor support frame of steel rod, electro-welded to provide excellent mechanical strength and durability. The entire assembly is coated with cataforesis primer and finished in black polyester paint, enhancing corrosion resistance.

The fan uses dynamically balanced plastic impellers manufactured from UV stabilized injection moulded plastic, reinforced with fiberglass for chemical and abrasion resistance. Steel wire finger guards on both the inlet and outlet sides impart comprehensive safety compliance and protection.

All electrical wiring connections are implemented through an IP65 rated terminal box mounted externally on the casing, equipped with a 2-pole On/Off switch and capacitor located inside to ensure motor reliability. The motor features Class F insulation and thermal protection, suitable for operation in temperatures ranging from -40 °C to +70 °C.

The unit operates on a single-phase 230 V @ 50 Hz power supply and includes a 3-speed control setting for adjustable airflow. It runs at a fan speed of 1300 rpm with a noise level of 54 dB, making it an efficient choice for noise-sensitive environments.

The fan stands on a robust cold-formed tubular steel frame that ensures stability during operation. Measuring 642 mm in height, 439 mm in width, and 470 mm in depth, it also features a maximum current rating of 600 mA. The plug provided is Type C, compatible with EU power outlets.

This fan is ideal for industrial ventilation, HVAC systems, manufacturing plants, workshops, and any application requiring reliable air movement. It is manufactured in Spain under stringent quality standards, although no formal certifications are listed.

The fan features a durable steel casing and support frame ensuring structural strength. Plastic impellers are UV stabilized, fiberglass reinforced, and resistant to chemicals and abrasion. Equipped with steel wire finger guards on both inlet and outlet for safety.

IP65 rated terminal box facilitates secure wiring connections with integrated thermal and speed controls. Designed for industrial and commercial use with noise level at 54 dB and fan speed of 1300 rpm. Operating temperature range from -40 °C to +70 °C with Class F motor insulation.

Single phase 230 V at 50 Hz operation ensures compatibility in many environments. Robust cold-formed tubular steel stand supports reliable floor placement. Explore the wide range of Industrial Fans and Cooling Solutions available at EnvMart to meet your ventilation and air circulation needs.
