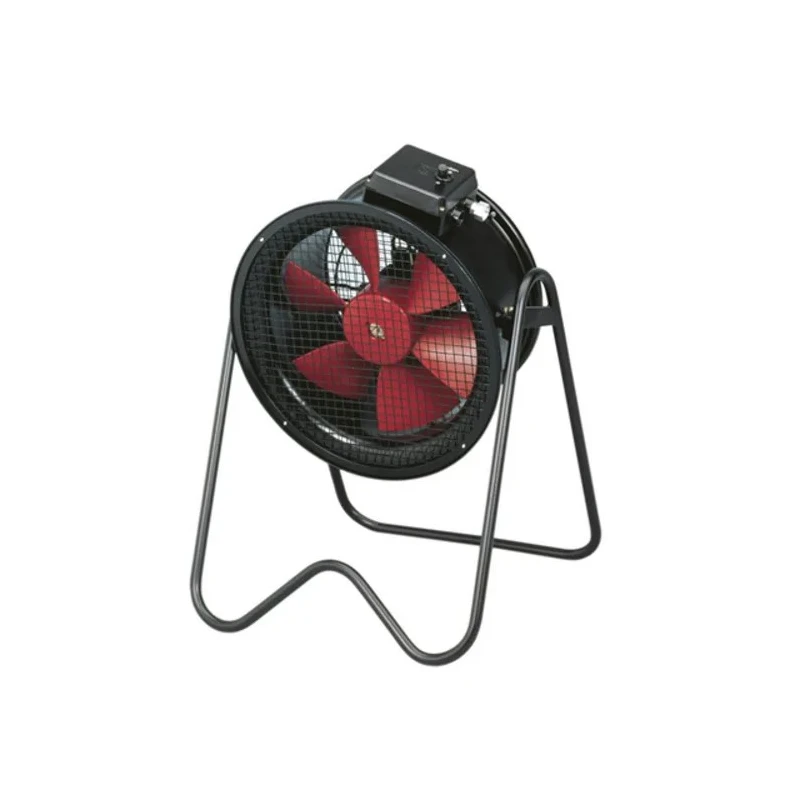

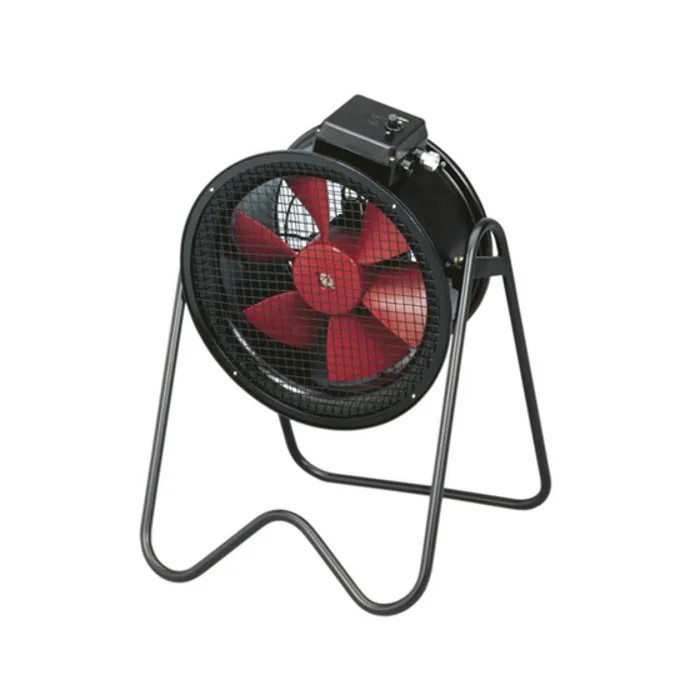

Soler&Palau 400 mm Blade Diameter Floor Fan 5200 m³/h Air Flow 3 Speed 230V 010359 - PBB:4-400

Soler&Palau 010359 - PBB:4-400 Floor Fan with a 400 mm blade diameter provides an air flow capacity of 5200 m³/h, powered by a single-phase 230 V AC supply. This floor fan is designed for effective industrial and commercial cooling and ventilation applications where high air volume and robustness are required.

The fan casing is constructed from heavy gauge rolled sheet steel, with the motor supported by electro-welded steel rod for enhanced structural integrity. The assembly is mounted on a cold formed tubular steel stand, providing sturdy support and stable positioning during operation. The entire structure is coated with a durable cataforesis primer and finished with black polyester paint for corrosion resistance.

Equipped with UV stabilised, fiberglass-reinforced plastic impellers, the fan delivers reliable performance and withstands exposure to various chemical and abrasive airstreams. Both the inlet and outlet sides are protected by robust steel wire finger guards for safety.

Wiring is facilitated via an IP65 rated terminal box located externally on the casing, which includes a 2-pole On/Off switch for convenient and secure control. The motor features Class F insulation and built-in thermal protection, enabling operation in ambient temperatures from -40 °C to +70 °C. The fan is speed controllable with three speeds, operating at a maximum of 1200 rpm and drawing a current up to 1.6A.

This fan is ideal for environments requiring reliable portable cooling solutions, such as manufacturing plants, industrial workshops, warehouses, and HVAC system supplementation. Equipped with a heavy gauge rolled sheet steel casing for durability.

Features a robust cold formed tubular steel stand for stable support. Plastic impellers are UV stabilised with fiberglass reinforcement for chemical and abrasive resistance. Fan operates quietly with noise level of 60 dB at 1200 rpm fan speed.

IP65 rated terminal box with 2-pole On/Off switch for safe wiring connections. Thermal protection and Class F insulation motor suitable for operating temperatures from -40 °C to +70 °C. Frame mounted ducted fan with 3-speed control and 1.6A maximum current draw.

Designed for industrial and commercial ventilation and cooling applications. Manufactured in Spain ensuring quality and performance standards. Browse the industrial fans category at EnvMart for a wide range of cooling and ventilation solutions suited to diverse applications and industry needs.
