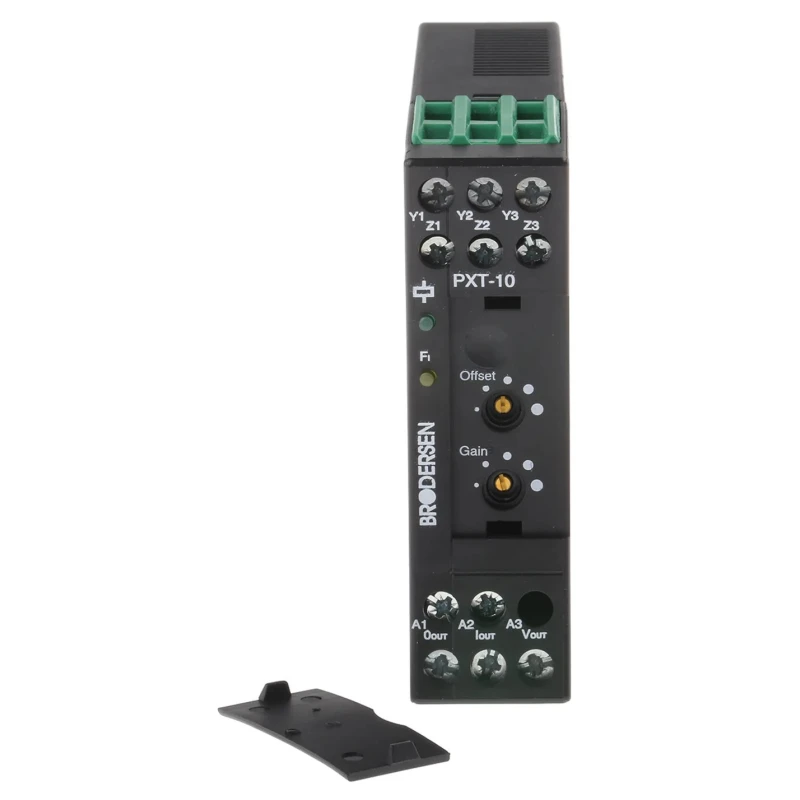

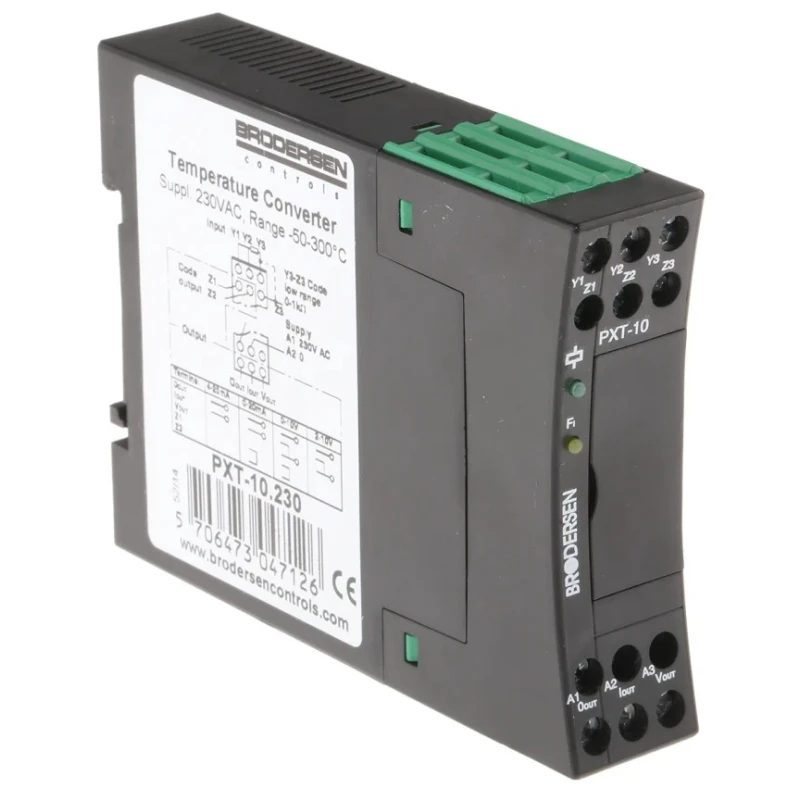

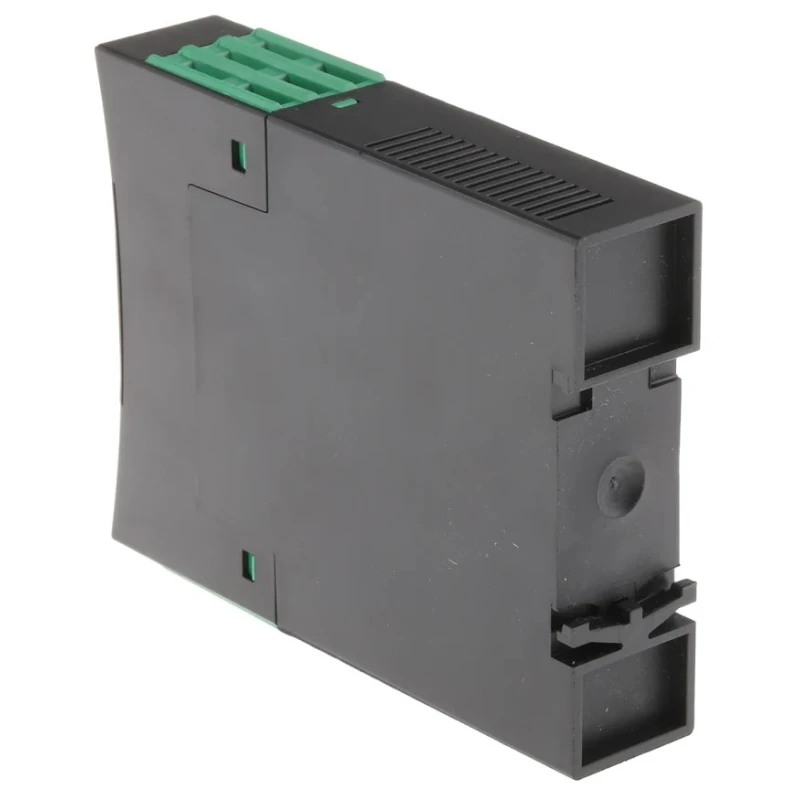

Brodersen Controls 9100 Series Signal Conditioner RTD Input Current/Voltage Output 230V AC Supply PXT-10.230/RS

Brodersen Controls PXT-10.230/RS 9100 Series Signal Conditioner is specially designed for industrial automation and control applications requiring accurate temperature measurement conversion. It accepts RTD inputs, specifically Pt100 sensors with 2 or 3-wire configurations, enabling precise temperature sensing across selectable ranges of -50 to +100°C or extended up to -50 to +300°C.

Equipped with galvanic isolation between output and supply, this signal conditioner provides stable and reliable signal output in harsh electrical environments. Its output options include selectable voltage or current ranges - 0 to 10V DC, 0 to 20mA, or 4 to 20mA - configured via terminals for flexibility in system integration.

The unit allows offset and gain adjustments through the front panel, facilitating calibration typically ±5% of the maximum signal to match application requirements. Housed in a durable NORYL enclosure and designed for DIN rail mounting, it fits standard industrial control panels, aiding rapid deployment and maintenance.

With an operating temperature range from -20°C to +55°C, the PXT-10.230/RS is suited for industrial, manufacturing, HVAC, and laboratory environments. It complies with RoHS standards, ensuring environmental safety and regulatory compliance.

This signal conditioner does not include the Pt100 sensor itself and is optimized for applications needing accurate conversion of temperature signals into standard current or voltage outputs for further processing or monitoring systems.

Equipped with galvanic isolation output to supply for enhanced signal integrity. Accepts Pt100 2 or 3-wire RTD sensor operation. Selectable input sensor temperature range between -50 to +100°C or -50 to +300°C. Output selectable via terminals: 0 to 10V, 0 to 20mA, or 4 to 20mA for versatile installation.

Offset and gain adjustable via front panel, allowing ±5% fine-tuning of maximum signal. Robust NORYL housing ensures durability and protection. Compact DIN rail mounting form factor for easy panel integration. Operating temperature range from -20°C to +55°C suitable for various industrial environments.
