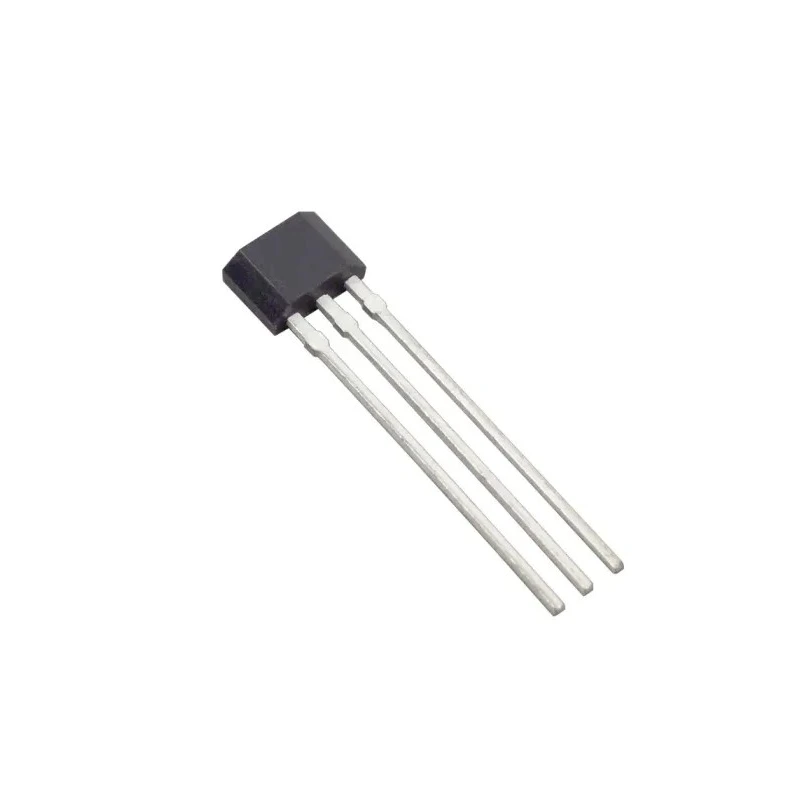

Melexis 1 Axis Through Hole Unipolar Hall Effect Sensor 3.5 V to 24 V UA Package 3-Pin MLX90217LUA-CAA-000-BU
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Melexis |
| Model | MLX90217LUA-CAA-000-BU |
| Technology | Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 4.3mm |
| Mount Type | Through Hole |
| Series | MLX90217 |
| Maximum Operating Temperature | 150°C |
| Package Type | UA |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Standards/Approvals | RoHS, EN 60749-20 |
| Pin Count | 3 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 3.5V |
| Supply Current | 3mA |
| Magnetic Type | Unipolar |
Key Features
- The sensor provides a self-adjusting digital output ideal for rotary position and speed sensing applications.
- It features a through hole mount type and a unipolar magnetic sensing technology optimized for high reliability.
- Operating temperature ranges from -40°C up to 150°C, suitable for harsh environmental conditions.
- This sensor includes a 10-bit on-chip A/D converter and has an open collector output with short circuit protection.
- The device supports zero speed detection and is insensitive to orientation changes.
- Supply current is low at 3 mA, enabling energy-efficient operation.
- It is used notably in automotive camshaft sensing and other motion detection applications.
- Manufactured in Taiwan, Province Of China, with compliance to RoHS and EN 60749-20 standards.
Product Description
Melexis MLX90217LUA-CAA-000-BU is a precision 1 Axis Through Hole Hall Effect Sensor designed to deliver reliable magnetic sensing for motion and speed detection. The sensor operates on a supply voltage range from 3.5 V to 24 V and comes in a UA type package with 3 pins, making it suitable for through hole mounting.
This hall effect sensor is engineered specifically for rotary position sensing, including applications such as automotive camshaft sensing and gear tooth speed sensing. It features a self-adjusting digital output and an open collector output stage with short circuit protection to enhance robustness.
The device’s unipolar magnetic technology enables it to detect magnetic fields with a south-facing bias magnet positioned at the backside of the IC. It includes a high-speed operation capability with no chopper delay and a 10-bit on-chip A/D converter for accurate measurements.
Its rugged design supports a broad operating temperature range from -40°C to 150°C, allowing use in demanding industrial, automotive, and manufacturing environments. The sensor is insensitive to orientation, enabling versatile installation configurations without affecting performance.
This model complies with RoHS and EN 60749-20 standards and is manufactured in Taiwan, Province Of China, ensuring high quality and reliability. The width of the component is 4.3 mm with a low supply current of just 3 mA, optimizing power consumption.
The sensor’s gear tooth detection technology ensures precision speed sensing. Zero speed detection enables accurate monitoring for stationary or low-speed machinery. Self-adjusting magnetic range improves ease of installation and adaptability.
The open collector output offers compatibility with various signal processing circuits. Shielded with robust short circuit protection for enhanced operational safety.
This Hall Effect sensor is widely applicable in industrial automation, automotive systems, robotics, and high precision manufacturing processes requiring reliable rotary position detection.
Explore the full range of Melexis sensors and motion sensor ICs for your electronic component needs at EnvMart.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates on a supply voltage range from 3.5 V to 24 V.
The maximum operating temperature is 150°C.
It features an open collector output with short circuit protection.
The width of the component is 4.3 mm.
The minimum operating temperature is -40°C.
The supply current is low at 3 mA, enabling energy-efficient operation.
It utilizes unipolar magnetic sensing technology optimized for high reliability.
This sensor is used notably in automotive camshaft sensing and other motion detection applications.
It is insensitive to orientation changes, allowing for versatile installation configurations without affecting performance.
It complies with RoHS and EN 60749-20 standards.
This model employs Hall Effect technology for magnetic sensing.
The sensor has a pin count of 3.
