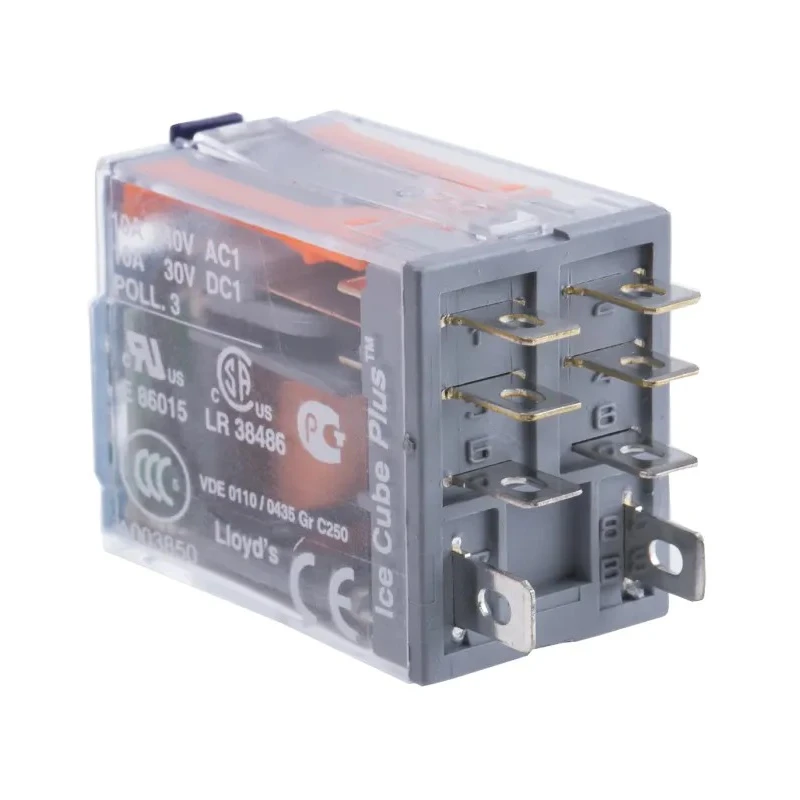

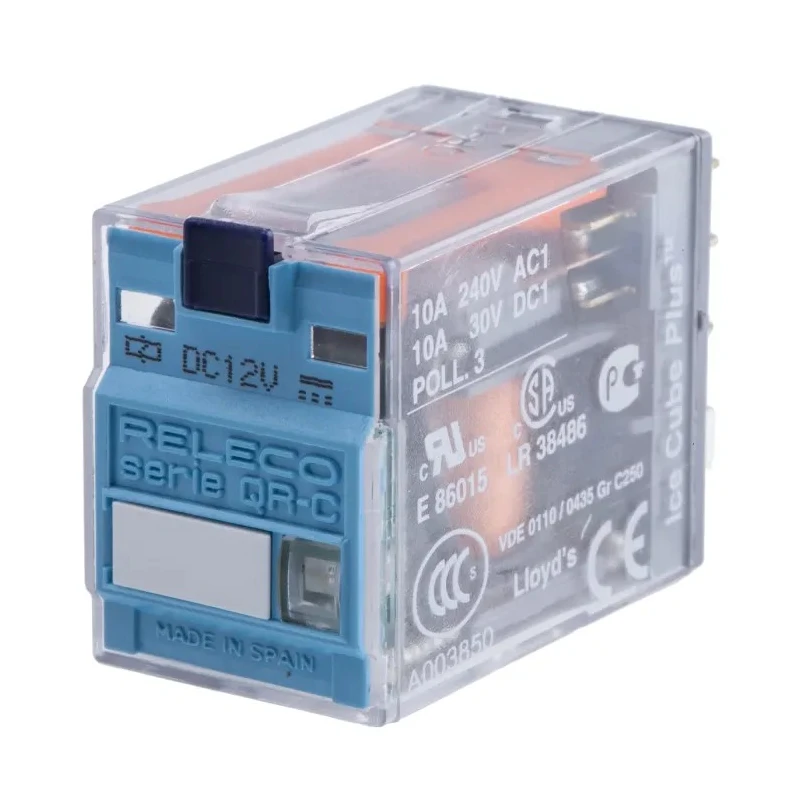

Releco PCB Power Relay 12V dc Coil 10A Switching Current DPDT C7-A20X / DC 12 V

Releco C7-A20X / DC 12 V PCB Power Relay is a high-quality power relay designed for precise and reliable switching in industrial, automation, and electrical control systems. With a 12V dc coil voltage and a 10A switching current capability, this DPDT (Double Pole Double Throw) relay supports versatile applications requiring multiple circuits control on a single device.

Constructed with silver alloy contacts, the relay ensures excellent conductivity, minimizing energy losses and enhancing durability. The coil resistance of 148 ohms combined with a low coil power of 1 watt supports efficient power consumption without compromising response speed or reliability.

Its compact form factor with dimensions of 28mm by 43mm and PCB mount type allows seamless integration into printed circuit boards, supported by quick connect terminals for secure and hassle-free electrical connections. The relay operates reliably within a broad ambient temperature range of -40°C to 60°C, making it suitable for a variety of environmental conditions in industrial and laboratory settings.

The product carries international safety and quality certifications, including IEC, EN, CSA, UL, and RoHS standards, ensuring compliance and user confidence. Additional built-in features such as a dual-function test button, LED status indication, and a mechanical flag indicator enhance troubleshooting and maintenance efficiency.

This relay is ideal for applications in industrial automation, HVAC control panels, manufacturing equipment, power switching systems, and other electrical instrumentation requirements that demand robust and precise switching solutions.

The relay features a durable silver alloy contact material for consistent conductivity. Coil resistance is 148Ω with a coil power rating of 1W ensuring efficient operation. Designed for PCB mounting with quick connect terminals for easy installation.

The relay operates within temperature limits from -40°C to 60°C, suitable for various environments. Standard approvals include IEC, EN, CSA, UL, and RoHS compliance for safety and quality assurance. Switching AC and DC voltage is rated at 30V each, with a switching power capacity of 2.5kVA.

Compact dimensions of 28mm length and 43mm height enable use in tight circuit layouts. Includes a test button with LED and mechanical flag indicators for easy diagnostics. Explore the collection of Power Relays at EnvMart for high-performance components tailored to industrial and commercial electrical applications.
