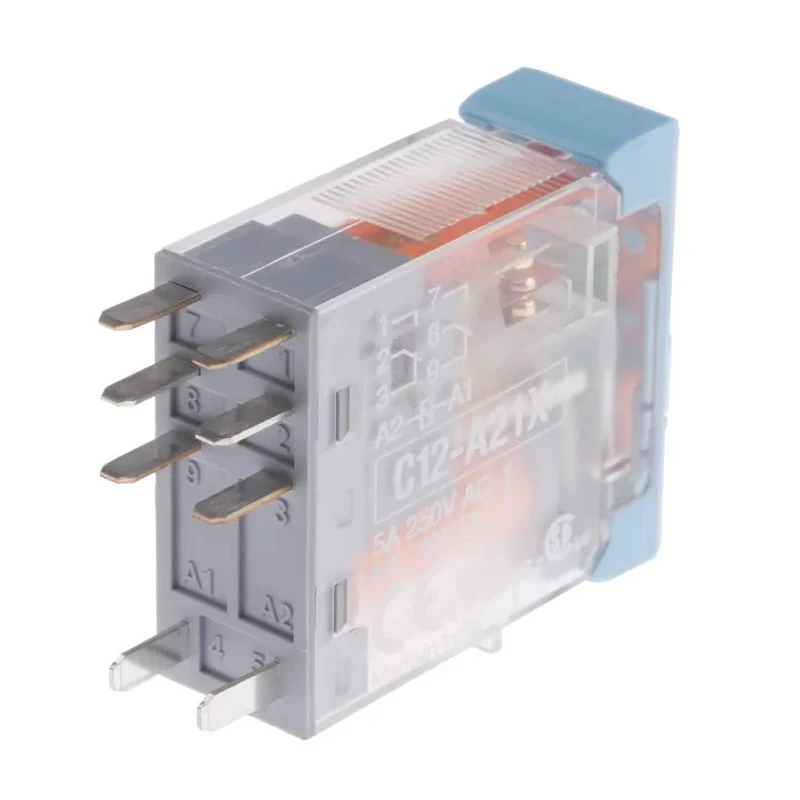

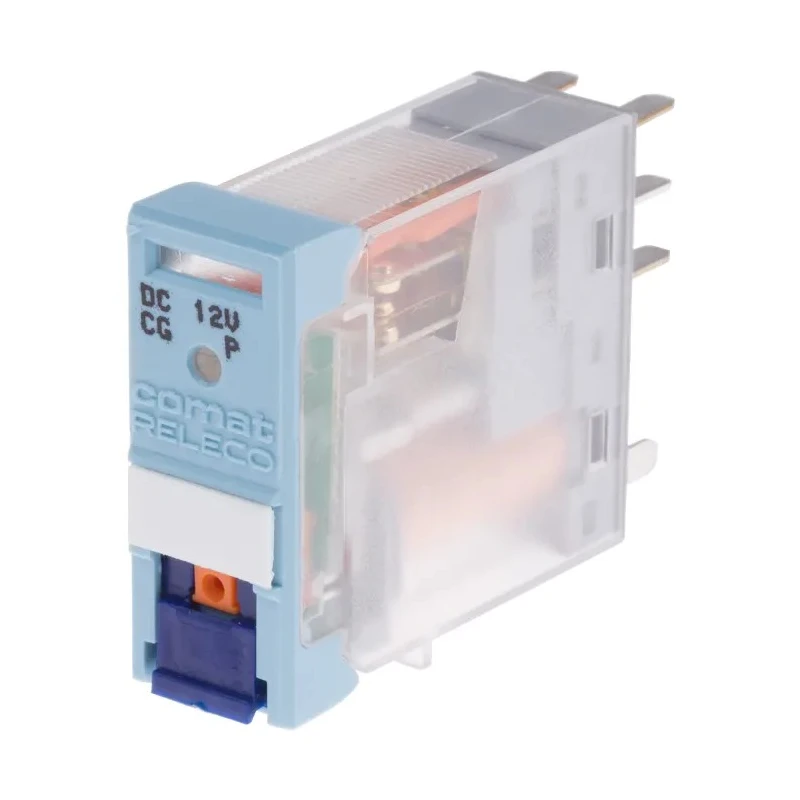

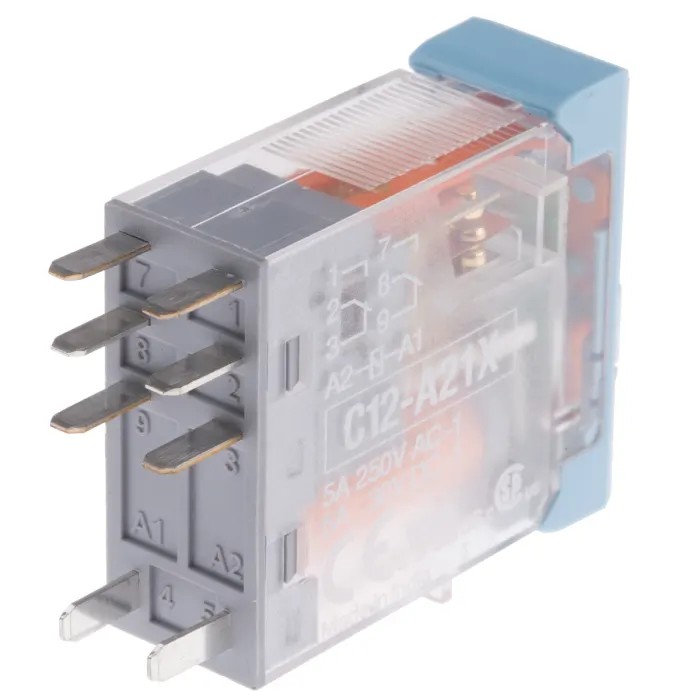

Releco PCB Power Relay 12V DC Coil 5A Switching Current DPDT C12A21X12D
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | Releco |
| Height | 35.4mm |
| Operating Temperature Range | -20 to +60°C |
| Length | 28.8mm |
| Model | C12A21X12D |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | C12 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, EN, IEC, RoHS, UL |
| Coil Resistance | 224Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 700mW |
Key Features
- Features a 12V DC coil voltage for precise control.
- DPDT contact configuration supports dual pole dual throw switching.
- 5A switching current rating suitable for moderate load applications.
- Gold plated contacts ensure durability and reliable electrical connection.
- Through-hole terminal mount type for secure PCB installation.
- Operating temperature range from -40°C to 60°C ensures versatility in various environments.
- C12 series design optimized for power relay performance.
- Includes a dual function test button for push-to-test and latch operation.
Product Description
Releco C12A21X12D PCB Power Relay is a high-quality DPDT power relay featuring a 12V DC coil and a 5A switching current, designed for reliable operation in industrial environments. It supports switching AC voltage up to 250V and DC voltage up to 30V, with a switching power capacity of 1.2 kVA. This relay’s gold plated contact material offers low contact resistance and enhanced longevity.
The relay is mounted via through-hole terminals on a PCB, making it suitable for automation, electrical control, and signal conditioning applications across industrial, manufacturing, and laboratory settings. The device operates efficiently with a coil power consumption of 700mW and coil resistance of 224 ohms. It is rated to function within a wide temperature range from -40°C minimum to 60°C maximum operating temperatures, ensuring performance stability in varied conditions.
Additional features include a robust industry-standard C12 series layout, mechanical flag indicators, and a dual function test button allowing push-to-test or lift-to-latch verification. Accessories such as 16mm wide sockets and bridge bars for coil and contact linking are available separately to enhance installation flexibility.
12V DC coil voltage for consistent and controlled switching. DPDT contact configuration supports dual pole and dual throw functionality. 5A switching current with 1.2kVA switching power capacity. Gold plated contacts ensure robust and reliable electrical connections.
Through-hole PCB mount secure installation. Operating temperature range from -40°C to 60°C for versatile application environments. Includes dual function test button for operational diagnostics. Complies with CSA, EN, IEC, RoHS, and UL standards ensuring quality and safety.
Manufactured in Spain maintaining premium industrial standards.
This power relay is ideal for use in electrical, industrial automation, manufacturing, and HVAC control systems. Its robust design and standard compliances make it a dependable component in demanding environments. Browse EnvMart for more relay products and accessories to enhance your electronic assemblies and automation projects.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, providing precise control for switching applications.
This model has a switching current rating of 5A, making it suitable for moderate load applications.
It features a DPDT (Dual Pole Dual Throw) contact configuration, allowing for versatile switching options.
The relay can switch AC voltage up to 250V and DC voltage up to 30V.
It operates efficiently within a temperature range of -40°C to 60°C, ensuring stability in various environments.
This relay utilizes a through-hole terminal mount type for secure installation on a PCB.
The coil resistance is 224 ohms, which is essential for determining the relay's power consumption.
The coil power consumption is 700mW, which is typical for relays of this type.
The contacts are made from gold plated material, which helps ensure reliable electrical connections and low contact resistance.
It complies with CSA, EN, IEC, RoHS, and UL standards, ensuring it meets quality and safety requirements.
This relay includes a dual function test button for push-to-test and latch operation, enhancing its usability.
This power relay is manufactured in Spain, adhering to premium industrial standards.
