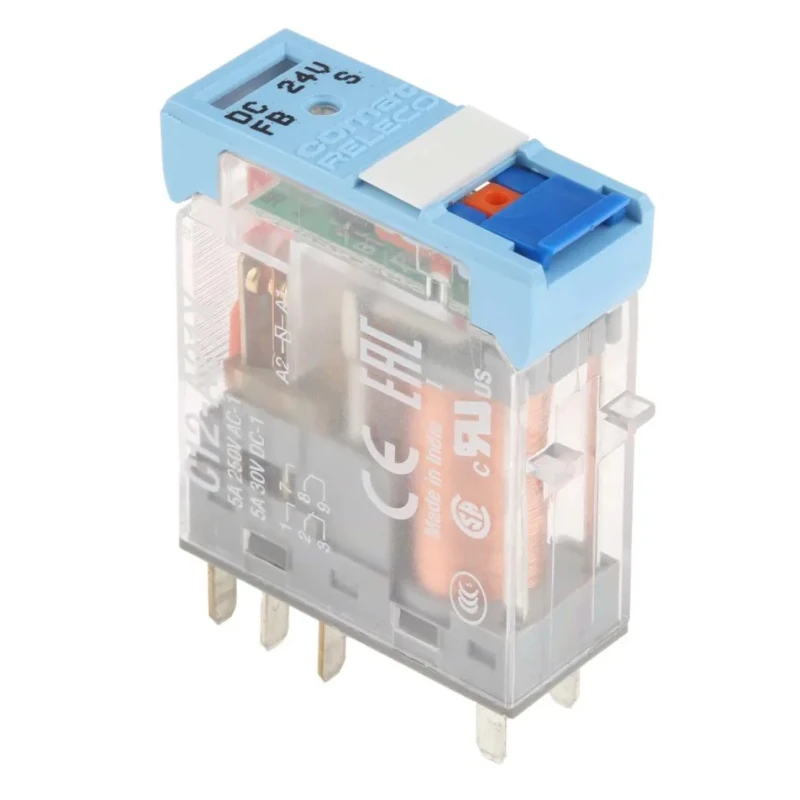

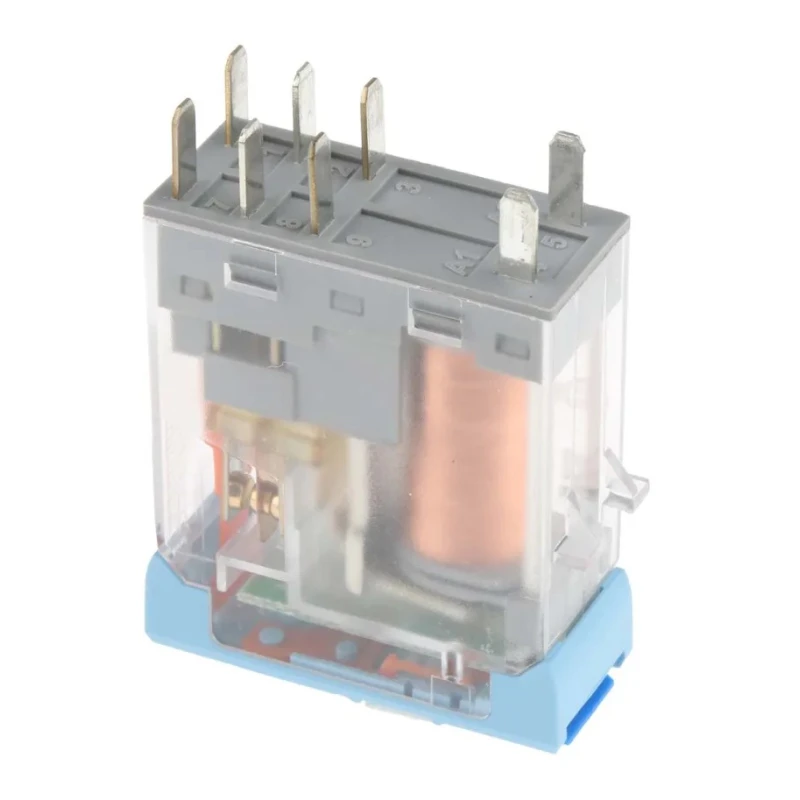

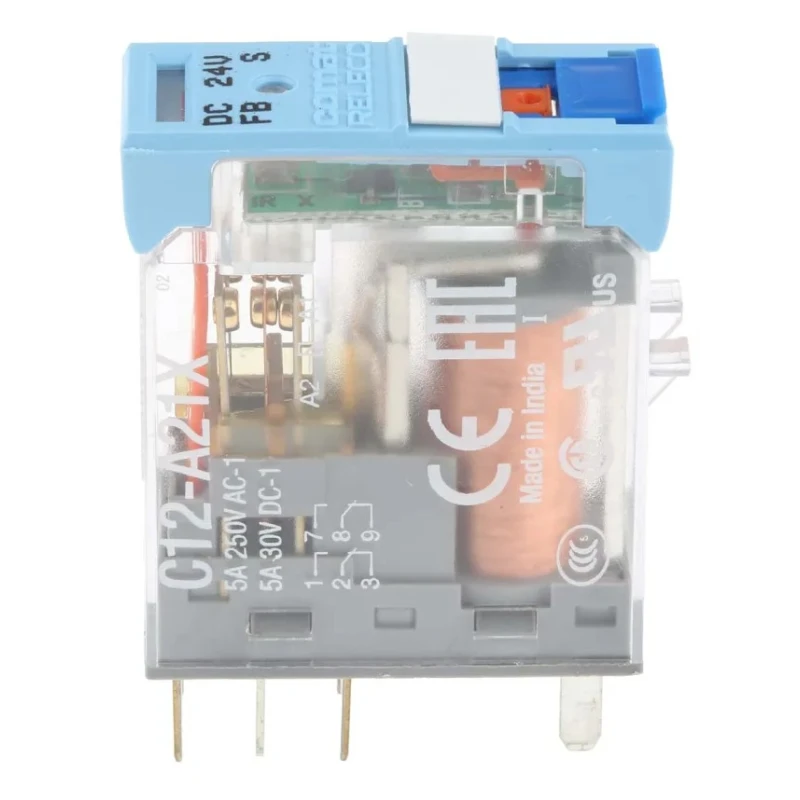

Releco PCB Power Relay 24V DC Coil 5A Switching Current DPDT C12A21X24D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 35.4mm |
| Length | 28.8mm |
| Model | C12A21X24D |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | C12 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS, CSA, EN, IEC, UL |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 742Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 700mW |
Key Features
- The relay features a coil power consumption of 700mW for energy-efficient operation.
- It has gold-plated contacts ensuring excellent conductivity and durability.
- The device operates between -40°C and 60°C, suitable for a wide range of industrial environments.
- Quick connect terminals allow for easy and secure electrical connections.
- Includes a colored test button with dual function for testing and latching.
- Supports switching of AC and DC voltages up to 250V and switching power of up to 1.2 kVA.
- Robust industrial terminal blades enhance mechanical stability during mounting.
- Compact dimensions with a length of 28.8 mm and height of 35.4 mm fit standard PCB layouts.
Product Description
Releco C12A21X24D PCB Power Relay is a non-latching, 2-pole DPDT relay designed for PCB mounting in electrical and automation applications. It features a 24V DC coil and a switching current rating of 5A, making it suitable for controlling medium-power circuits with high reliability.
The relay includes a color-coded test button, LED indicator, and mechanical flag indicator for visual status monitoring and manual testing or latching. Its coil power consumption is 700mW, offering efficient performance within an operating temperature range of -40°C to 60°C.
Gold-plated contacts provide enhanced conductivity and long service life, while quick connect terminals facilitate fast and secure connections. The relay can switch both AC and DC voltages up to 250V with a maximum switching power of 1.2 kVA, meeting demanding industrial and commercial power control needs.
Compact and robust, the relay is 28.8 mm long and 35.4 mm high, allowing integration in tight PCB designs. It meets multiple standards and approvals including RoHS, CSA, EN, IEC, and UL, ensuring compliance with international safety and quality regulations.
Typical applications include industrial automation systems, control panels, HVAC equipment, and other electronics requiring reliable power switching. The product is ideal for use in industrial and manufacturing environments where durability and precision control are critical.
The relay features a coil power consumption of 700mW for energy-efficient operation. It has gold-plated contacts ensuring excellent conductivity and durability. The device operates between -40°C and 60°C, suitable for a wide range of industrial environments.
Quick connect terminals allow for easy and secure electrical connections. Includes a colored test button with dual function for testing and latching. Supports switching of AC and DC voltages up to 250V and switching power of up to 1.2 kVA.
Robust industrial terminal blades enhance mechanical stability during mounting. Compact dimensions with a length of 28.8 mm and height of 35.4 mm fit standard PCB layouts. Explore more products from Releco and browse our extensive range of Power Relays and contactors on EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 5A, making it suitable for controlling medium-power circuits.
This model operates with a coil voltage of 24V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay operates within a temperature range of -40°C to 60°C, suitable for various industrial environments.
The relay has compact dimensions of 28.8 mm in length and 35.4 mm in height, allowing for integration in standard PCB layouts.
It features quick connect terminals for easy and secure electrical connections.
The maximum switching power supported by this relay is up to 1.2 kVA.
The contacts of this relay are made of gold-plated material, ensuring excellent conductivity and durability.
It meets multiple standards including RoHS, CSA, EN, IEC, and UL, ensuring compliance with international safety and quality regulations.
The relay has a coil power consumption of 700mW, providing energy-efficient operation.
Typical applications include industrial automation systems, control panels, HVAC equipment, and other electronics requiring reliable power switching.
Yes, it supports switching of both AC and DC voltages up to 250V.
