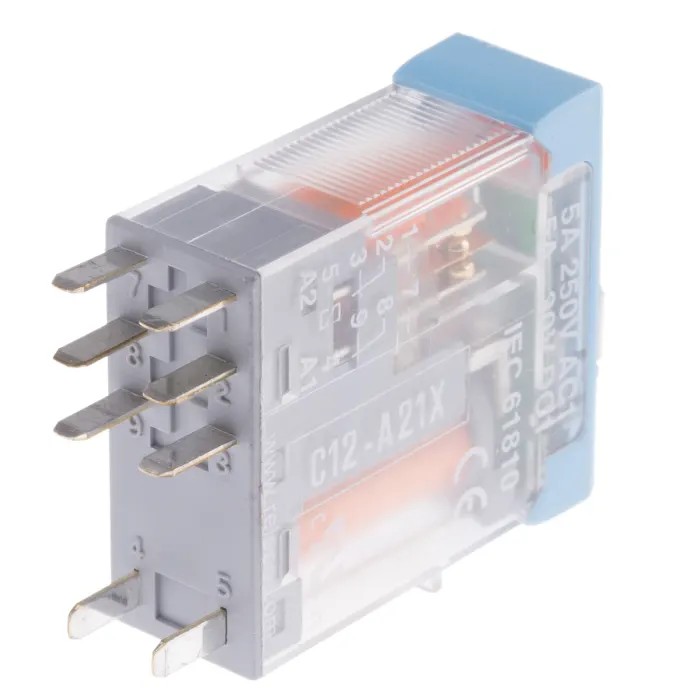

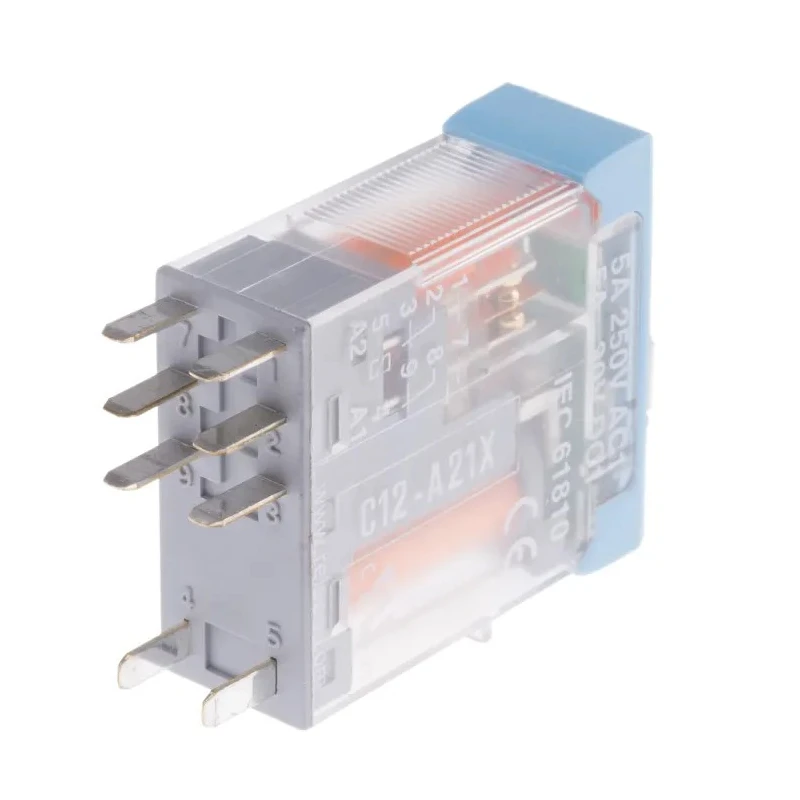

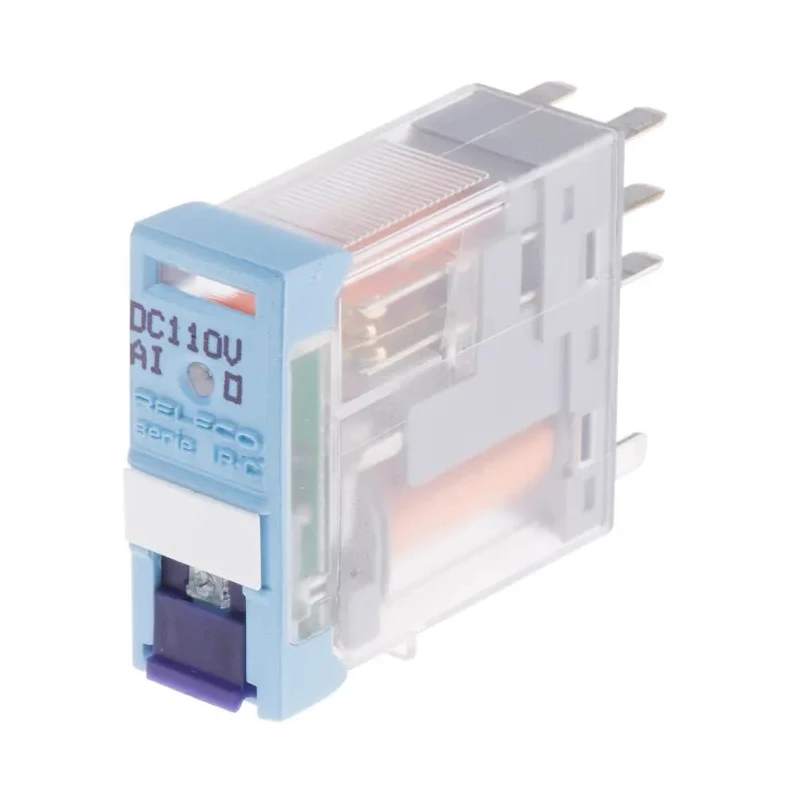

Releco PCB Power Relay 110V dc Coil 15A Switching Current DPDT C12A21X110D

Releco C12A21X110D PCB Power Relay is a high performance DPDT relay designed for industrial and automation applications requiring reliable switching. It features a 110V DC coil with a coil resistance of 19.9 kΩ and coil power of 700 mW, optimized for low power consumption on PCB mounts with quick connect terminals.

The relay supports a 15A switching current and can handle maximum switching voltages of 250V AC or DC. It is ideal for electrical, automation, and signal conditioning use cases in manufacturing, HVAC systems, and control panels.

This relay operates efficiently within a wide temperature range from -20°C up to 60°C, with a minimum operating temperature of -40°C, making it suitable for harsh industrial environments. The gold-plated contact material ensures excellent conductivity and durability, while the C12 series construction provides robust industrial terminals for secure connections.

It includes LED indication and a mechanical flag indicator to provide visual status feedback. Additionally, the dual-function test button offers convenient push-to-test or lift-to-latch operation, aiding installation and troubleshooting.

The compact dimensions (length 28.8mm, width 12.5mm, height 35.4mm) make this relay suitable for space-constrained PCB layouts. The product complies with RoHS standards, supporting environmentally responsible applications.

Accessories such as 16mm wide sockets, coil bridging bars, and contact linking bridge bars are available separately to enhance functionality and ease integration. Releco’s C12A21X110D PCB Power Relay is designed to meet industrial relay requirements with durability, efficiency, and versatility for diverse electrical control tasks.

Explore a wide range of Power Relays by browsing the Electronics & Electricals category on EnvMart for advanced industrial components. The relay supports a switching current capacity of 15 amperes. It operates within a temperature range of -20 to +60°C ensuring stable performance.

Gold-plated contacts enhance conductivity and reduce contact resistance. Quick connect terminal type facilitates easy PCB mounting and installation. The coil resistance is 19.9k ohms with coil power consumption of 700 milliwatts.

The robust construction includes industrial terminals with LED and mechanical flag indicators. Dual function test button allows push-to-test or lift-to-latch functionality. Maximum switching voltage supported is 250V AC or DC.

The relay has compact dimensions of 28.8mm (L) x 12.5mm (W) x 35.4mm (H). It is RoHS compliant ensuring environmental safety.
