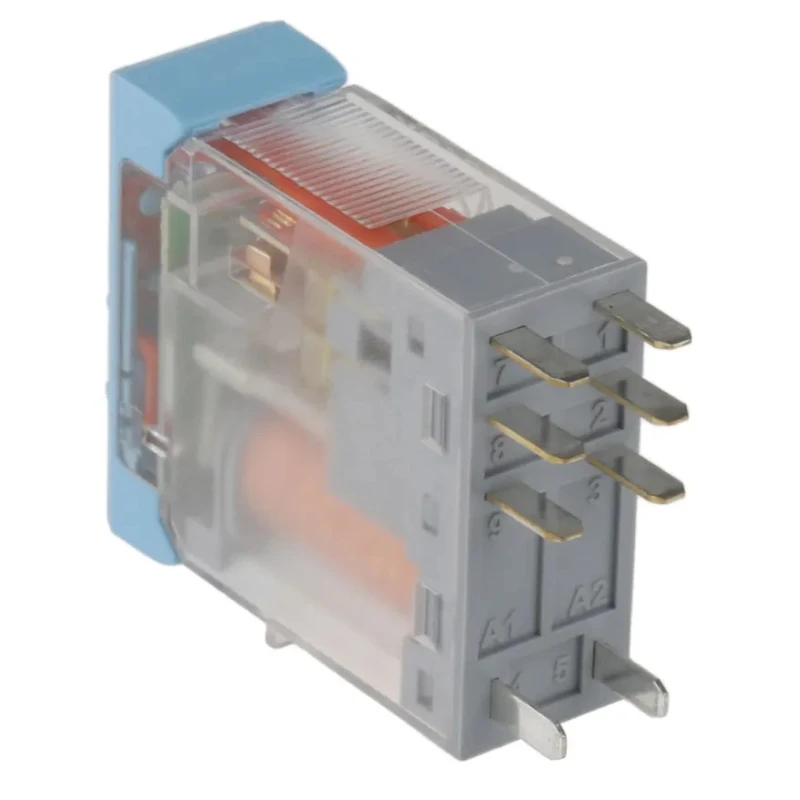

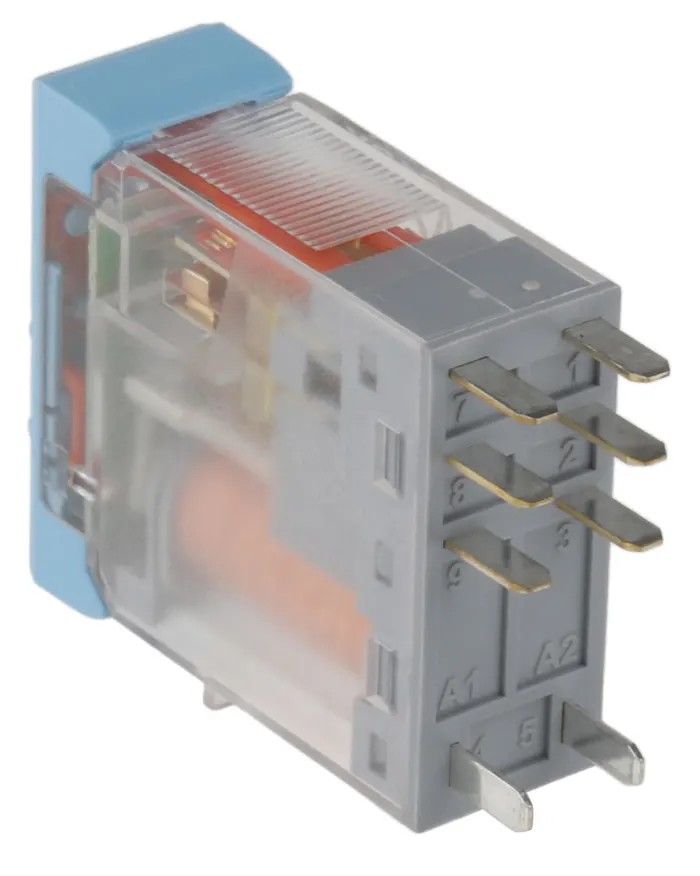

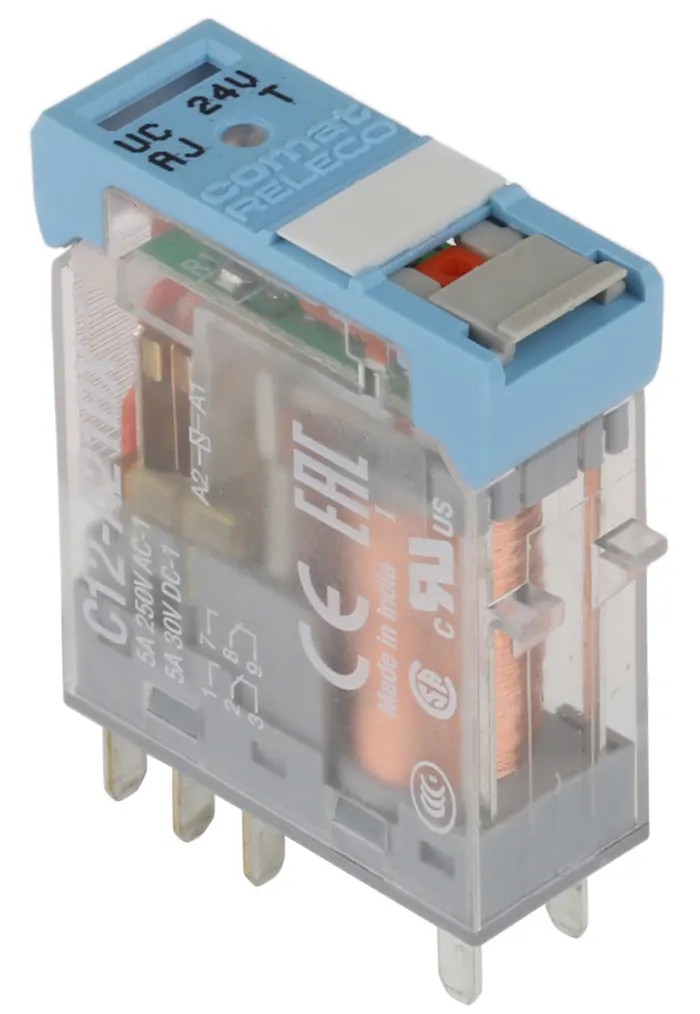

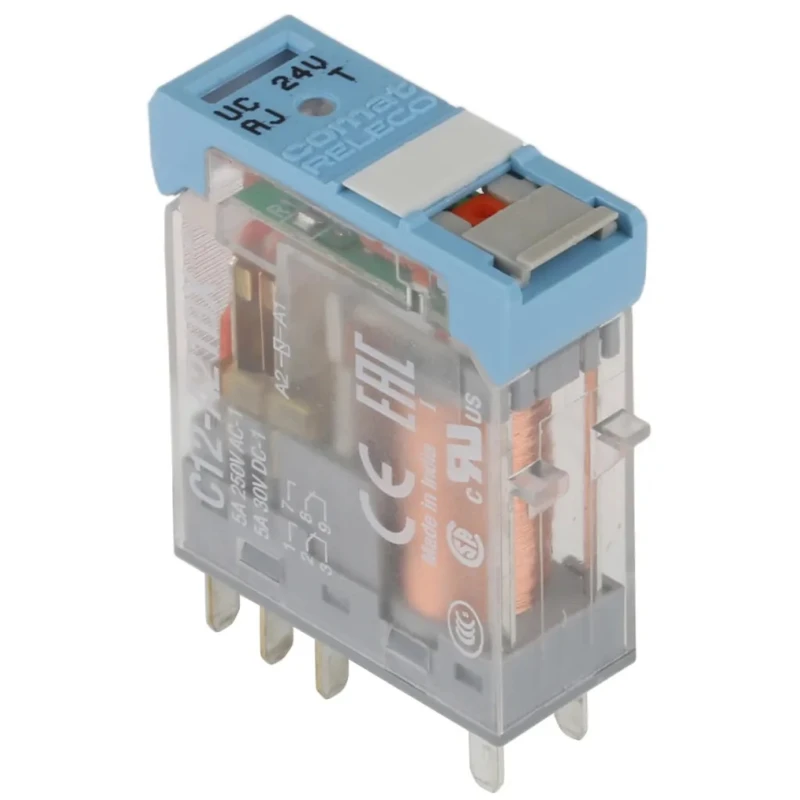

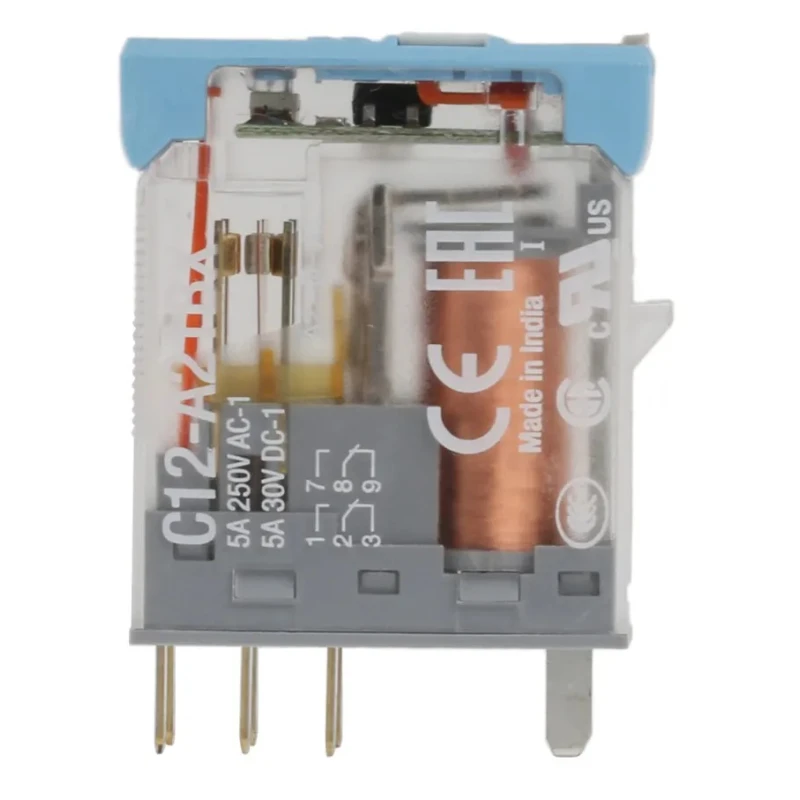

Releco PCB Power Relay 24V ac/dc Coil 5A Switching Current DPDT C12A21BX24AD

Releco C12A21BX24AD PCB Power Relay is designed for professional electrical and automation applications. Equipped with a 24V AC/DC coil and a 5A switching current, this relay is ideal for controlling circuits that require dual pole double throw (DPDT) configurations. The coil power consumption is 700mW, and the relay operates efficiently across a wide temperature range from -40°C to 60°C.

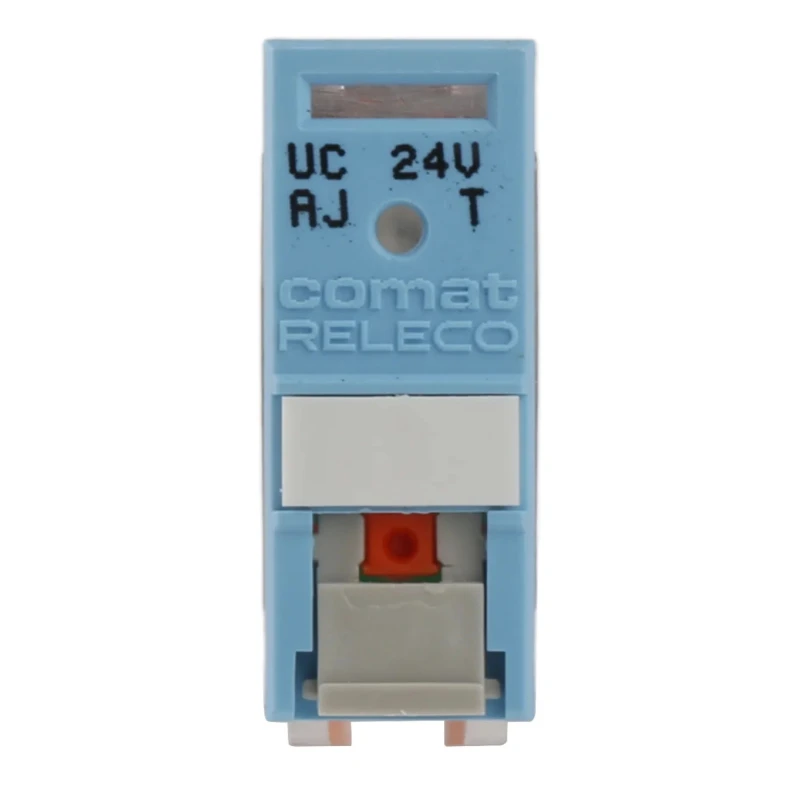

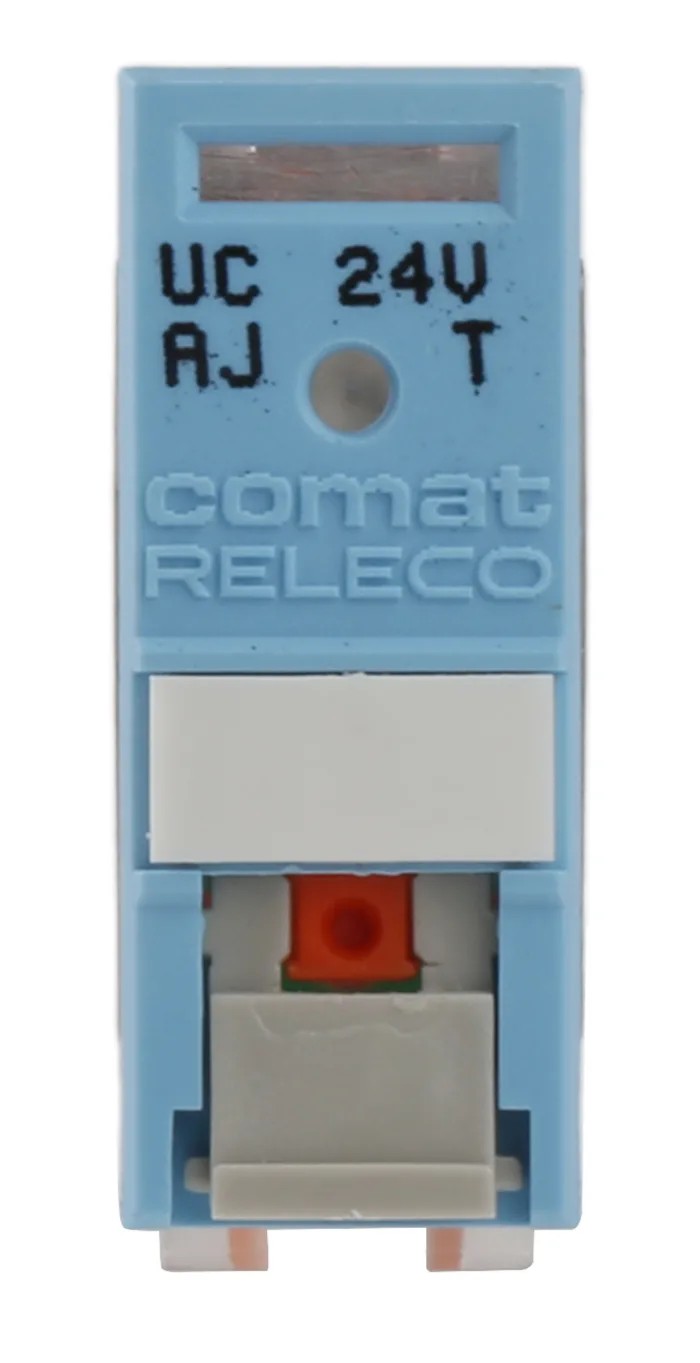

This relay features durable gold plated contacts that ensure excellent electrical conductivity and long service life. Its through-hole PCB mounting enables secure and easy integration into various devices. The relay is also equipped with a dual function test button that is color coded, allowing push to test or lift to latch functionality, complemented by a mechanical flag indicator and LED signal for easy operational status checks.

Manufactured under strict quality controls, the relay complies with multiple international standards, including EN, UL, RoHS, IEC, and CSA, ensuring safety and reliability for industrial, laboratory, manufacturing, and automation system uses.

Its compact size with dimensions 28.8mm length and 35.4mm height makes it suitable for dense PCB layouts. The coil resistance value is 742Ω, supporting stable coil performance under standard operating conditions.

This power relay set from Releco is a valuable component for electrical circuit control applications requiring reliability and precision switching in automation and control systems.

The relay features a dual pole double throw contact configuration. It supports a coil voltage of 24V AC or DC with coil power of 700mW. Switching current rating is up to 5 amperes for reliable control. Operation temperature ranges from -40°C to 60°C ensuring robust performance.

Includes a test button with mechanical flag and LED indicator for operational status. Gold plated contacts provide enhanced conductivity and longevity. Mount type designed for PCB through-hole installation for secure fitting.

Complies with international standards including EN, UL, RoHS, IEC, and CSA. Discover this and other Power Relays and automation components at EnvMart for dependable and efficient electrical system design.
