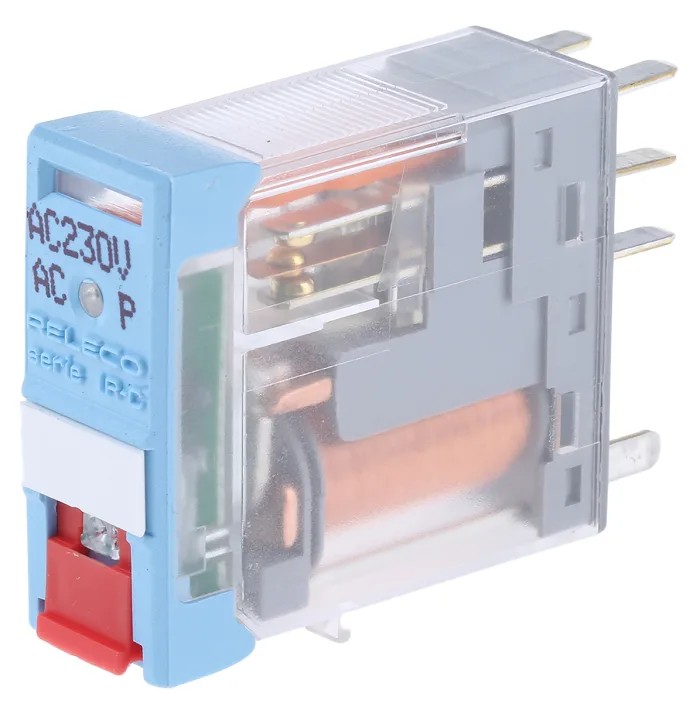

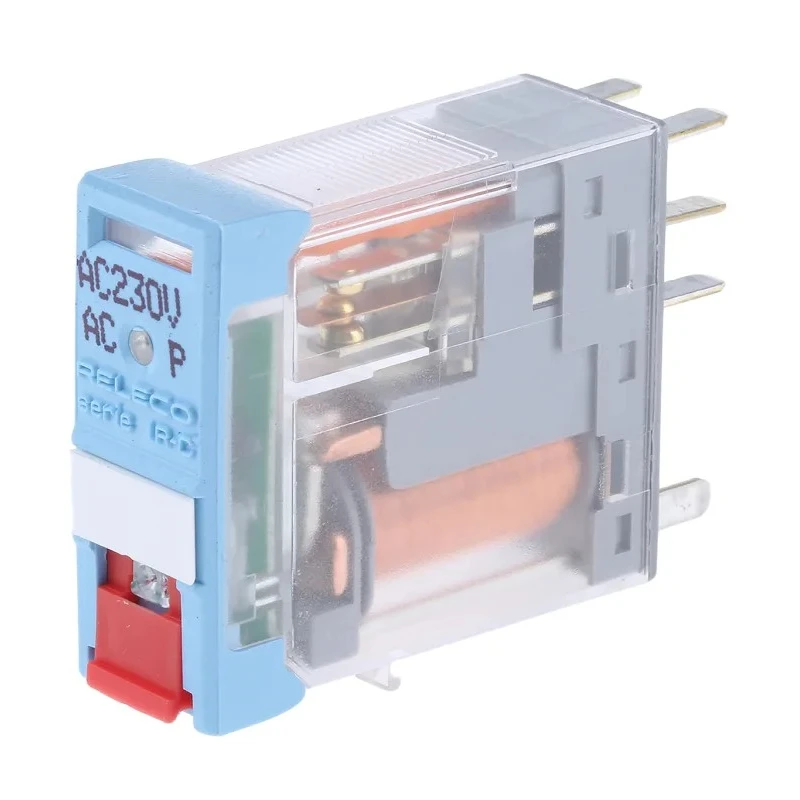

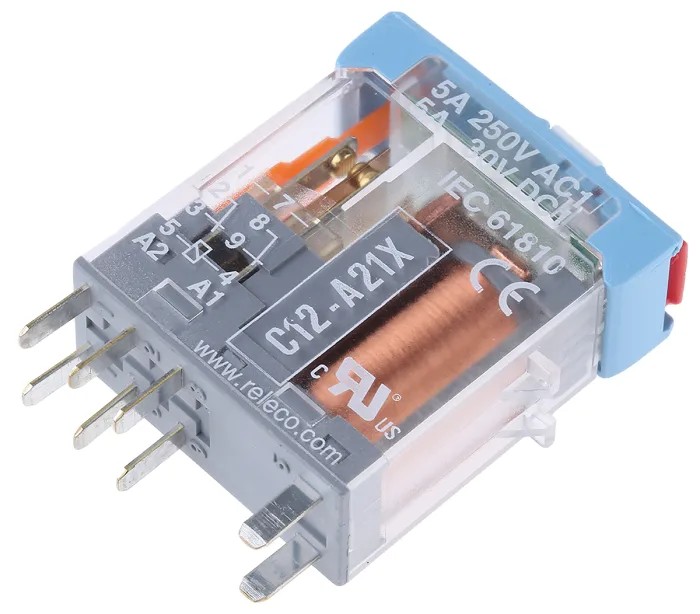

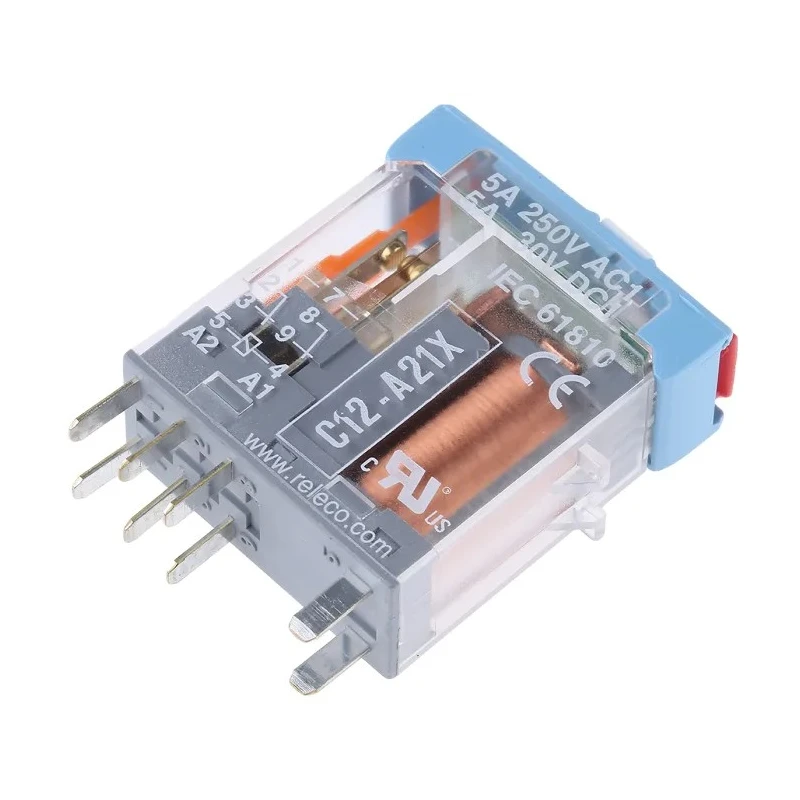

Releco PCB Power Relay 230V ac Coil 5A Switching Current DPDT C12A21X230A

Releco C12A21X230A is a high-quality PCB Power Relay designed for industrial and electrical automation systems. Featuring a 230 V AC coil and a 5A switching current capacity, this dual pole double throw (DPDT) relay delivers reliable switching performance essential for controlling various electrical circuits.

This relay is tailored for PCB mounting with through-hole terminals, ensuring strong mechanical and electrical connection. Its gold plated contacts minimize contact resistance and enhance durability, suitable for applications demanding long-term operational reliability.

Operating comfortably under temperatures ranging from -40°C to 60°C, Releco's Power Relay supports switching voltages up to 250 V AC and 30 V DC, making it versatile for numerous industrial uses. The included dual function test button facilitates easy maintenance by allowing users to push-to-test or lift-to-latch the relay mechanism.

Compact in size with dimensions of 28.8mm length and 35.4mm height, and a coil resistance of 28.8 kΩ with a low coil power consumption of 1.1 W, this relay is energy efficient and space-saving. It complies with recognized international standards including IEC, UL, CSA, RoHS, and EN ensuring product safety and environmental compliance.

Typical use cases span electrical automation, industrial machinery control, HVAC systems, and manufacturing equipment requiring dependable and precise switching.

The robust industrial terminals and accessories like wide sockets and bridge bars (sold separately) further enhance installation flexibility. Explore more industrial and electronic components to complement your projects via EnvMart’s extensive catalog.

Equipped with robust dual pole double throw (DPDT) contacts for versatile switching. Designed for PCB mount with through-hole terminal type ensuring secure installation. Gold plated contacts provide high reliability and low contact resistance.

Includes dual function test button for push-to-test or lift-to-latch operation. Compact size with length 28.8 mm and height 35.4 mm. Operating temperature range from -40°C to 60°C. Switching power capacity of 1.2 kVA suitable for a range of electrical loads.

Complies with IEC, UL, CSA, RoHS, and EN standards. Coil resistance of 28.8 kΩ and coil power consumption of 1.1 W. Maximum switching voltage 250 V AC and switching DC voltage 30 V DC. Discover more reliable industrial relays and power control components by browsing EnvMart’s comprehensive selection.
