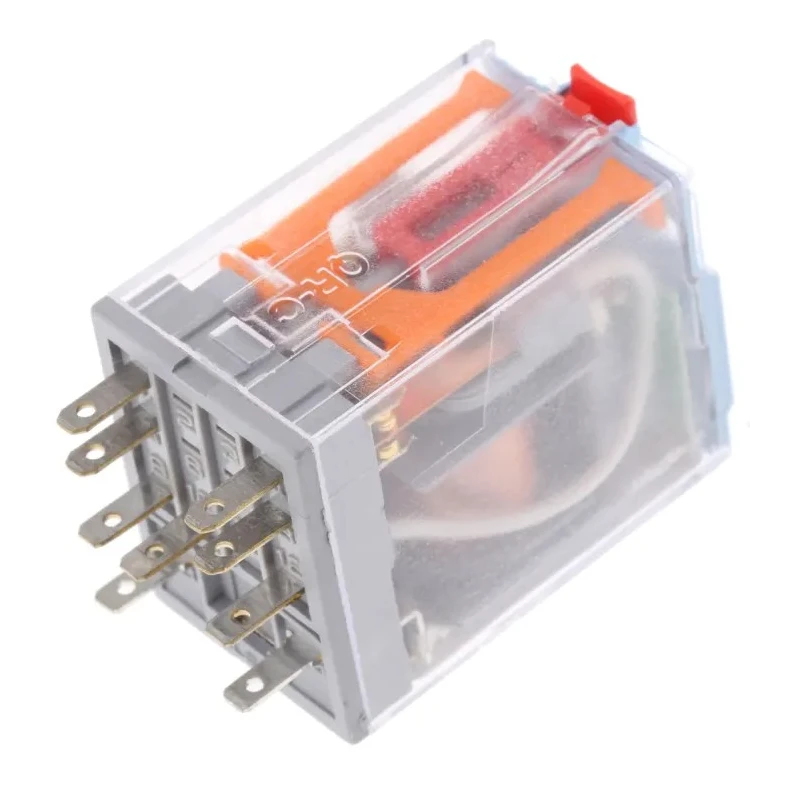

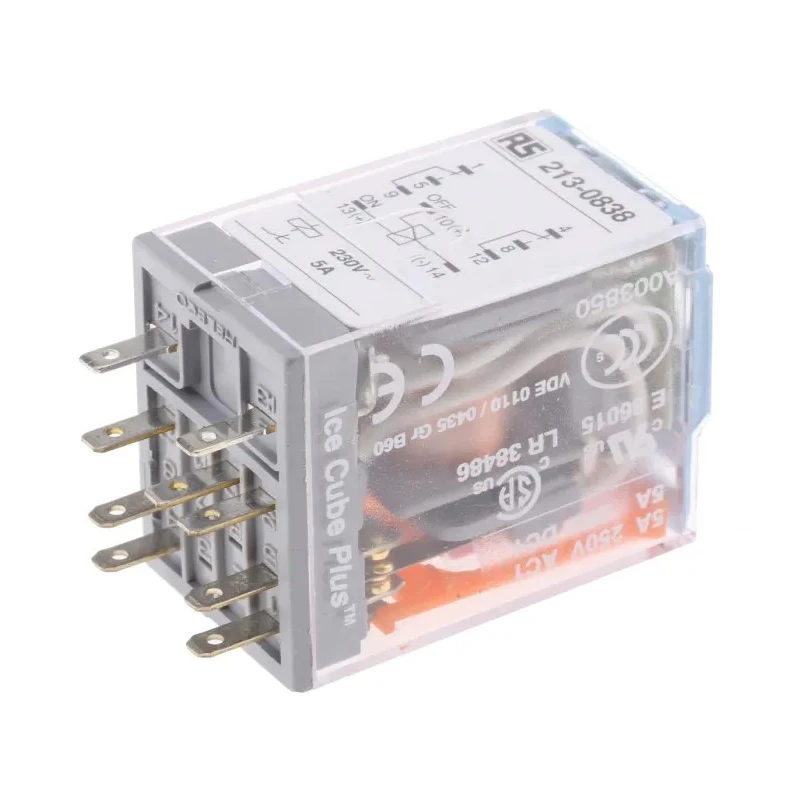

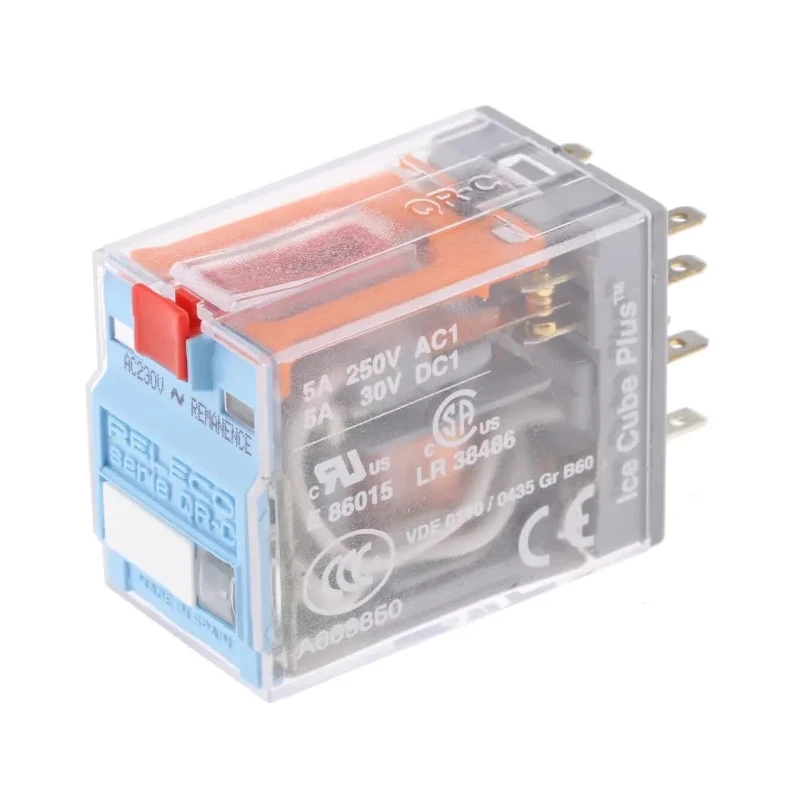

Releco Power Relay 230V AC Coil 5A Switching Current DPDT Model C9R21N230A

Releco C9R21N230A is an advanced power relay featuring a 230V AC coil and DPDT (Double Pole Double Throw) contact configuration designed for industrial and commercial applications.

With a 5A switching current capacity and coil power consumption of only 1.2W, this relay offers efficient switching for a wide range of control loads. The relay operates reliably within a temperature range of -40°C to 60°C, making it suitable for use in demanding environments.

The compact form factor with dimensions 37.5mm height, 28mm length, and 21mm width allows installation in confined spaces. The contacts are gold plated for superior electrical conductivity and longevity. The solder-type terminal ensures stable and secure connections.

This miniature remanence relay is an AC powered plug-in type latching relay which maintains its switching state without the need for continuous power to the coil. The relay includes a mechanical flag indicator for clear status visualization and a test button with color coding that functions as both push-to-test and lift-to-latch.

Typical industrial applications include HVAC systems, anti-condensation equipment, car washing and cleaning machines, coffee machines, commercial cooking appliances, refrigeration units, driers, and pump controls. The durable and precise design complies with IEC, UL, RoHS, EN and CSA standards, and the relay is manufactured in Spain.

The relay is supplied with a 230V AC coil voltage. DPDT contact configuration for dual switching capabilities. Switching current rating of 5A supports common control loads. Low coil power consumption of 1.2W enhances energy efficiency.

Reliable operation from -40°C up to 60°C. Compact size suitable for space-constrained installations. Gold plated contacts ensure excellent performance and lifespan. Solder type terminals for secure electrical connections.

Latch type operation with mechanical flag indicator and test button. Conforms to multiple international safety and quality standards. Manufactured in Spain with high quality control.
