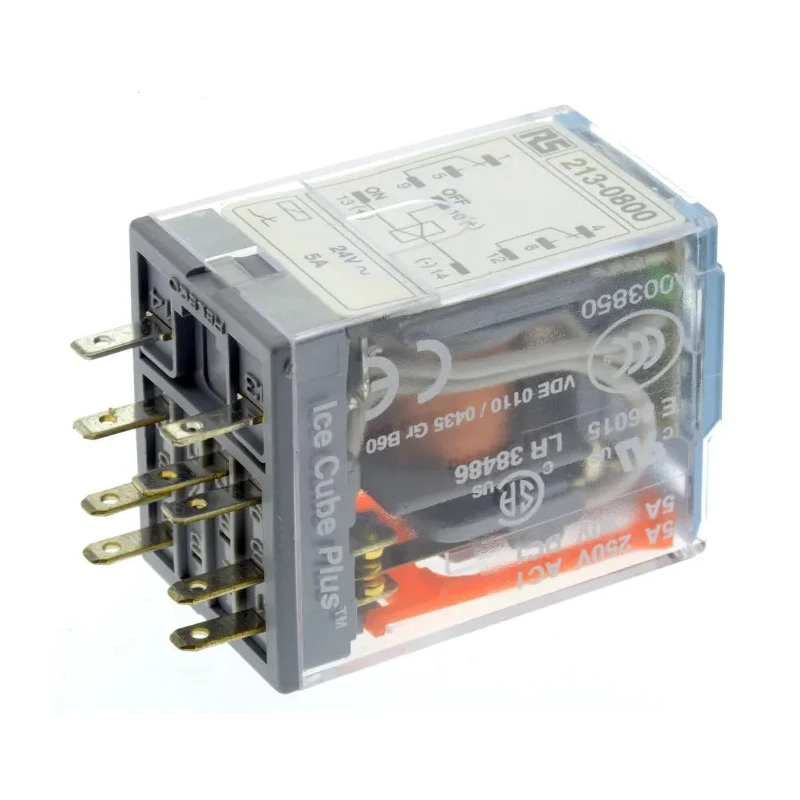

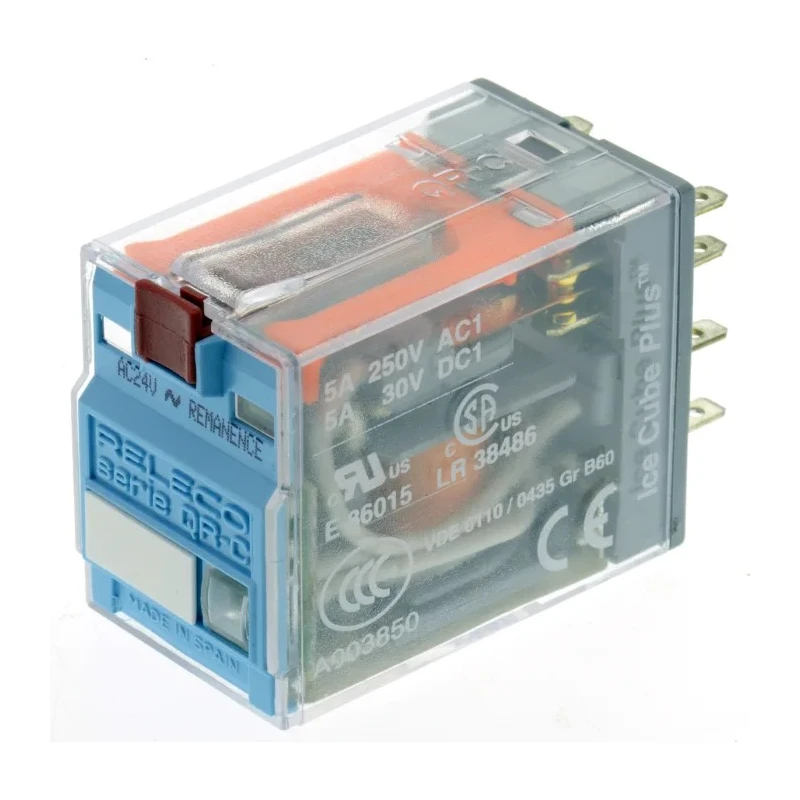

Releco Power Relay, 24V AC Coil, 5A Switching Current, DPDT Contact Configuration C9-R21 / AC 24 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 37.5mm |
| Length | 21mm |
| Model | C9-R21 / AC 24 V |
| Width | 28mm |
| Contact Material | Gold Plated |
| Series | C9 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Standards/Approvals | CSA, EN, IEC, RoHS, UL |
| Coil Resistance | 50Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 120V ac |
| Coil Power | 1.2W |
Key Features
- The relay operates with a 24V AC coil voltage for efficient power control.
- It supports a switching current of 5 amperes, suitable for moderate load applications.
- Double Pole Double Throw (DPDT) contact configuration ensures versatile switching options.
- Compact dimensions of 21mm length, 28mm width, and 37.5mm height optimize PCB mounting space.
- Operates reliably between -40°C and 60°C operating temperatures for durability in harsh environments.
- Gold plated contacts offer enhanced conductivity and corrosion resistance.
- Coil resistance is 50 ohms with a coil power consumption of 1.2 watts.
- Includes a test button and mechanical flag indicator for easy status monitoring and testing.
Product Description
Releco C9-R21 / AC 24 V Power Relay is a high-quality, industrial-grade relay designed for reliable power switching with a 24V AC coil and a 5A switching current capacity in a DPDT contact configuration.
This power relay belongs to the C9 series and features gold plated contacts, which provide excellent conductivity and corrosion resistance, ensuring long operational life.
The relay has compact dimensions measuring 21mm in length, 28mm in width, and 37.5mm in height, making it ideal for printed circuit board (PCB) mount installations where space efficiency is crucial.
Its operating temperature range is wide, from -40°C to 60°C, allowing use in diverse industrial and automation environments with temperature extremes. The coil operates at 24V AC with a coil resistance of 50 ohms and a coil power of 1.2 watts, ensuring efficient power consumption.
Equipped with a standard test button and a mechanical flag indicator, users can easily perform status checks and manual testing of the relay operation. The relay supports a maximum switching AC voltage of 120V AC and a switching power capacity of 600 kVA, which suits a variety of industrial load switching tasks.
The relay features a 24V AC coil voltage for stable operation. It offers a 5A switching current capacity capable of handling moderate electrical loads. DPDT contact configuration enables double pole double throw switching for flexible circuit control.
Gold plated contacts enhance conductivity and prolong relay life. Robust operating temperature range of -40°C to 60°C extends its usability across harsh environments. Compact size supports efficient PCB mounting and installation.
Coil resistance of 50 ohms ensures controlled energy consumption with 1.2W coil power. Inbuilt test button and mechanical flag allow convenient relay status monitoring and testing. Suitable for industrial, electrical automation, manufacturing, and control system applications.
The Releco C9-R21 / AC 24 V Power Relay meets several international standards including CSA, EN, IEC, RoHS, and UL certifications, assuring compliance and safety in industrial use.
Explore more Power Relays and related electrical components in the Electronics & Electricals category for enhanced automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V AC.
It supports a maximum switching current of 5 amperes.
This model features a Double Pole Double Throw (DPDT) contact configuration.
The relay has compact dimensions of 21mm in length, 28mm in width, and 37.5mm in height.
It operates reliably between -40°C and 60°C.
The coil resistance is 50 ohms.
The coil power consumption is 1.2 watts.
This relay can handle a maximum switching AC voltage of 120V AC.
The contacts are made of gold plated material, enhancing conductivity and corrosion resistance.
It meets several international standards including CSA, EN, IEC, RoHS, and UL certifications.
Yes, it includes a test button and a mechanical flag indicator for easy status monitoring and testing.
The terminal type for this model is PCB Pin, suitable for printed circuit board installations.
