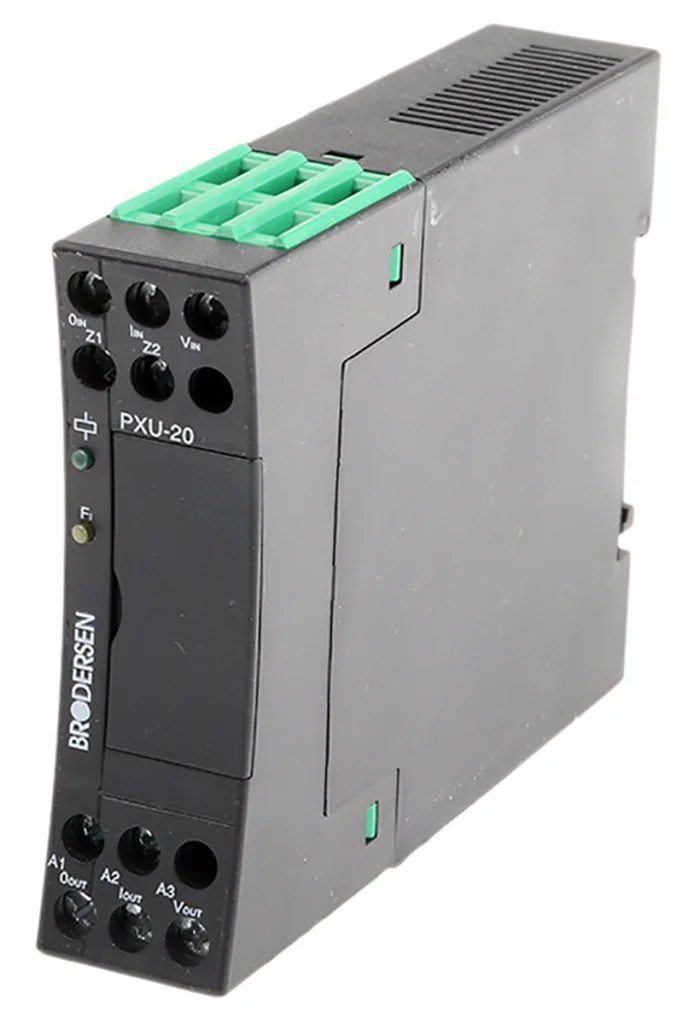

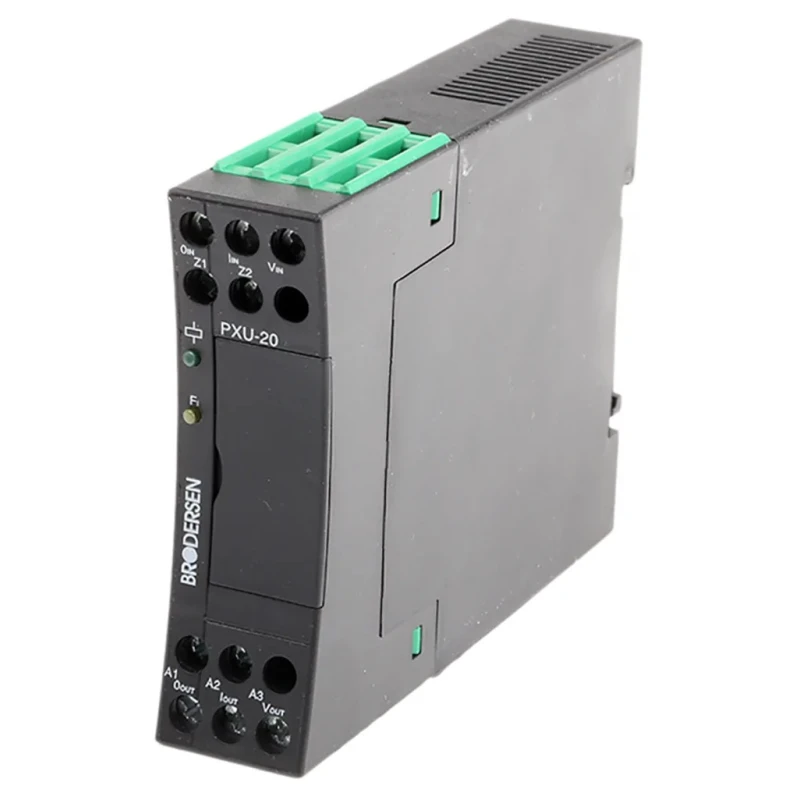

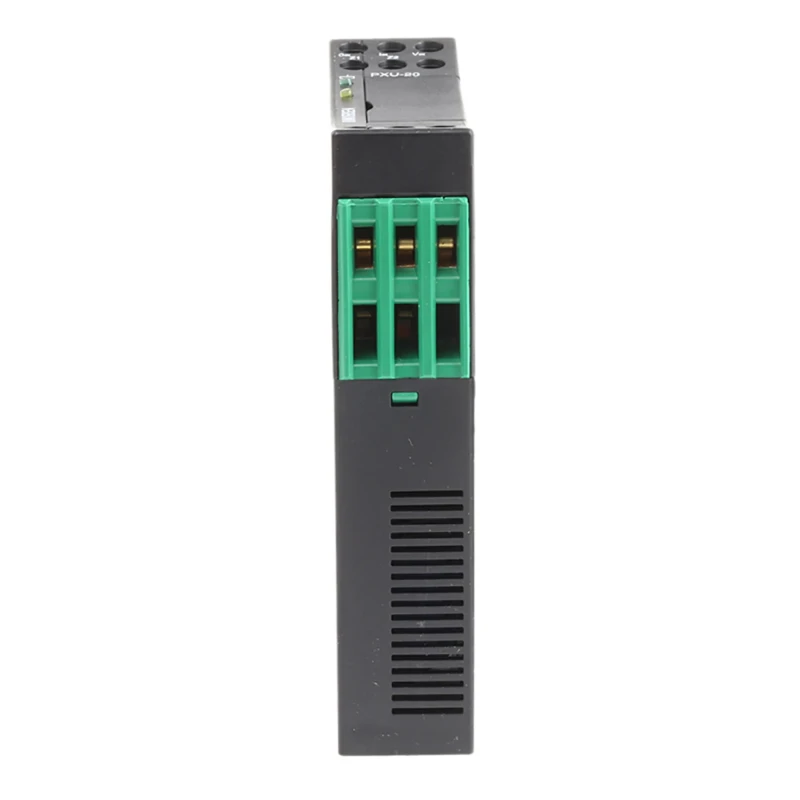

Brodersen Controls 9100 Series Signal Conditioner, Current/Voltage Input, Current/Voltage Output, 24V ac Supply PXU-20.024/RS
Specifications
| Country of Origin | Denmark |
|---|---|
| Voltage | Input, Current/Voltage Output, 24V ac Supply RS Stock No |
| Brand | Brodersen Controls |
| Operating Temperature Range | -20 to +55°C |
| Model | PXU-20.024/RS |
| Mount Type | DIN Rail |
| Series | 9100 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Output Range | 0 → 10 VDC |
| Input Range | 0 → 10 V |
| Supply Voltage | 24V ac |
| Input Signal Type | Current/Voltage |
Key Features
- This device supports current and voltage input signal types.
- The input range is 0 to 10 volts, and the output range is 0 to 10 volts DC.
- Designed for DIN rail mounting with screw terminals for secure installation.
- It features galvanic isolation between inputs and outputs for signal integrity.
- Offset and gain span are adjustable via the front panel by ±5%.
- Operates reliably within a temperature range of -20 to +55 degrees Celsius.
- The housing is made from NORYL material providing durability and protection.
- Compact dimensions of 80 mm height, 22.5 mm width, and 104 mm depth optimize panel space.
Product Description
Brodersen Controls PXU-20.024/RS is a 9100 Series Signal Conditioner designed for industrial and process control applications requiring accurate signal conversion from current or voltage inputs to corresponding current or voltage outputs. It operates at a supply voltage of 24V AC and mounts easily on standard DIN rails.
The device is equipped with galvanic isolation inputs to outputs, ensuring signal integrity and preventing ground loops in automation systems. Input signal type selection is performed via a front panel switch, and output configuration depends on the wiring connection.
The adjustable offset and gain span, which can be set to ±5% from the front panel, allow for calibration and fine-tuning to meet specific application requirements. The signal conditioner is housed in a robust NORYL casing, providing mechanical protection and electrical insulation.
Its compact dimensions (H80 x W22.5 x D104 mm) enable easy integration into control cabinets without occupying excessive space. The device’s operating ambient temperature range of -20°C to +55°C suits various industrial environments.
This signal conditioner supports current and voltage input signal types. The input range is 0 to 10 volts, with an output range of 0 to 10 volts DC. Galvanic isolation eliminates interference between input and output signals.
DIN rail mounting and screw terminals ensure sturdy installation and easy wiring. Adjustable offset/gain span of ±5% provides flexibility in signal scaling. Compact size and NORYL housing enhance durability and panel space efficiency.
Operating temperature range from -20 to +55°C supports various industrial conditions. Designed and manufactured in Denmark, ensuring high quality and reliability.
This Signal Conditioner is suitable for industrial automation, process control, factory equipment monitoring, and other applications requiring stable and isolated signal conversion. Professionals in manufacturing, HVAC, water treatment, and electrical automation will benefit from its precise performance and rugged design.
Explore more signal conditioning and automation products in EnvMart’s Electronics & Electricals category for comprehensive process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input range for this signal conditioner is 0 to 10 volts.
The output range is 0 to 10 volts DC.
It is designed for DIN rail mounting.
The operating temperature range is from -20°C to +55°C.
Input signal type selection is performed via a front panel switch.
It features screw terminals for secure installation.
The dimensions are 80 mm in height, 22.5 mm in width, and 104 mm in depth.
The housing is made from NORYL material, providing mechanical protection and electrical insulation.
Yes, it features galvanic isolation between inputs and outputs to ensure signal integrity.
The offset and gain span can be adjusted by ±5% via the front panel.
It is manufactured in Denmark.
It is suitable for industrial automation, process control, and factory equipment monitoring.
