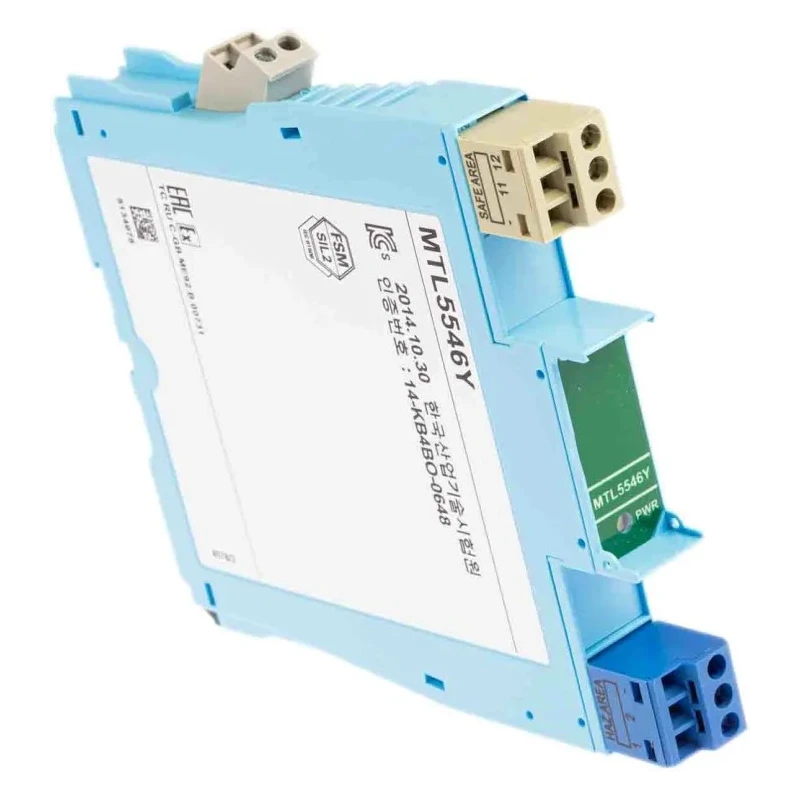

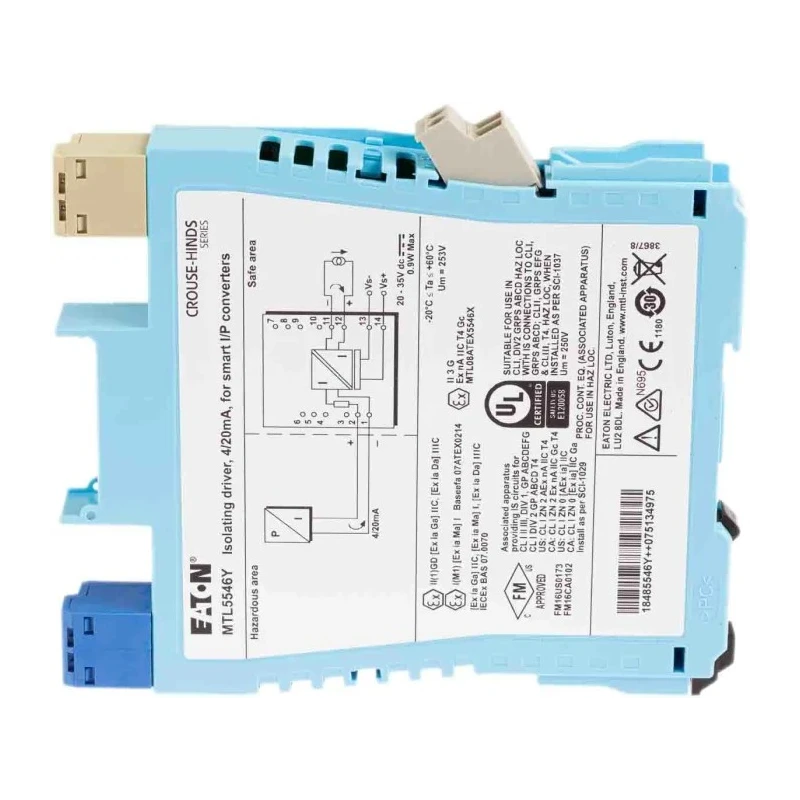

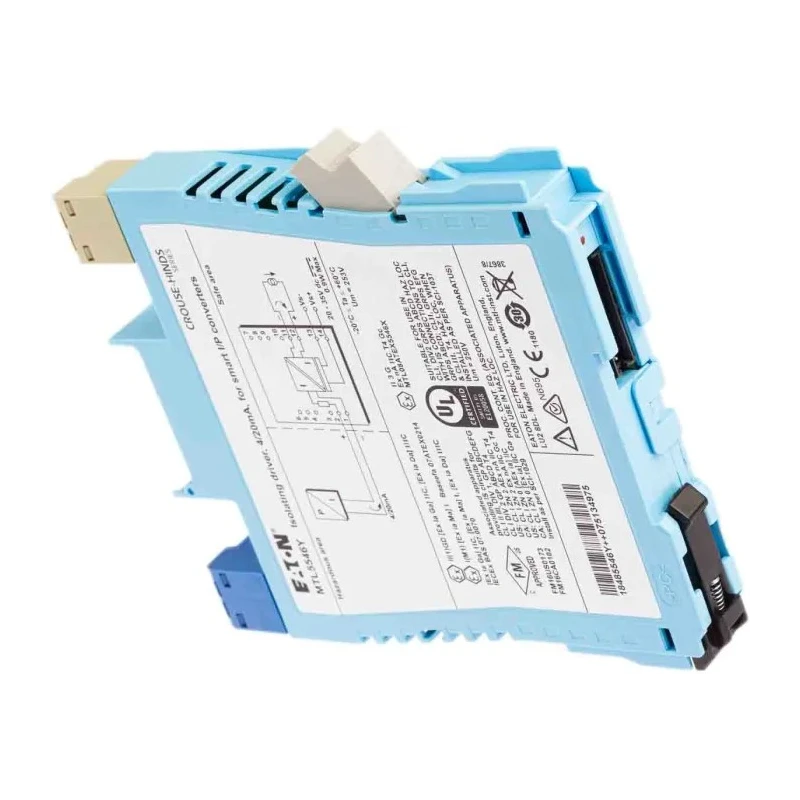

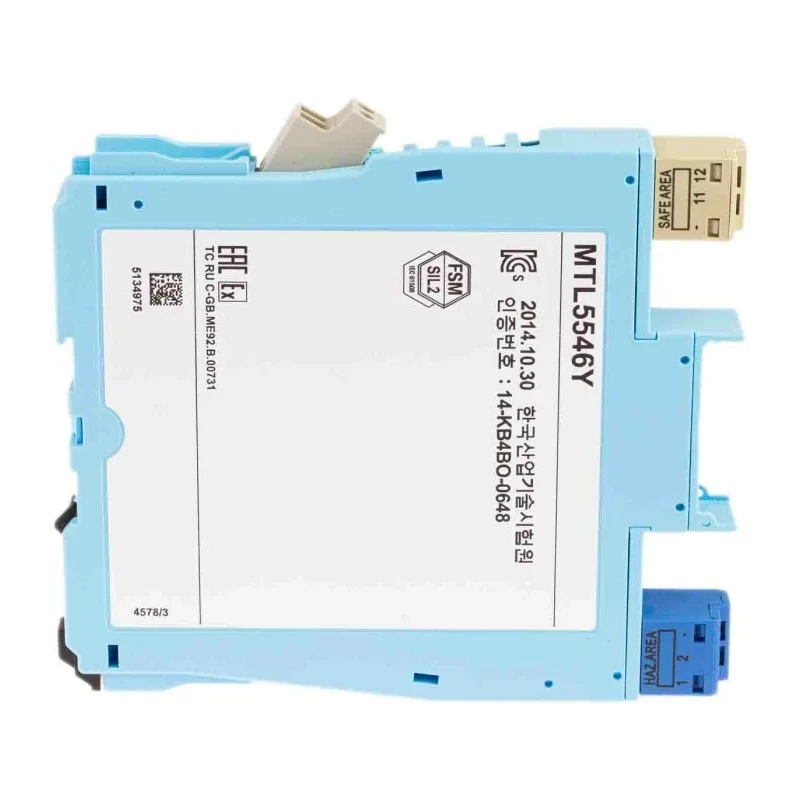

Eaton MTL Series Signal Conditioner Current/Voltage Input Current Output 20V dc 35 V dc Supply MTL5546Y

The Eaton MTL5546Y Signal Conditioner is designed for detailed current and voltage signal conditioning with a current output, tailored for industrial, hazardous, and automation environments.

This device accepts current/voltage input signals within a 4 to 20 mA range and outputs a current signal ranging from 4 to 20 mA. It operates efficiently on a supply voltage from 20 to 35 V dc, ensuring robust performance even in demanding conditions.

Featuring intrinsic safety approvals including IIC hazardous area certification, Division 1, Group A, T4 to T6, and Zone 0 classification, the MTL5546Y is suitable for use in potentially explosive atmospheres.

Its compact DIN rail mounting and narrow 16mm width facilitate high packing density, optimizing space in control cabinets. The screw terminal connections ensure firm and secure wiring, reducing the risk of loose contacts and maintenance needs.

The device incorporates an LED indicator for easy monitoring of operational status. It is compliant with international safety standards including IEC 61508:2010, assuring high reliability and safety levels required in industrial and medical applications.

Typical use cases include signal isolation to eliminate earth loop errors, amplifying or stepping down hazardous high voltage signals, and protecting measurement accuracy in automation, electrical control, and hazardous area monitoring environments.

The unit contains a single channel, built with advanced circuit design techniques and innovative isolating transformer construction to deliver explosion protection and signal integrity.

The Eaton MTL5546Y is manufactured in the United Kingdom, providing trusted quality and durability for demanding industrial applications. This product is an essential component in electrical, automation, and hazardous area instrumentation systems.

This device operates with a supply voltage range of 20 to 35 V dc. It supports an input range of 4 to 20 mA for accurate signal processing. The output range is 4 to 20 mA, ensuring compatibility with a wide range of controllers.

Mounting is simple and secure with a 16mm wide DIN rail design. Screw terminals provide reliable wire connections in harsh environments. Certified for hazardous locations with IIC hazardous area certification and IEC 61508:2010 compliance.

Wide load resistance range of 90 to 800 ohm supports versatility in wiring setups. An LED indicator allows quick operational status checks. Single-channel design reduces system footprint. Manufactured in the United Kingdom with high quality and reliability standards.
