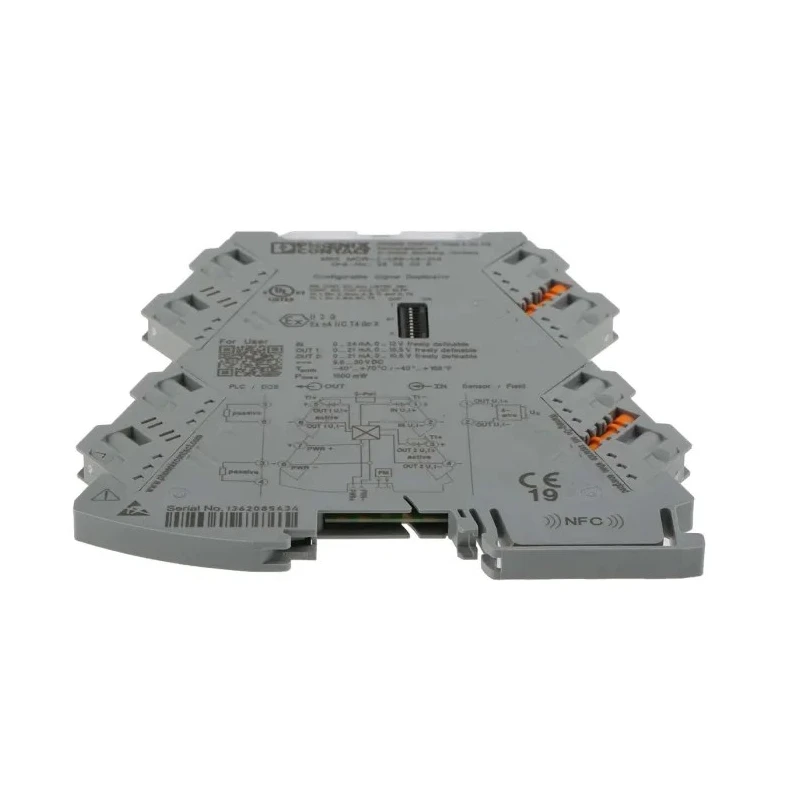

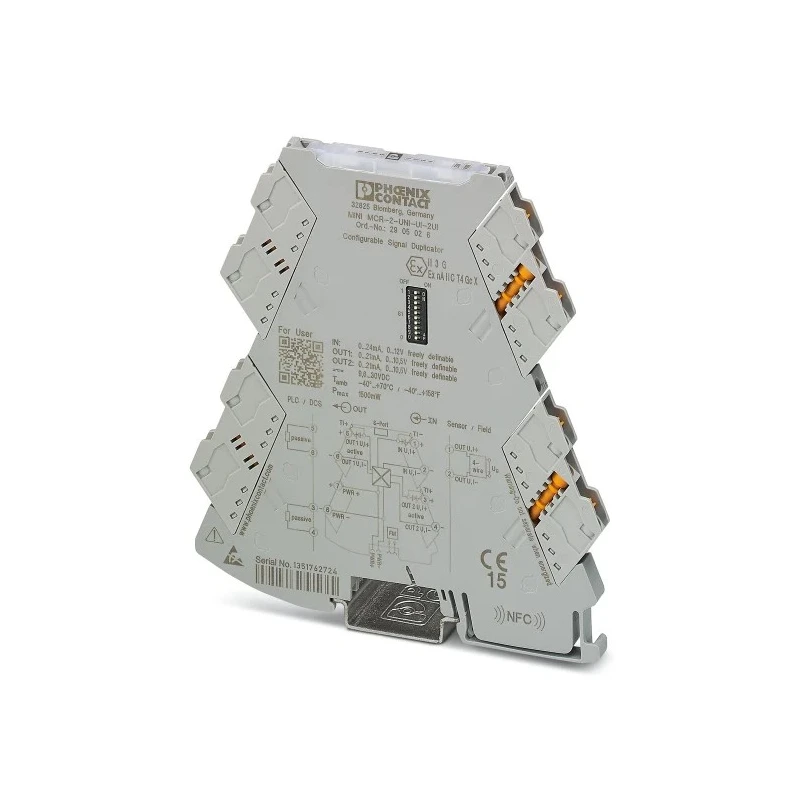

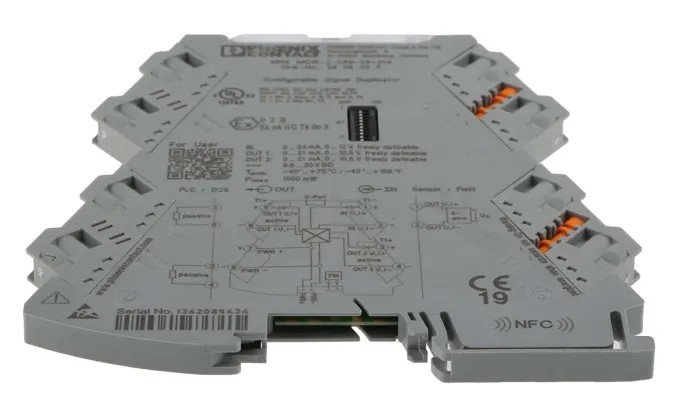

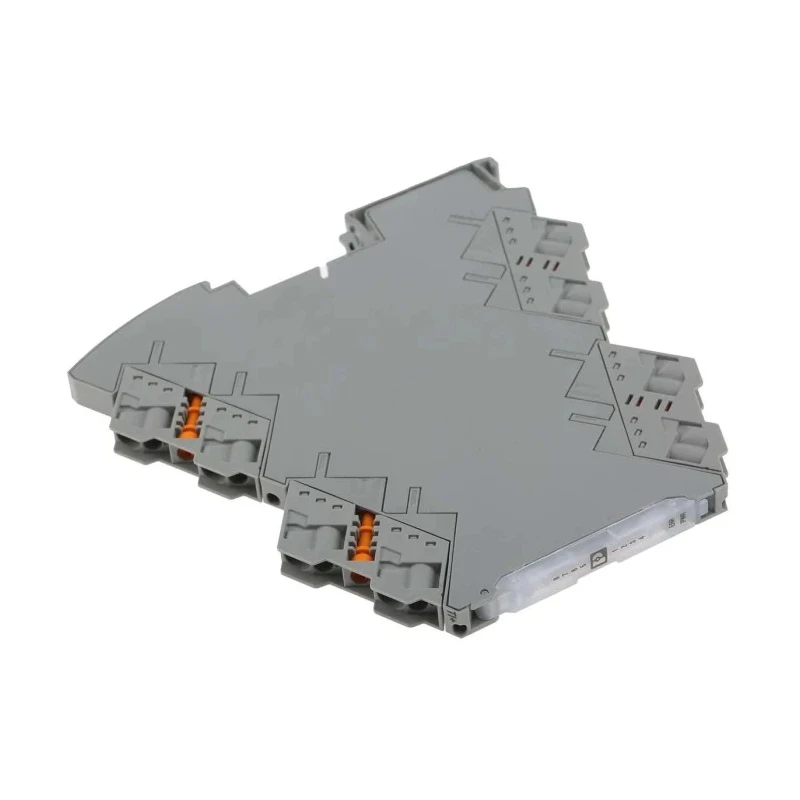

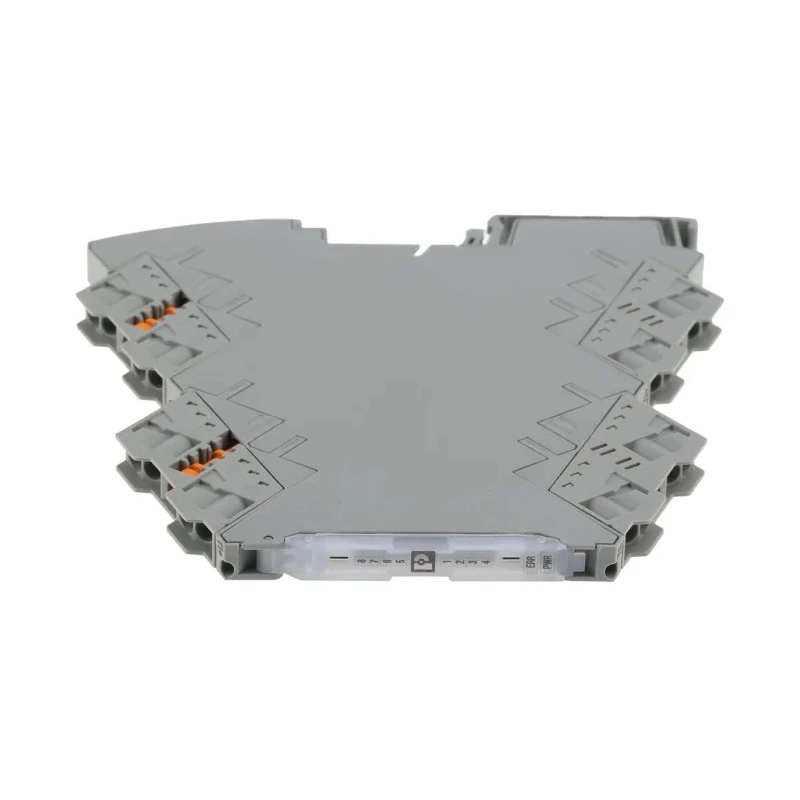

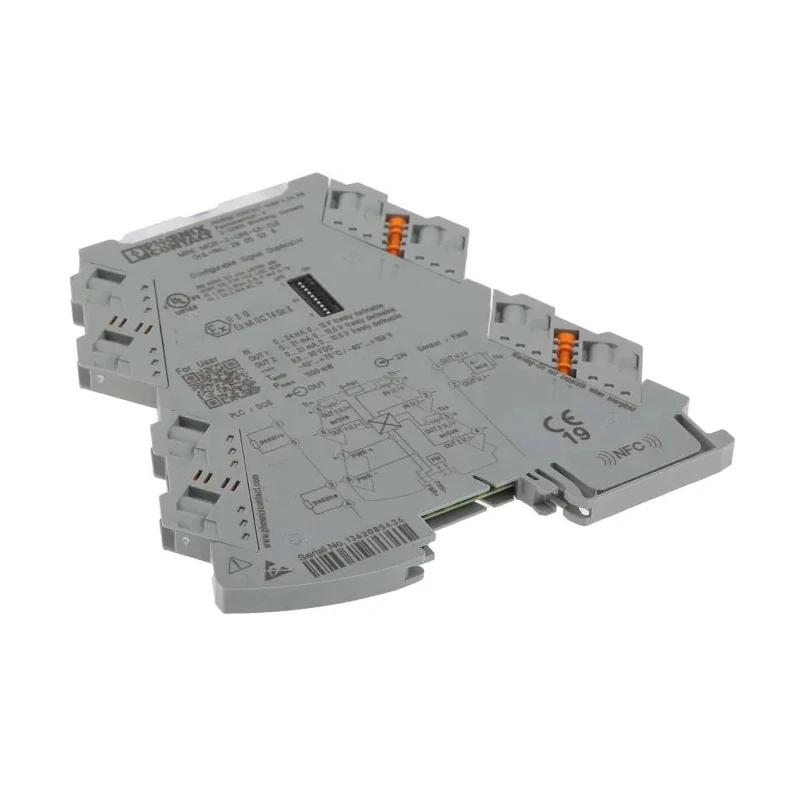

Phoenix Contact MINI MCR Series Signal Conditioner Current/Voltage Input, Current/Voltage Output, 24V DC Supply, ATEX 2905026
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Input, Current/Voltage Output, 24V dc Supply, ATEX RS Stock No |
| Brand | Phoenix Contact |
| Model | 2905026 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MINI MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Output Range | 0 → 10.5 V, 0 → 21 mA |
| Input Range | 0 → 24 mA, 0 → 12 V |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | ATEX |
| Input Signal Type | Current/Voltage |
| Phoenix Contact SC-System Series Isolation AmplifierBrand | Phoenix Contact |
Key Features
- Accepts analogue input signals from 0 to 24mA and 0 to 12V for flexible use.
- Delivers configurable output signals of 0 to 21mA and 0 to 10.5V to suit downstream requirements.
- Features an operating temperature range from -40°C to +70°C suitable for harsh environments.
- Designed for DIN rail mounting allowing quick installation and maintenance.
- Includes coloured LED indicators for effective diagnostic and status monitoring.
- Accommodates rigid and flexible conductors between 0.14 and 2.5mm² cross-section.
- IP20 rating provides protection against access to hazardous parts and small objects over 12mm.
- Uses screw terminals ensuring reliable electrical connections.
Product Description
Phoenix Contact 2905026 MINI MCR Series Signal Conditioner is a rugged and adaptable device designed for industrial automation and instrumentation applications. It processes analogue input signals ranging from 0 to 24mA and 0 to 12V and converts them into configurable outputs of 0 to 21mA and 0 to 10.5V. This flexibility allows seamless interfacing with control networks and downstream systems.
Its robust design supports an extensive operating temperature range between -40°C and 70°C, making it suitable for endurance in harsh industrial and hazardous environments. The device is mountable on standard DIN rails, facilitating quick and secure setup within electrical panels.
Diagnostic efficiency is enhanced by coloured LED indicators providing clear status feedback. The instrument supports connection of conductors with cross-sections from 0.14 to 2.5mm², accommodating a range of wiring options.
Electrical safety and compliance are ensured through its screw terminal construction and multiple certifications including ATEX for hazardous areas and international standards such as CE, UL 508 Listed, IECEX, and various EN and GB/T standards.
Configurable using free software for user-friendly setup. Accepts rigid and flexible conductors in a broad cross-section range between 0.14 and 2.5mm². Coloured LED indicators allow for diagnostic and status monitoring. IP20 rating ensures protection against small objects and provides touch safety.
Mountable in any orientation on DIN rails for system flexibility. Supports 2 input/output channels for versatile signal processing. Complies with ATEX and other international safety standards for hazardous area use.
This Signal Conditioner is widely used across industrial automation, electrical labs, manufacturing facilities, and hazardous area signal processing applications. Its certified and reliable design ensures operational safety and adaptability, making it an indispensable tool for advanced signal conditioning tasks.
Explore the extensive Phoenix Contact portfolio on EnvMart for additional compatible signal conditioning solutions and industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts analogue input signals ranging from 0 to 24mA and 0 to 12V.
This unit delivers configurable output signals of 0 to 21mA and 0 to 10.5V.
The operating temperature range is from -40°C to +70°C, suitable for harsh environments.
It is designed for DIN rail mounting, allowing for quick installation and maintenance.
It uses screw terminals, ensuring reliable electrical connections.
This model supports 2 input/output channels for versatile signal processing.
It has an IP20 rating, providing protection against access to hazardous parts and small objects over 12mm.
It accommodates rigid and flexible conductors with cross-sections between 0.14 and 2.5mm².
It is certified for hazardous areas with ATEX and complies with international standards such as CE, UL 508 Listed, and IECEX.
It processes both current and voltage input signals.
The supply voltage required is 24V DC.
Yes, it can be configured using free software for user-friendly setup.
