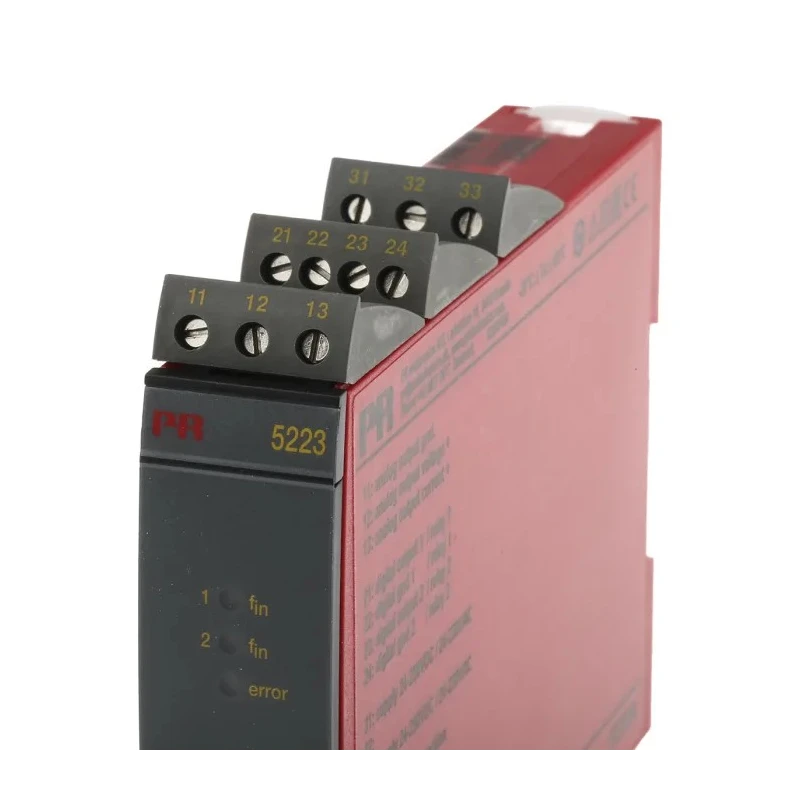

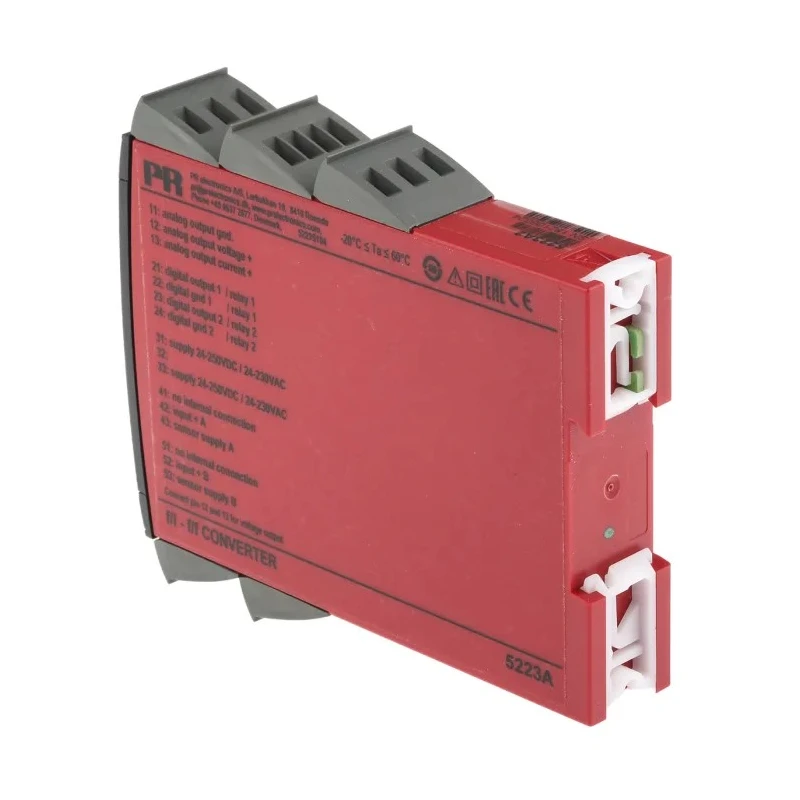

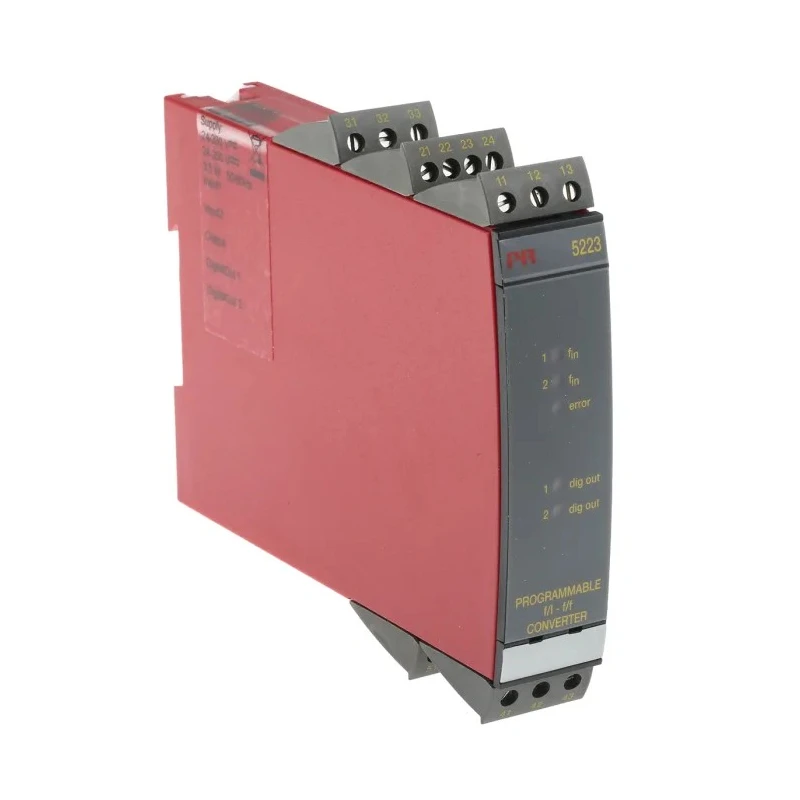

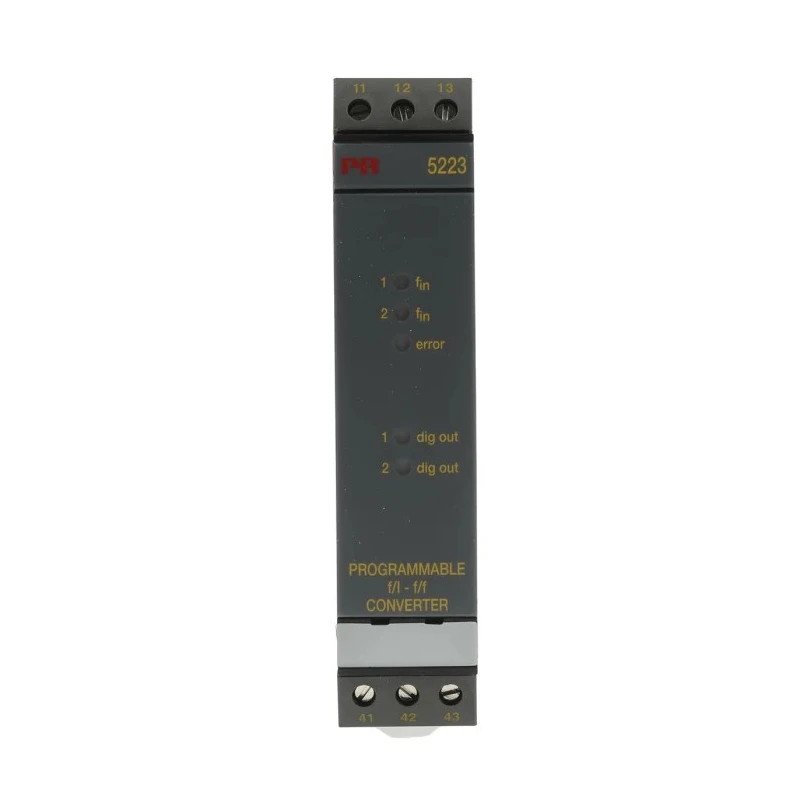

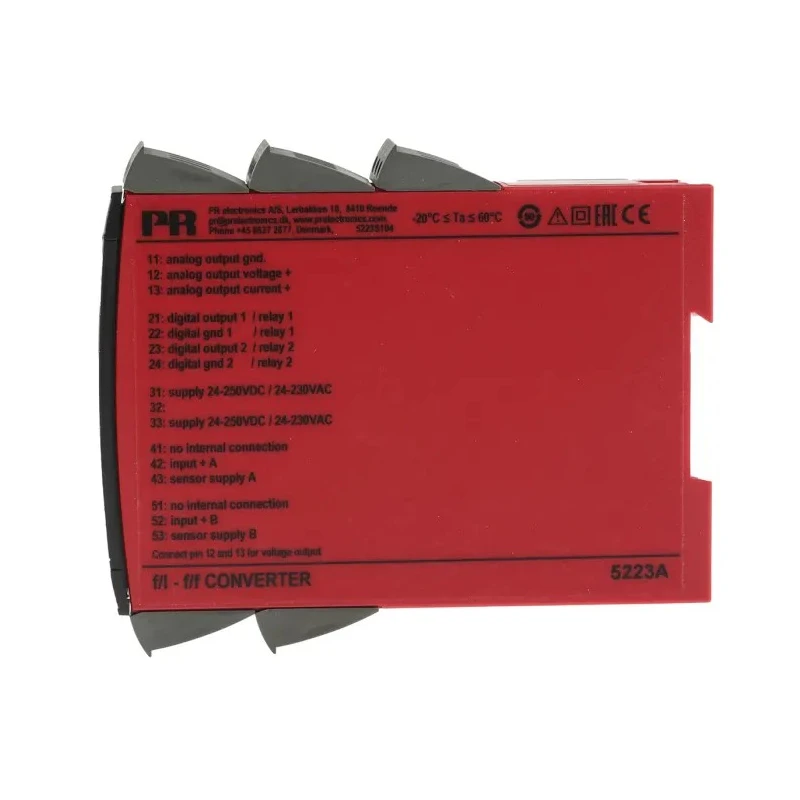

PR Electronics 5 Series Signal Conditioner Frequency Input NPN Relay TTL PNP Output Zone Zone 2 FM DNV GL 5223A2
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | PR Electronics |
| Model | 5223A2 |
| IP Rating | IP20 |
| Mount Type | Rail |
| Series | 5 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 4 |
| Input Range | 0 → 20 kHz |
| Hazardous Area Certification | Zone, Zone 2, FM, DNV GL, ATEX, EAC, IECEx, UL, EU RO marine |
| Input Signal Type | Frequency |
| Output Signal Type | NPN, Relay, TTL, PNP |
| SIL Level | SIL 2 |
Key Features
- Supports frequency input signals up to 20 kHz.
- Certified for Zone and Zone 2 hazardous areas including FM and DNV GL approvals.
- Mountable on DIN rail with universal AC/DC supply voltage.
- Features galvanic isolation and protection against input and supply polarity reversal.
- Equipped with 5 front LEDs for status indication.
- Programmable with optional detachable display module for easy setup and diagnostics.
- Operates reliably between -20°C and 70°C with an IP20 rating.
- Designed for SIL 2 safety level with full IEC 61508 assessment.
Product Description
PR Electronics 5223A2 is a 5 Series Signal Conditioner designed for frequency input signals with output options including NPN, Relay, TTL, and PNP. It is certified for hazardous area applications such as Zone, Zone 2, FM, and DNV GL, making it suitable for demanding industrial environments requiring safety and reliability. The device supports input frequencies up to 20 kHz and can convert frequency signals into analog current or voltage outputs, accommodating various automation and control system requirements.
This signal conditioner features galvanic isolation, 5 status indication LEDs, and protection against input and supply polarity reversal. It supports universal AC and DC supply voltages and is mountable on standard DIN rails for convenient installation. The 5223A2 model provides safe operation in temperature ranges from -20°C to 70°C and has an IP20 rating, ensuring adequate protection against dust and physical ingress.
Programming and configuration are facilitated by the PR 4501 detachable display module, which offers simple navigation, process simulation, two-point calibration, password protection, and diagnostic features. This ease of use makes on-site setup and maintenance more efficient, reducing downtime.
With compliance to safety integrity level SIL 2 and full IEC 61508 hardware assessment, the PR Electronics 5223A2 ensures high safety standards in industrial automation, process control, and hazardous area equipment sectors. The product's robust build and certifications make it ideal for use in electrical, automation, manufacturing, and marine applications requiring reliable signal conditioning.
Supports frequency input signals up to 20 kHz. Multiple output options including NPN, Relay, TTL, and PNP. Certified for hazardous areas with Zone, Zone 2, FM, DNV GL, ATEX, EAC, IECEx, UL, and EU RO marine approvals. DIN rail mountable with universal AC/DC supply voltage.
Galvanic isolation with input and supply polarity reversal protection. Equipped with 5 front status LEDs. Programmable using PR 4501 detachable display module. Operating temperature range from -20°C to +70°C with IP20 protection.
Meets SIL 2 safety level and IEC 61508 standards. Manufactured in Denmark for quality assurance. Discover more Signal Conditioners and related automation products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PR Electronics 5223A2 supports frequency input signals up to 20 kHz.
This signal conditioner offers multiple output options including NPN, Relay, TTL, and PNP.
It is certified for hazardous areas including Zone, Zone 2, FM, DNV GL, ATEX, EAC, IECEx, UL, and EU RO marine approvals.
The operating temperature range for the PR Electronics 5223A2 is from -20°C to +70°C.
This model is mountable on standard DIN rails, making installation convenient.
The IP rating of the PR Electronics 5223A2 is IP20, providing protection against dust and physical ingress.
This signal conditioner supports 4 channels.
The device accepts frequency input signals.
It features a detachable display module, which allows for easy programming, process simulation, two-point calibration, and diagnostics.
The PR Electronics 5223A2 meets SIL 2 safety level standards with full IEC 61508 assessment.
It includes galvanic isolation and protection against input and supply polarity reversal.
It is manufactured in Denmark, ensuring quality assurance.
