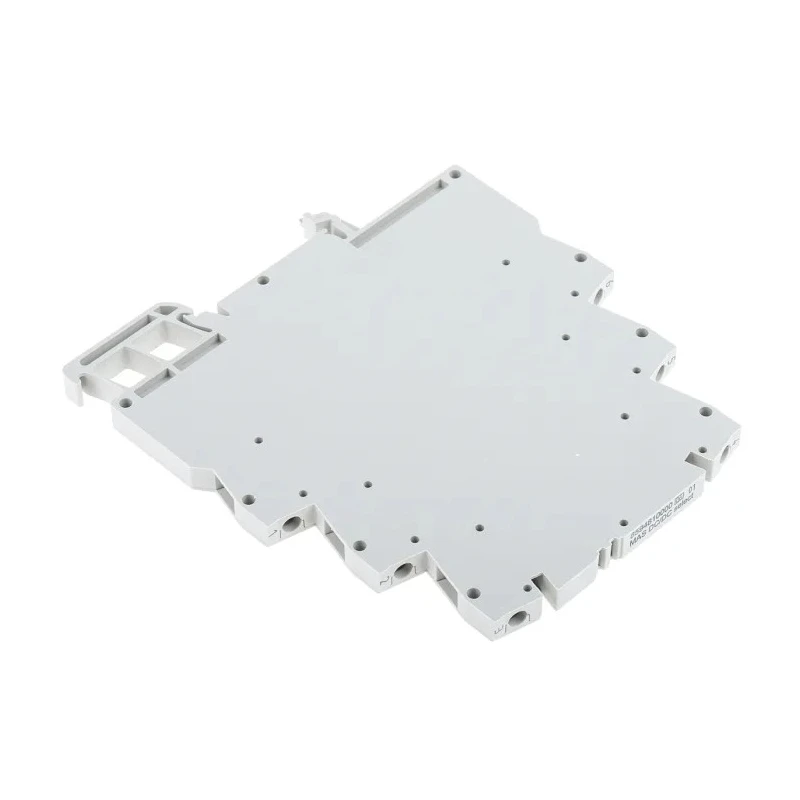

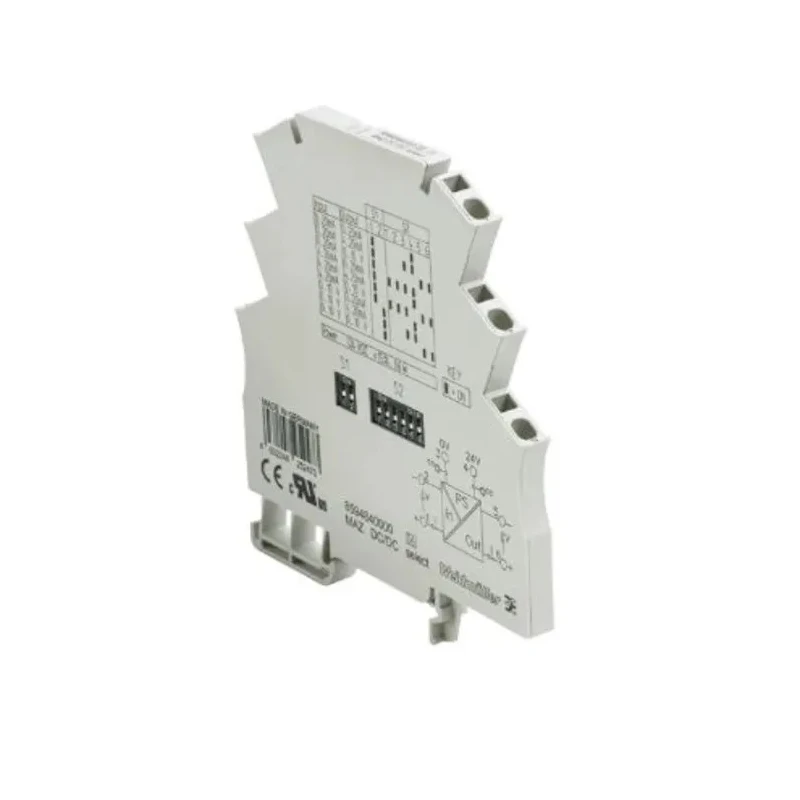

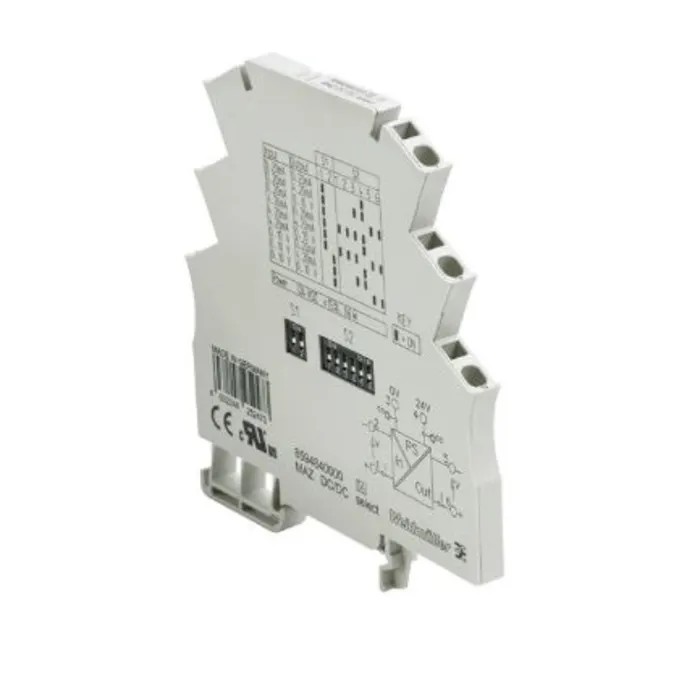

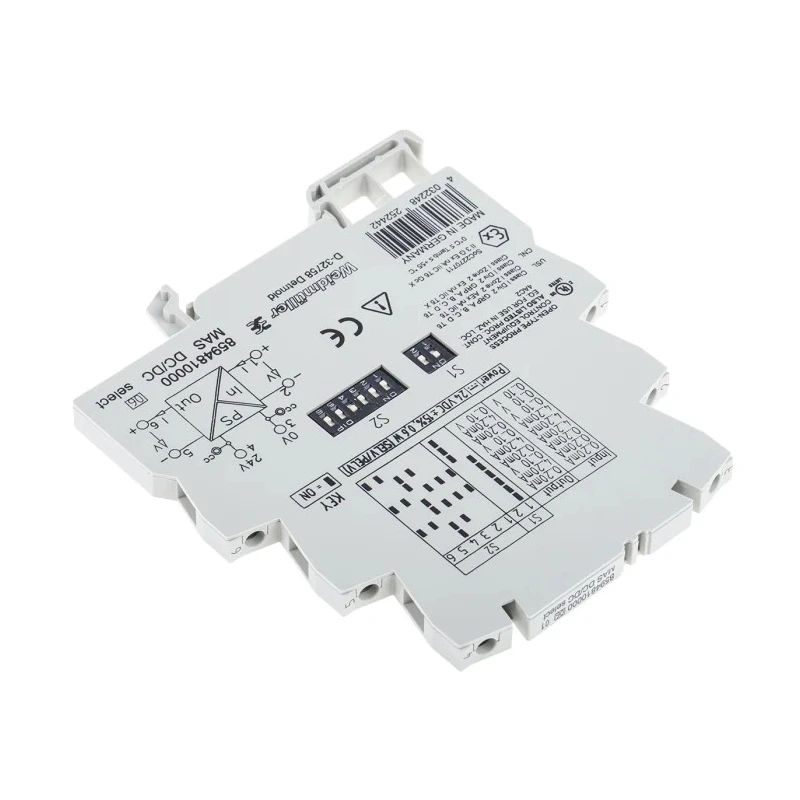

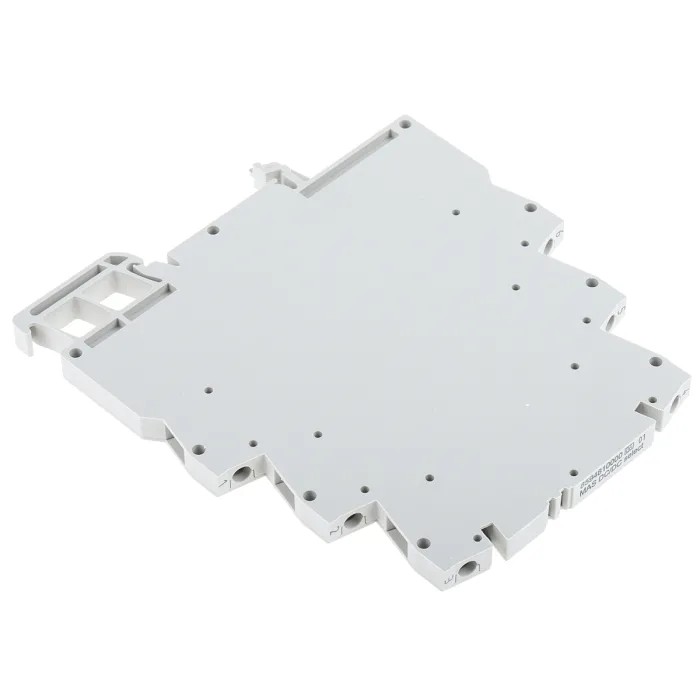

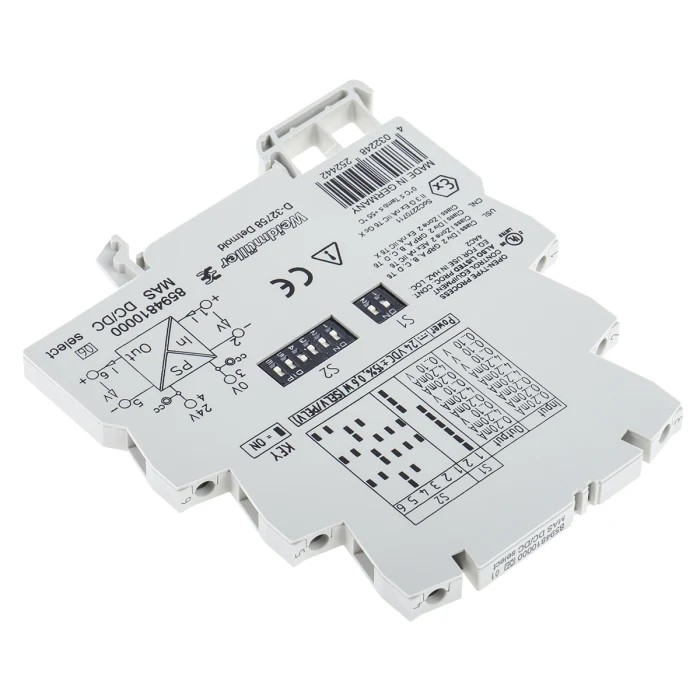

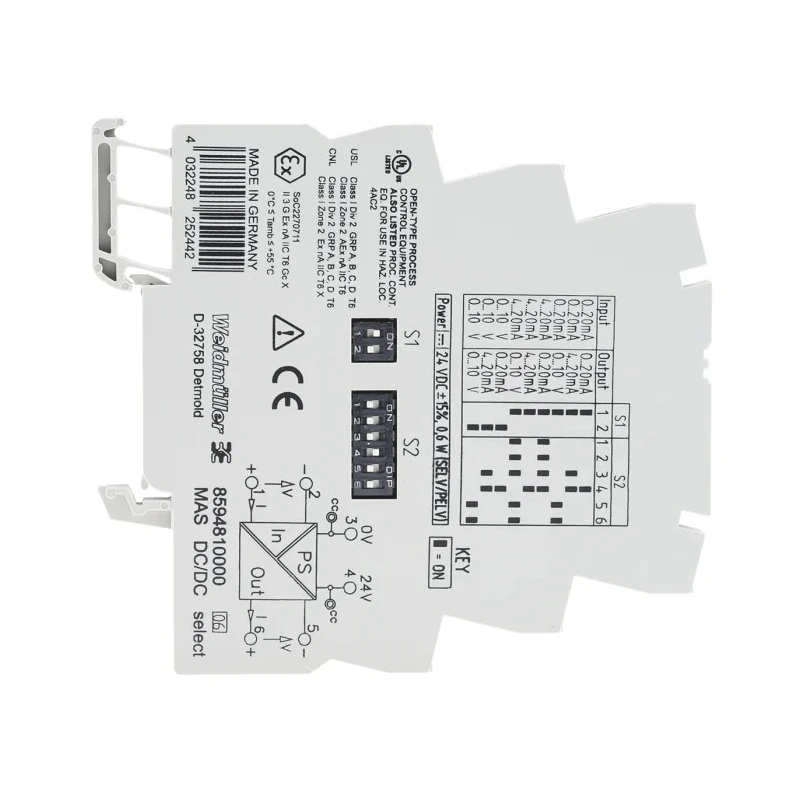

Weidmüller ACT20X Series Signal Conditioner, Current/Voltage Input, Current/Voltage Output, 24V DC Supply ACT20X
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Input, Current/Voltage Output, 24V dc Supply RS Stock No |
| Brand | Weidmüller |
| Model | ACT20X |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | ACT20X |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Terminal type | Screw |
| Output Range | 0 → 10 V |
| Input Range | 0 → 10 V |
| Supply Voltage | 24V dc |
| Input Signal Type | Current/Voltage |
| Standards/Approvals | DIN EN 61326, CE/cURus, EN 50178 |
| DIN rail DK6 minicoupler,4-20mA/4-20mABrand | Weidmuller |
Key Features
- Operates with an input range of 0 to 10 V and output range of 0 to 10 V for flexible signal conditioning.
- Supplied with 24V DC voltage ensuring compatibility with low-voltage systems.
- Compact dimensions of 88 mm length, 6.1 mm width, and 97.8 mm depth suit crowded installation spaces.
- Equipped with screw terminal connections for secure and reliable wiring.
- Wide operating temperature range from 0°C to 55°C suitable for demanding environmental conditions.
- DIN rail mount type enables easy integration into industrial control panels.
- Complies with DIN EN 61326, CE/cURus, EN 50178 standards ensuring safety and quality.
- Broad application scope including laboratory testing, food production, and automotive industry.
Product Description
Weidmüller ACT20X Series Signal Conditioner (Model ACT20X) operates at 24V DC supply voltage, accepting current and voltage input signals with matching output types. This compact device measures 88 mm in length, 6.1 mm wide, and 97.8 mm deep, designed for DIN rail mounting in industrial automation and control systems.
The unit supports input and output voltage ranges from 0 to 10 V, allowing precise sensor signal adaptation. Its robust design includes screw terminal connections for secure wiring and DIP switches enabling effortless input/output selection adjustment. The product features a cut-off frequency exceeding 100 Hz, ensuring reliable signal conditioning even in demanding environments.
Its operating temperature range from 0°C to 55°C, combined with an IP20 rating, makes it suitable for varied industrial applications such as laboratory testing facilities, food production lines, and automotive manufacturing plants. Additionally, this conditioner complies with key industry standards including DIN EN 61326, CE, cURus, and EN 50178, highlighting its quality and safety.
Operates on low 0.6W power consumption, promoting energy conservation. Compact form factor fitting tight spaces within control cabinets or panels. Input and output types configurable via DIP switches for versatile deployment.
Screw terminal connections facilitate durable and safe electrical installation. Diverse industrial applications ranging from laboratory to automotive sectors.
The Weidmüller ACT20X Series Signal Conditioner is engineered for reliability and precision in signal processing tasks essential to automation and machine control. Its combination of efficiency, compact design, and compliance with international standards makes it a dependable choice for engineers and industry professionals.
Explore more Signal Conditioners for advanced automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input range of 0 to 10 V and an output range of 0 to 10 V, allowing for flexible signal conditioning.
The ACT20X operates on a supply voltage of 24V DC, ensuring compatibility with low-voltage systems.
It has compact dimensions of 88 mm in length, 6.1 mm in width, and 97.8 mm in depth, making it suitable for installation in crowded spaces.
This unit is designed for DIN rail mounting, facilitating easy integration into industrial control panels.
The signal conditioner operates within a temperature range of 0°C to 55°C, suitable for various environmental conditions.
It features screw terminal connections, which provide secure and reliable wiring for electrical installation.
This model complies with DIN EN 61326, CE/cURus, and EN 50178 standards, ensuring quality and safety in its applications.
The unit has a low power consumption of 0.6W, promoting energy conservation during operation.
It accepts both current and voltage input signals, providing versatility for various applications.
This signal conditioner is suitable for a broad range of applications including laboratory testing, food production, and the automotive industry.
The signal conditioner features a cut-off frequency exceeding 100 Hz, ensuring reliable signal conditioning even in demanding environments.
Input and output types can be easily configured via DIP switches, allowing for versatile deployment in various setups.
