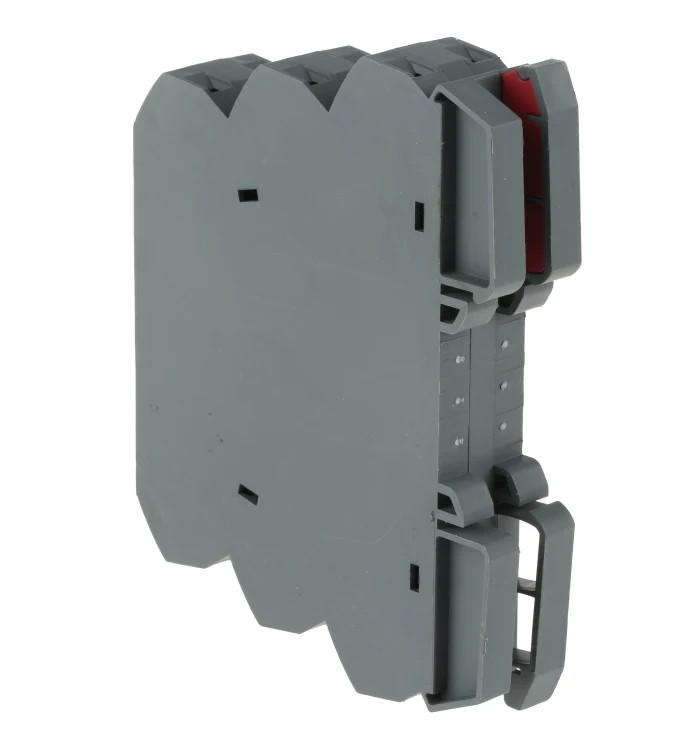

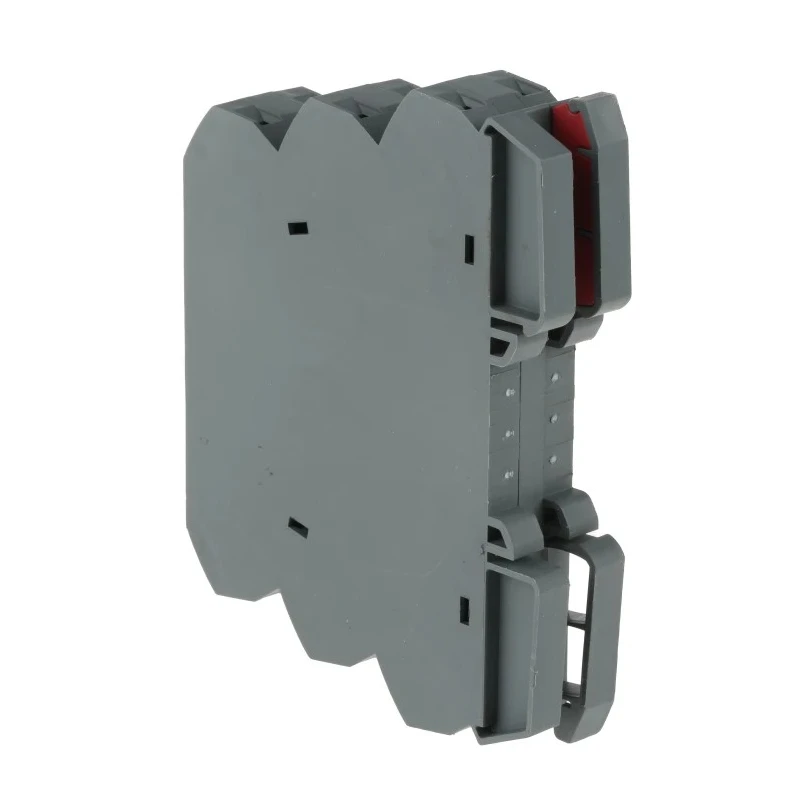

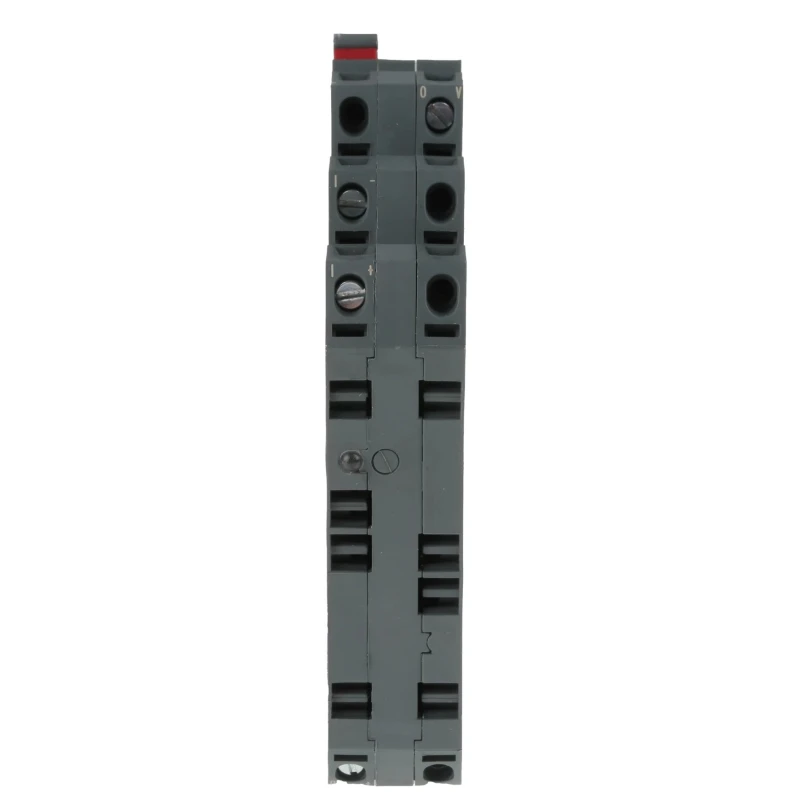

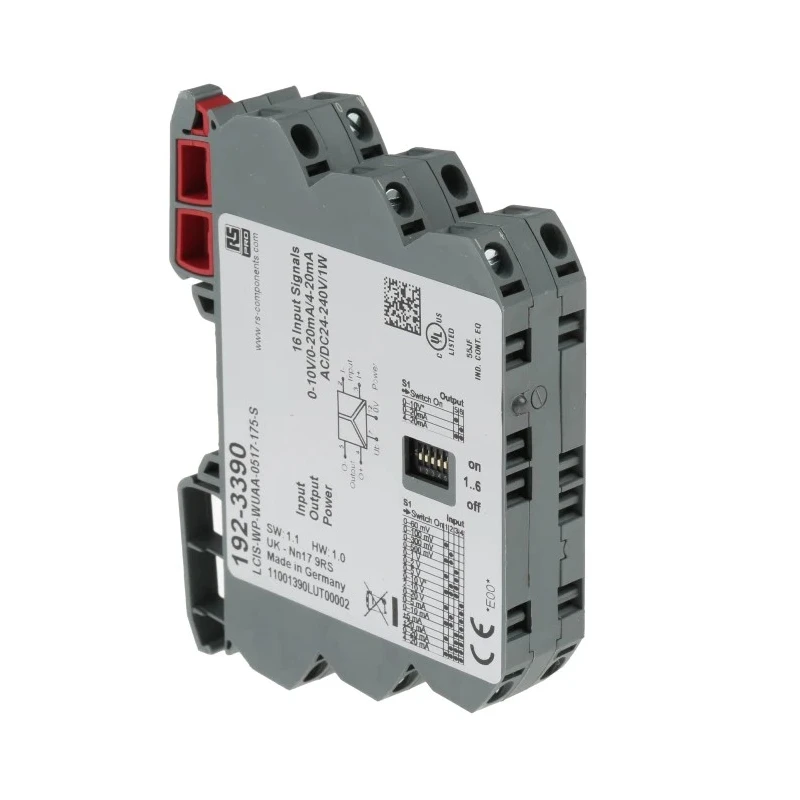

RS PRO LCIS-WP-WAA Series Signal Conditioner, Current/Voltage Input & Output, 24V AC/DC - 240V AC/DC, DIN Rail 192-3390

The RS PRO LCIS-WP-WAA Series Signal Conditioner, model 192-3390, is a high-performance module designed to convert and isolate current and voltage signals within industrial control systems. With support for both current and voltage as input and output signals, this conditioner is adaptable for a diverse array of automation, process control, and monitoring applications.

This unit features three-way isolation, ensuring accurate signal conversion while preventing interference and crosstalk between channels. Its supply voltage acceptance (24V AC/DC up to 240V AC/DC) provides flexibility for deployment across local and international installations, accommodating varying power standards.

Designed for DIN rail mounting, the LCIS-WP-WAA series integrates seamlessly into control cabinets, simplifying installation and maintenance. Users benefit from a wide operating temperature range (-25°C to +60°C) that guarantees performance under demanding environmental conditions commonly found in industrial environments.

Outputs include 0 to 10 V voltage and 0 to 20 mA current, covering prevalent analog signal standards for automation and monitoring equipment. Additional outputs such as 4 to 20 mA and varied input ranges (0 to 1 V, 0 to 60 mV, ±5 mA, ±20 mA) further extend its versatility, making it ideal for process instrumentation, building management systems, and laboratory automation.

The touch-proof IP20-rated enclosure promotes safety by mitigating risks of accidental damage or contact with internal parts. Screw terminals provide robust and straightforward wiring solutions, supporting stable electrical connections in rugged environments.

Indicator LED for operating status simplifies troubleshooting and operational monitoring, especially in low-light or remote scenarios.

Engineered with compliance to cULus (E135145), DNV GL, and EN 60947-5-1 standards, the conditioner ensures technical reliability and adherence to international quality benchmarks as required by industrial, manufacturing, and laboratory sectors.

Industrial use cases include process automation, signal transfer in PLC cabinets, HVAC system monitoring, laboratory analog signal conversion, and facility equipment integration. Its compact footprint allows installation even in densely populated control panels.
