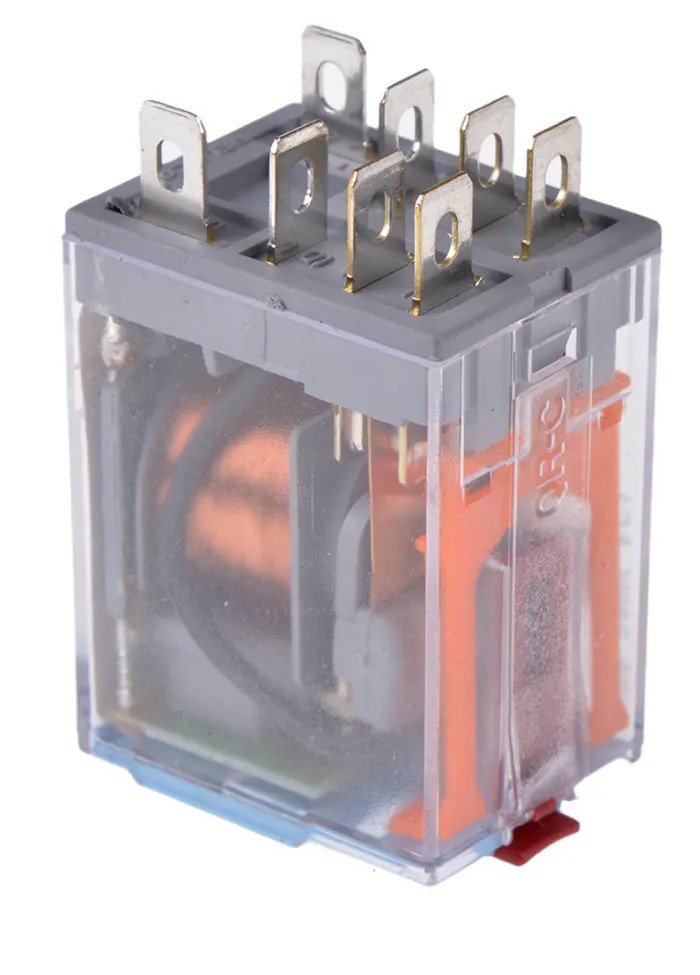

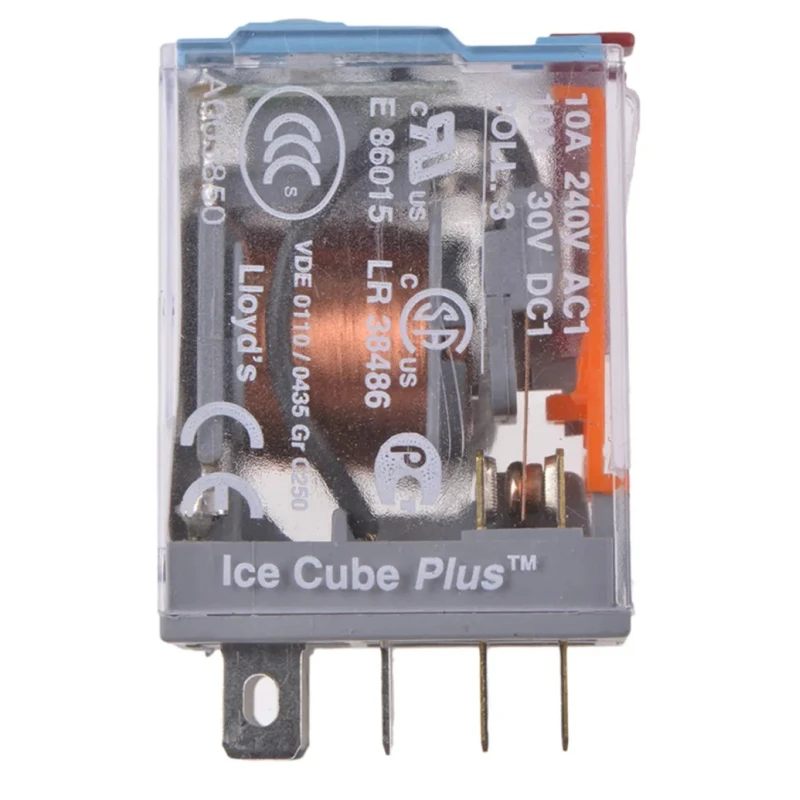

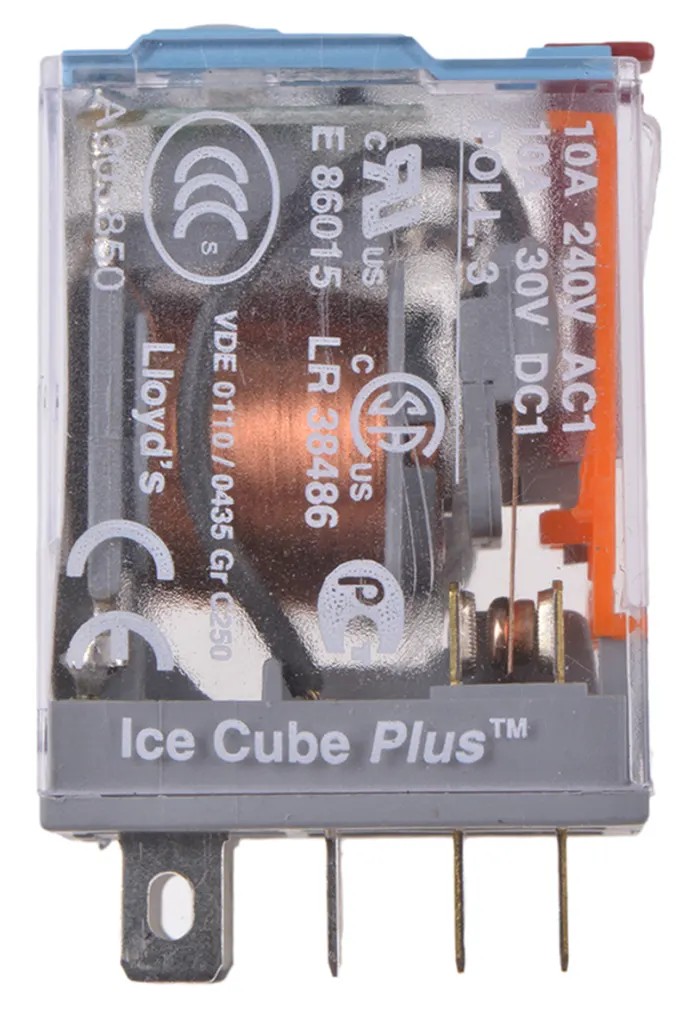

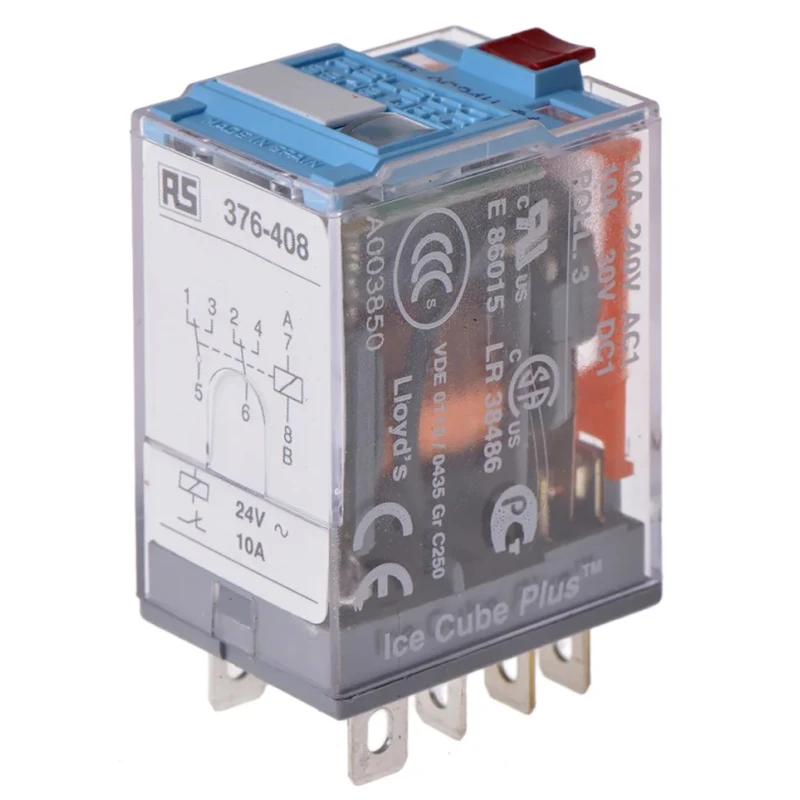

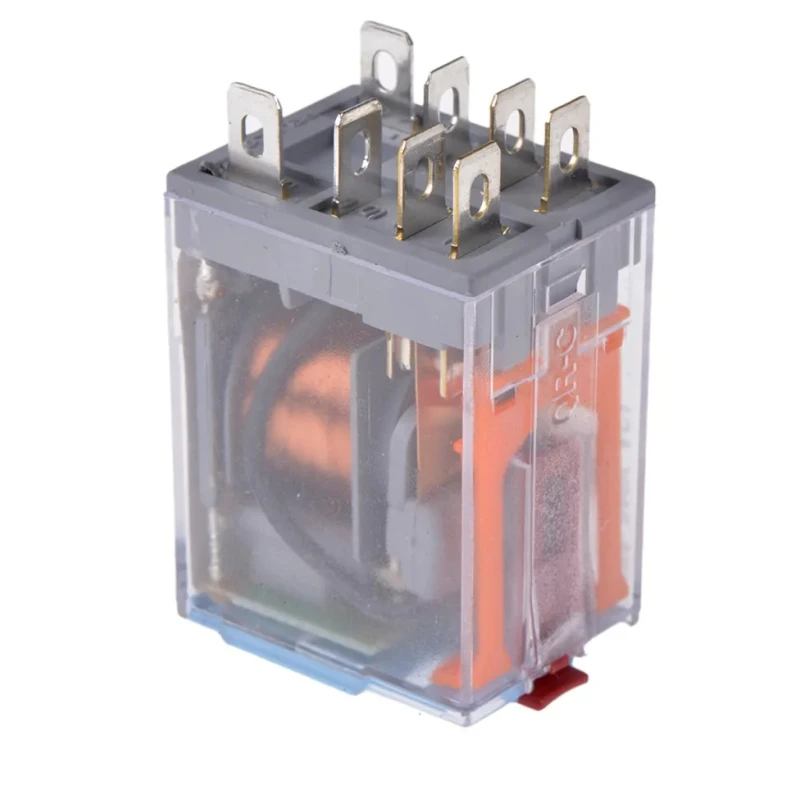

Releco PCB Power Relay 24V AC Coil 10A Switching Current DPDT C7-A20X / AC 24 V

Releco C7-A20X / AC 24 V PCB Power Relay is a specialized industrial-grade relay designed for PCB mounting applications requiring reliable switching performance. Operating on a coil voltage of 24V AC, it supports a switching current of 10A with a DPDT (Double Pole Double Throw) contact configuration, making it suitable for complex switching circuits in industrial automation and electrical control systems.

The relay features quick connect terminals for ease of installation and efficient wiring on printed circuit boards. It utilizes silver alloy contacts to provide excellent conductivity and long service life under electrical load. The coil power consumption is 1.5W, with a coil resistance of 174Ω, ensuring optimal power efficiency.

Operational temperature range from -40°C to +60°C allows it to perform reliably in harsh industrial and commercial environments. Its compact design with a length of 28mm makes it suitable for use where PCB space is limited. The relay includes a test button that is dual-functional (push to test or lift to latch), an LED indicator, and a mechanical flag indicator, enhancing diagnostic and operational feedback.

This relay complies with international safety and environmental standards including CSA, EN, IEC, RoHS, and UL, offering assurance of quality and regulatory conformance. It is commonly used in electronic equipment, automation control panels, and power relay applications where precise and safe switching is essential.

Designed for PCB mounting with quick connect terminals ensuring secure installation. DPDT contact configuration providing double pole double throw switching for versatile applications. Operates reliably with coil voltage of 24V AC and coil power consumption of 1.5W.

Switching current rated at 10A with maximum switching AC voltage of 240V AC. Features silver alloy contact material for enhanced conductivity and durability. Includes mechanical flag indicator, test button with LED indication, and removable marking label for ease of use.

Operable temperature range between -40°C and +60°C suitable for diverse industrial environments. Compact length of 28 mm suitable for use in tight PCB layouts. Conforms to CSA, EN, IEC, RoHS, and UL standards ensuring compliance and safety.

This Releco power relay is ideal for use in electrical automation, control systems, power distribution units, industrial machinery, and instrumentation requiring reliable and compact relay solutions. It supports efficient and safe signal switching in commercial and industrial equipment. Browse EnvMart categories for Power Relays and Relays & Contactors for compatible products and accessories.
