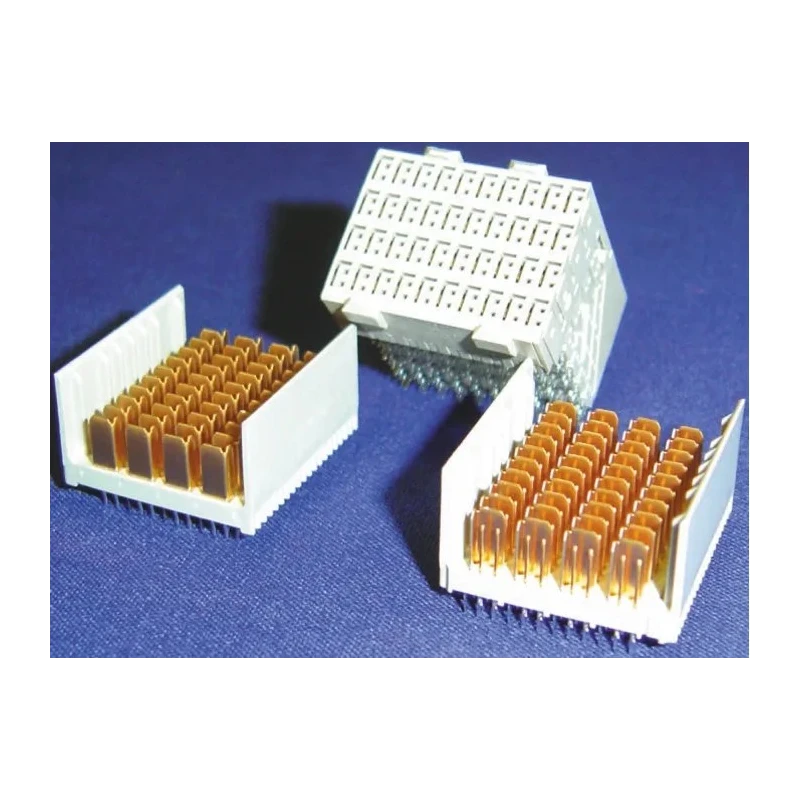

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector Right Angle Female 10 Column 4 Row 40 Way 1469028-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Nickel Silicon |
| Series | Z-PACK HM-Zd |
| Termination Type | Press Fit |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 4 |
| Number of columns | 10 |
| Pitch | 2.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Operates at voltages up to 250V for reliable electronic connections.
- Current rated at 7A, suitable for industrial applications.
- Housing made of durable Polyethylene Terephthalate for robust performance.
- Press fit termination type supports through hole mounting technology.
- Contact material is Copper Nickel Silicon with gold over nickel plating for excellent conductivity.
- Designed for operating temperature range from -65°C to 105°C.
- Connector series is Z-PACK HM-Zd, complying with PICMG 3.x (ATCA) standard.
- High-speed differential connector ideal for board-to-backplane use up to 6.4 Gb/s.
Product Description
TE Connectivity 1469028-1 Backplane Connector is a Z-PACK HM-Zd series connector featuring a 2.5 mm pitch, right angle female orientation with 10 columns and 4 rows, providing a total of 40 contacts. Designed for reliable high-speed board-to-backplane connections, it supports voltages up to 250V and a current rating of 7A, making it suitable for demanding electronic and industrial environments.
The housing is made from robust Polyethylene Terephthalate material, ensuring durability and mechanical stability. The connector uses press fit termination technology for secure through hole mounting to PCBs, while the contacts are constructed from Copper Nickel Silicon with a gold over nickel plating to guarantee excellent conductivity and corrosion resistance.
Operating temperatures range from -65°C to 105°C, allowing use in a wide array of environments. The Z-PACK HM-Zd series is an industry standard in PICMG 3.x (ATCA), offering a high-speed differential solution for applications requiring data rates between 3 and 6.4 Gb/s. It extends the IEC61076-4-101 specification to provide dependable and efficient connections in backplane systems.
This connector is ideal for industrial, manufacturing, electronic assembly, and telecommunications equipment applications where reliable and high-performance backplane connections are essential. It is supplied in a tube ready for insertion into machinery, enhancing production efficiency.
Operates at voltages up to 250V for reliable electronic connections. Current rated at 7A, suitable for industrial applications. Housing made of durable Polyethylene Terephthalate for robust performance. Press fit termination type supports through hole mounting technology.
Contact material is Copper Nickel Silicon with gold over nickel plating for excellent conductivity. Designed for operating temperature range from -65°C to 105°C. Connector series is Z-PACK HM-Zd, complying with PICMG 3.x (ATCA) standard.
High-speed differential connector ideal for board-to-backplane use up to 6.4 Gb/s. Constructed to IEC61076-4-101 standard for reliable backplane connections. Manufactured in China with stringent quality controls. Explore more TE Connectivity Backplane Connectors on EnvMart for advanced industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at voltages up to 250V, making it suitable for reliable electronic connections in various applications.
This model has a current rating of 7A, suitable for industrial applications.
The connector features a pitch size of 2.5 mm, allowing for efficient space management on PCBs.
The contacts are made from Copper Nickel Silicon with gold over nickel plating, ensuring excellent conductivity and corrosion resistance.
It is designed for an operating temperature range from -65°C to 105°C, suitable for diverse environmental conditions.
This backplane connector has a total of 40 contacts, organized in 10 columns and 4 rows.
It utilizes a press fit termination type, which supports through hole mounting technology for secure connections.
The connector complies with the PICMG 3.x (ATCA) standard, ensuring compatibility with industry requirements.
It features a right angle orientation, which is beneficial for space-constrained applications.
The housing is made of durable Polyethylene Terephthalate, providing mechanical stability and robustness.
This connector is ideal for industrial, manufacturing, electronic assembly, and telecommunications equipment applications.
It is manufactured in China, adhering to stringent quality controls during production.
