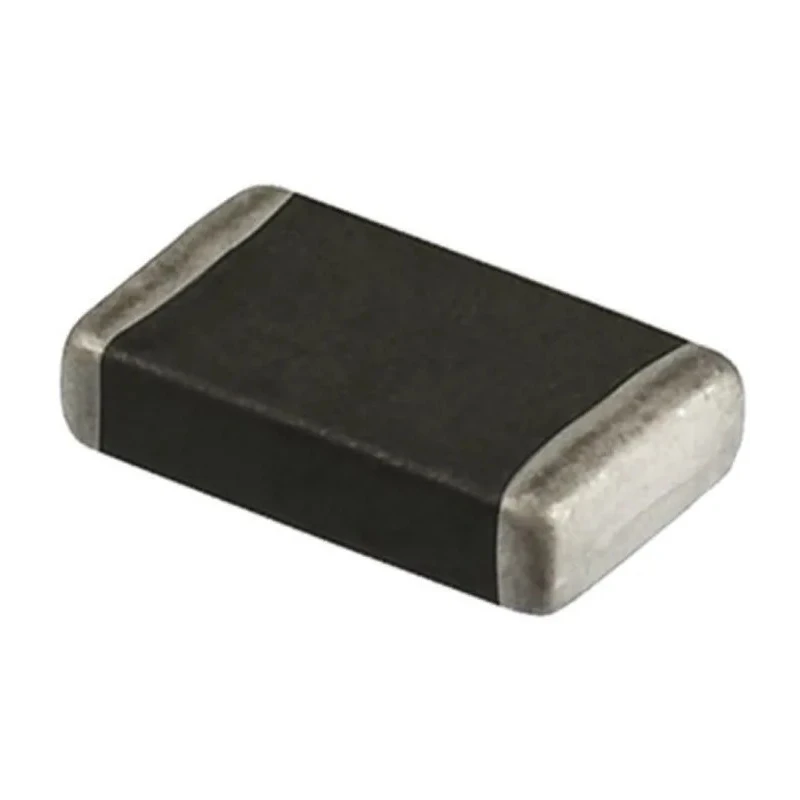

Wurth Elektronik SMD Power Varistor WE-VS, 100 pF, 1 A Clamping Current, 38 V Clamping Voltage, 18 V Varistor 82536110

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik SMD Power Varistor WE-VS, 100 pF, 1 A Clamping Current, 38 V Clamping Voltage, 18 V Varistor 82536110

Name: Wurth Elektronik SMD Power Varistor WE-VS, 100 pF, 1 A Clamping Current, 38 V Clamping Voltage, 18 V Varistor 82536110
Brand: Wurth Elektronik
SKU: 205705
Price: 1.11 USD
Availability: InStock



Category Clamp Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
THICKNESS	0.9mm
Length	1.6mm
Model	82536110
Depth	0.8mm
Packaging	Reel
Mount Type	Surface
Series	WE-VS
Energy Rating	0.1J
Maximum Operating Temperature	85°C
Capacitance	100pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	14V dc
Standards/Approvals	IEC 61000-4-5
Package/Case	0603
Termination Style	Silver/Nickel/Tin
Maximum AC Voltage	11V ac
Clamping Voltage VC	38V
Clamping Current	1A
Maximum Surge Current	38A
Varistor Voltage	18 V

Key Features

Varistor voltage rating is 18 V.
Clamping voltage is 38 V providing effective surge protection.
Package is 0603 size suitable for compact PCB designs.
Operating temperature ranges from -40 °C to +85 °C ensuring reliability in harsh environments.
Constructed with a silver, nickel, and tin termination style for excellent solderability.
Energy rating of 0.1 J for transient absorption.
Complies with IEC 61000-4-5 surge protection standards.
Designed for SMD power applications offering excellent absorption with immediate return to normal operation after surge impulses.

Product Description

Wurth Elektronik 82536110 is a high-quality SMD power varistor from the WE-VS series designed for effective surge protection in electronic circuits.

This varistor has a capacitance of 100 pF, a clamping voltage of 38 V, and a varistor voltage of 18 V, making it suitable for protecting sensitive components against transient voltage spikes and surges.

Its compact 0603 package size (length 1.6 mm, thickness 0.9 mm, depth 0.8 mm) makes it ideal for space-constrained PCB layouts with surface mount mounting style, coupled with silver/nickel/tin termination for reliable soldering.

The device operates reliably over a temperature range from -40 °C to +85 °C, ensuring robustness in diverse environmental conditions.

With an energy rating of 0.1 J and maximum surge current of 38 A, this varistor effectively absorbs transient energy and returns promptly to normal operating mode without slip currents, thus protecting circuits from damage.

It conforms to IEC 61000-4-5 standards for surge protection and IEC 61000-4-2 for ESD protection, assuring high reliability in industrial, electronics manufacturing, and telecommunications applications.

The product is supplied on reels for efficient automated assembly and is manufactured in Taiwan, Province Of China.

This varistor is recommended for use in industrial electronics, power supply protection, telecommunications equipment, and any system requiring effective transient voltage suppression.

Varistor voltage rating is 18 V. Clamping voltage is 38 V. Capacitance of 100 pF suitable for high-speed circuits. Maximum Clamping current of 1 A. Surface mount package size 0603. Operating temperature -40 °C to +85 °C.

Energy rating 0.1 J for transient absorption. Termination style Silver/Nickel/Tin ensuring solderability. Compliance with IEC 61000-4-5 surge protection standard. Manufactured in Taiwan, Province Of China. Explore more in the Varistor category at EnvMart to find compatible surge protection components for your projects and applications.
