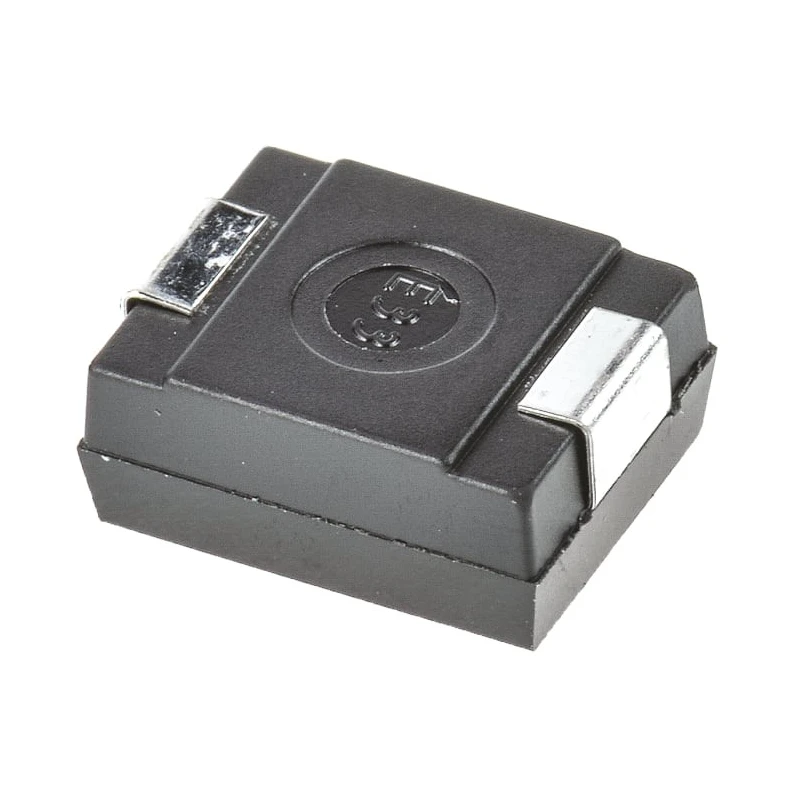

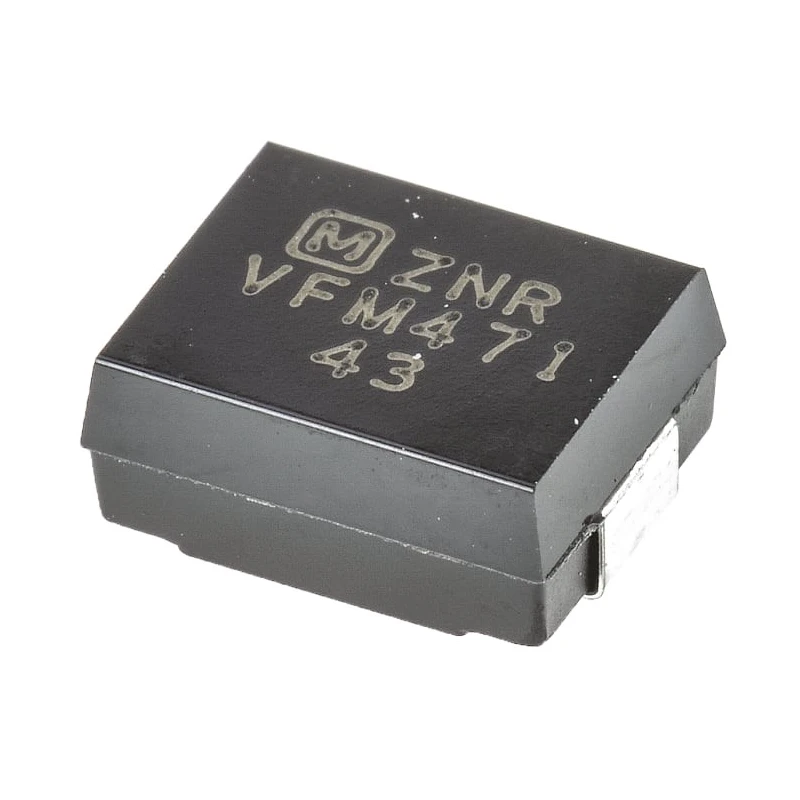

Panasonic VF Surge Absorber, Surface Mount, 10 A Clamping Current, 775 V Clamping Voltage, 300V AC, 385V DC, 10J ERZVF2M471

Panasonic ERZVF2M471 VF Surge Absorber is a surface mount Zinc-oxide Non-Linear Resistor (ZNR) designed to protect electronic components by absorbing surge currents effectively. Operating with a clamping current of 10 A and a clamping voltage of 775 V, this component withstands surge currents up to 300 A and supports maximum AC voltage of 300 V and DC voltage of 385 V. It features a protective coating and a compact size of 8 mm length, 3.2 mm height, and 6 mm depth that facilitates space-saving integration onto circuit boards.

Designed for flow and reflow soldering, the VF series surge absorbers provide low clamping voltage and high withstanding surge current capabilities, helping protect sensitive electronics from transient voltage spikes. These devices are part of Panasonic's Zinc-oxide Non-Linear Resistor (ZNR) range and serve as an economical and space-efficient alternative to back-to-back Zener diodes and parallel capacitors.

Typical applications include absorption of switching surges from relays and protection of consumer and industrial electronic equipment, especially communication modules such as terminal adapters, modems, and xDSL technology. The product complies with CQC and RoHS certifications and is rated for energy absorption of 10 joules with a maximum operating temperature of 85°C. It is manufactured in Japan ensuring high quality and reliability.

Designed for flow and reflow soldering processes. Features low Clamping voltage and large surge current capability. Compact size with dimensions of 8 mm length, 3.2 mm height, and 6 mm depth. Energy rating of 10 joules for effective surge absorption.

Approved to CQC and RoHS standards with a maximum operating temperature of 85°C. Ideal for protecting consumer and industrial electronics, including communication modules and xDSL technology. Effective in absorbing switching surges from relays and industrial equipment.
