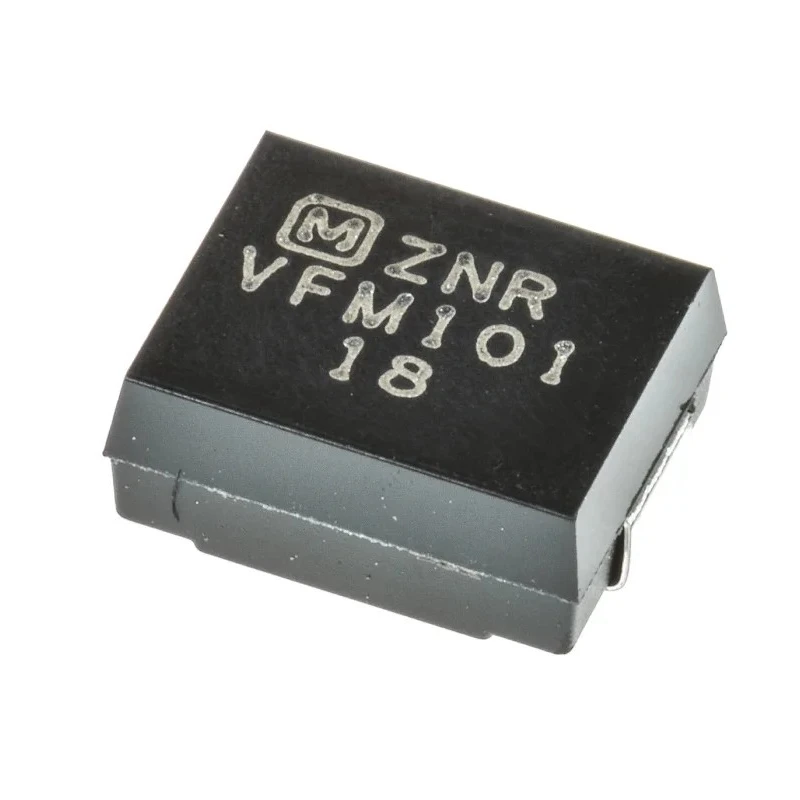

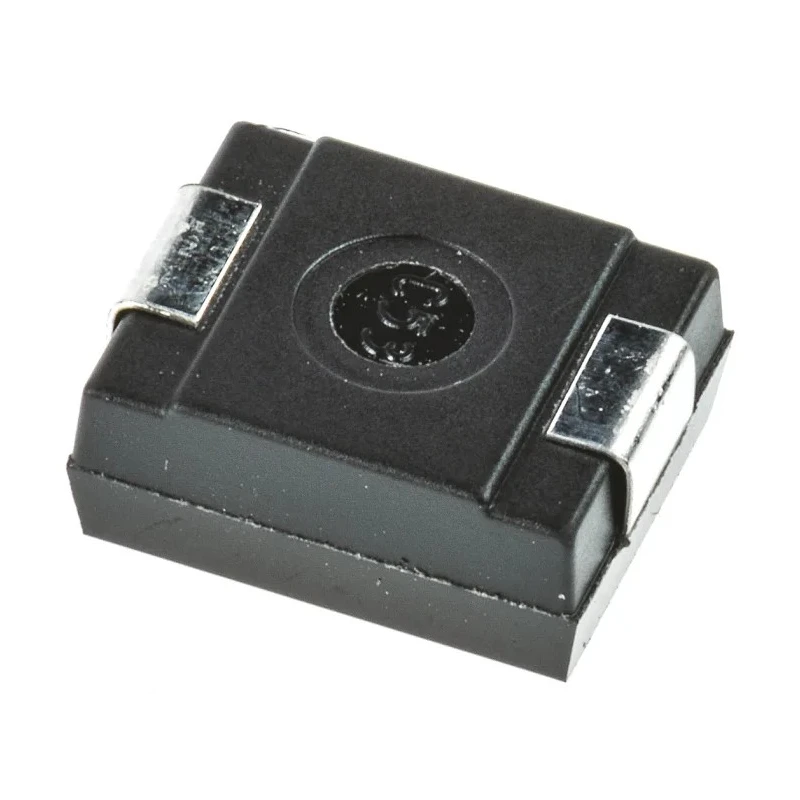

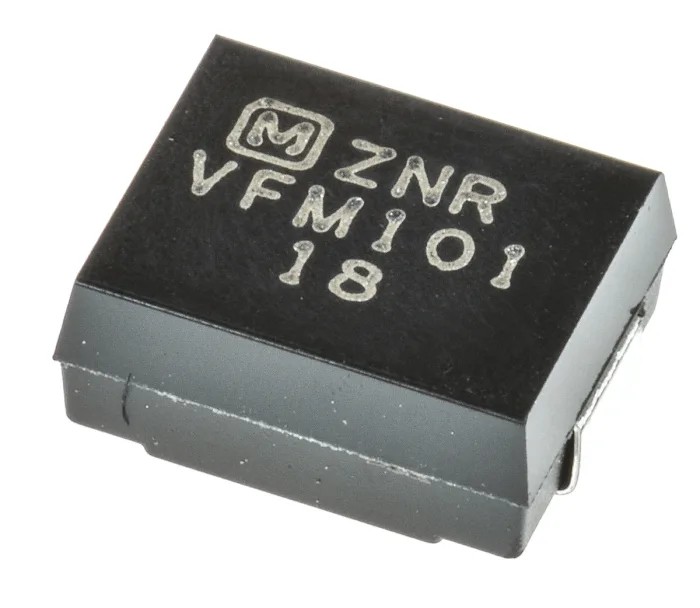

Panasonic VF Surge Absorber Surface Mount, 10 A Clamping Current, 165 V Clamping Voltage ERZVF2M101
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3.2mm |
| Length | 8mm |
| Model | ERZVF2M101 |
| Depth | 6mm |
| Mount Type | Surface |
| Series | VF |
| Energy Rating | 4J |
| Maximum Operating Temperature | 85°C |
| Maximum dc Voltage | 85V dc |
| Standards/Approvals | RoHS, CQC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 721-0071PBrand: PanasonicManufacturers Part No.: ERZVF2M101 |
| Maximum AC Voltage | 60V ac |
| Clamping Voltage VC | 165V |
| Clamping Current | 10A |
| Maximum Surge Current | 600A |
Key Features
- Features low clamping voltage for efficient surge absorption.
- Withstands a maximum surge current of 600 A for robust protection.
- Compact dimensions of 8mm length, 3.2mm height, and 6mm depth suit space-constrained designs.
- Suitable for various consumer and industrial electronic equipment protection.
- Operates reliably up to 85°C maximum temperature.
- Complies with RoHS and CQC standards ensuring quality and safety.
- Manufactured in Japan ensuring high-quality material and construction.
- Ideal for protecting communication modules such as modems and xDSL technology.
Product Description
Panasonic ERZVF2M101 VF Surge Absorber is a high-performance metal oxide varistor (MOV) designed specifically for surface mounting. It features a clamping voltage of 165 V and a clamping current capacity of 10 A, making it suitable for protecting sensitive electronic components from transient surges caused by switching and electrical disturbances.
These compact surge absorbers measure 8mm in length, 3.2mm in height, and 6mm in depth, effectively saving board space without sacrificing protective capability. They operate reliably up to a maximum temperature of 85°C and adhere to important quality standards such as RoHS and CQC.
The high surge current tolerance of 600 A enables these absorbers to safeguard consumer electronics, industrial equipment, and communication modules including terminal adapters, modems, and xDSL technology. Their zinc-oxide non-linear resistor (ZNR) structure combines the functions equivalent to back-to-back Zener diodes and parallel capacitors, enhancing cost-efficiency and performance.
Low Clamping voltage for efficient surge suppression. High surge current capability up to 600 A. Compact surface mount package for space saving. Maximum operating temperature of 85°C ensures durability. 4J energy rating suitable for transient surge absorption.
Meets RoHS and CQC standards for environmental and safety compliance. Designed for communication equipment and industrial electronics protection. Japanese origin ensures superior manufacturing quality.
This surge absorber is an essential component in electronic assemblies where effective protection against voltage spikes is critical. It's widely applicable in industrial automation, HVAC controls, telecommunications, and consumer electronics manufacturing. Explore more surge protection components with confidence through EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 165 V, which allows for efficient surge absorption.
It can withstand a maximum surge current of 600 A, providing robust protection for electronic components.
This model has compact dimensions of 8 mm in length, 3.2 mm in height, and 6 mm in depth, making it suitable for space-constrained designs.
The maximum operating temperature for this surge absorber is 85°C, ensuring reliable operation under various conditions.
It complies with RoHS and CQC standards, ensuring quality and safety in its application.
The energy rating of this model is 4J, suitable for transient surge absorption.
This model is designed for surface mounting, making it easy to integrate into electronic assemblies.
The maximum DC voltage rating is 85V, which is important for ensuring compatibility with various electronic systems.
It is suitable for protecting various consumer and industrial electronic equipment, including communication modules like modems and xDSL technology.
The maximum AC voltage rating is 60V, ensuring it can handle typical voltage levels in electronic applications.
While specific materials are not detailed, it features a zinc-oxide non-linear resistor (ZNR) structure, enhancing its performance.
It is manufactured in Japan, ensuring high-quality material and construction standards.
