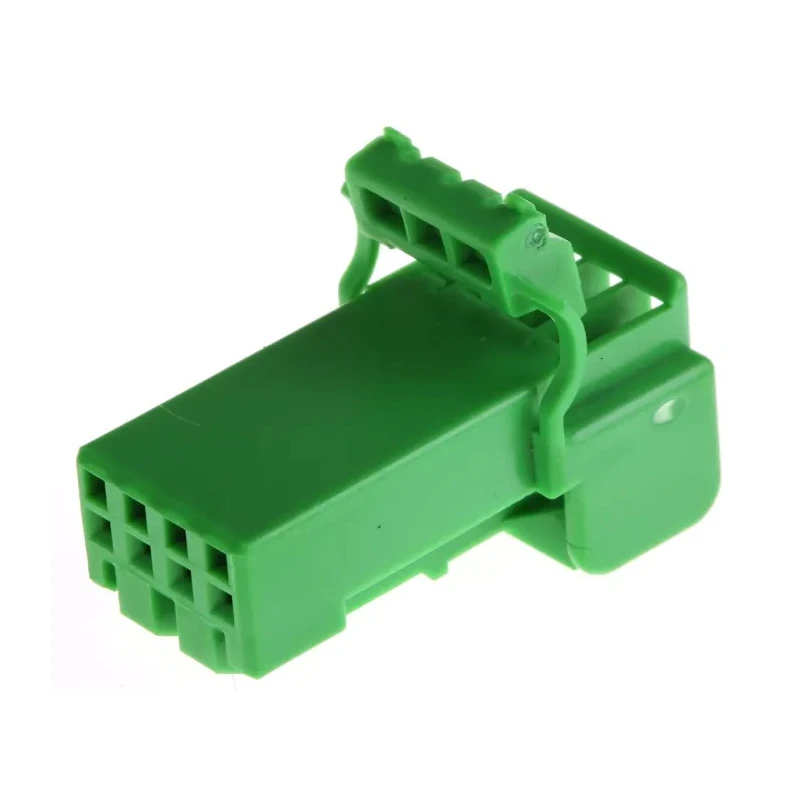

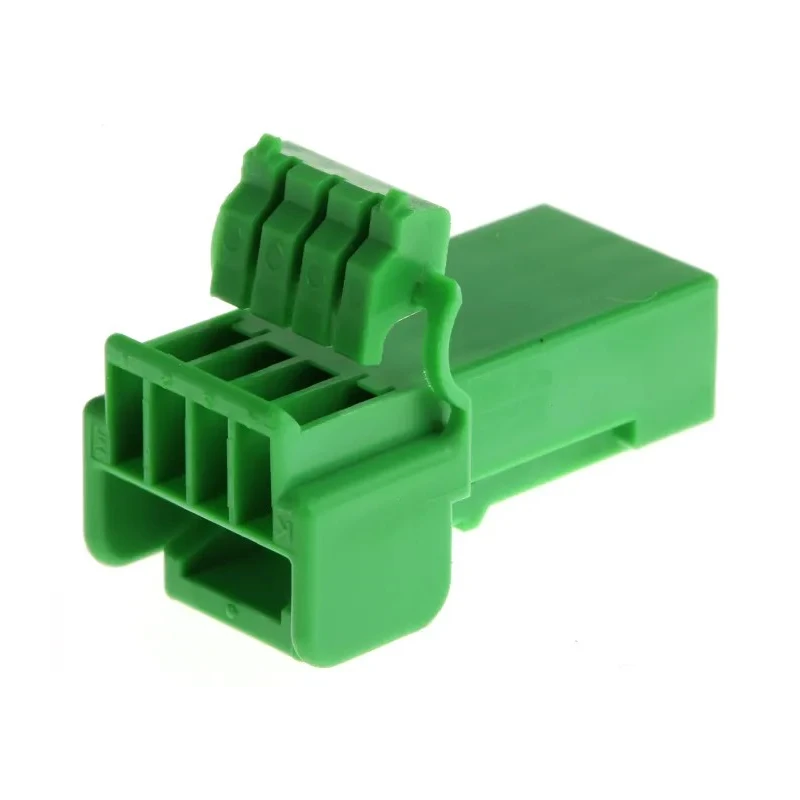

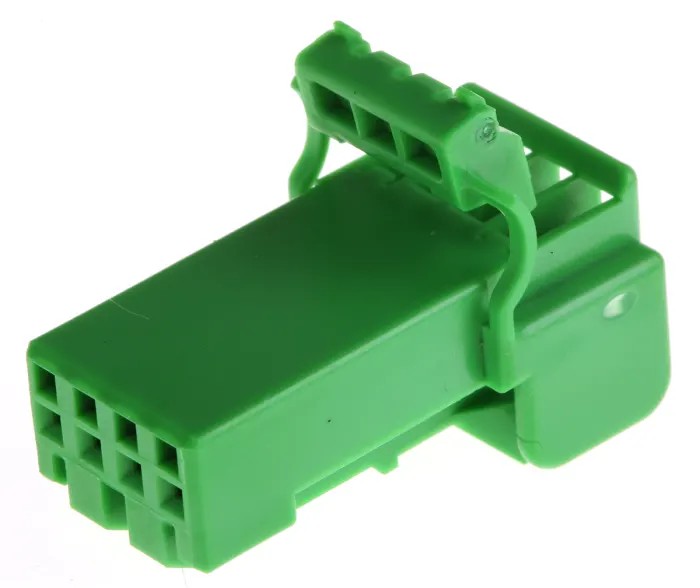

JAE Automotive Connector Female Green Cable 4 Way Crimp Termination IL-AG5-4S-S3C1

JAE IL-AG5-4S-S3C1 Automotive Connector is a female green cable connector designed for automotive instrument panel use. It features a 4 way crimp termination and is part of the IL-AG5 series of automotive connectors.

This connector includes a socket housing with four contacts arranged in four rows. The crimp termination type provides reliable cable mounting suitable for use in automotive electrical systems where secure and robust connections are critical.

The housing is made from Polybutylene Terephthalate, a durable material resistant to automotive environments. Contacts are plated with tin ensuring good electrical conductivity and corrosion resistance.

It can handle electrical currents up to 3A with an operational temperature range of -40°C to 85°C, making it suitable for harsh automotive conditions. Mechanical locking features prevent contact dislodgement and assure positive mating.

Socket housing with 4 contacts and mechanical lock for reliable connections. Crimp termination supports efficient cable mounting. Polybutylene Terephthalate housing ensures durability. Tinned contact plating for corrosion resistance.

Wide operating temperature range from -40°C to 85°C. Compact form factor: 12.8mm height, 13.6mm width, 24.6mm depth. Green colour coding aids in connector identification.

This automotive connector is ideal for various applications including industrial, automotive manufacturing, and repair settings where secure electrical connections are mandatory. Its design optimizes installation efficiency and ensures high reliability in automotive electrical circuits.
